The car passes point A with a speed of 25 m/s after which its speed is...

Question

Question

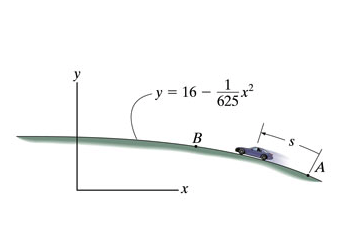

The car passes point A with a speed of 25 m/s after which its speed is defined by v = (25-0.15s) m/s.

y=16-r 625

Determine the magnitude of the car's acceleration when it reaches point B, where s = 51.5 m and x = 50 m.

engineering Mechanical-Engineering

Answer 1

✔ Recommended Answer

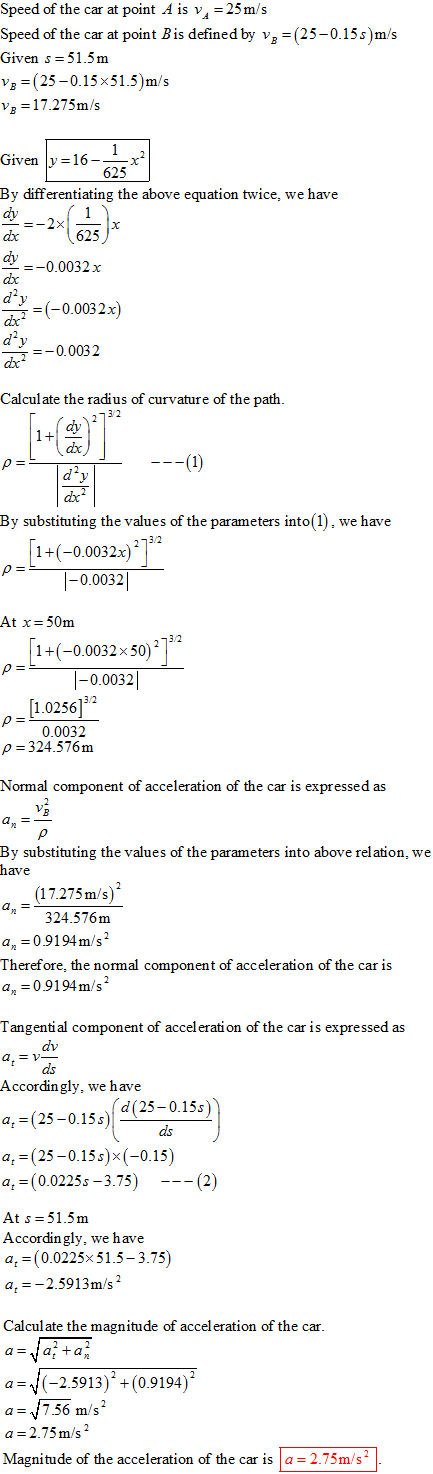

Answer #1

Answer 2
