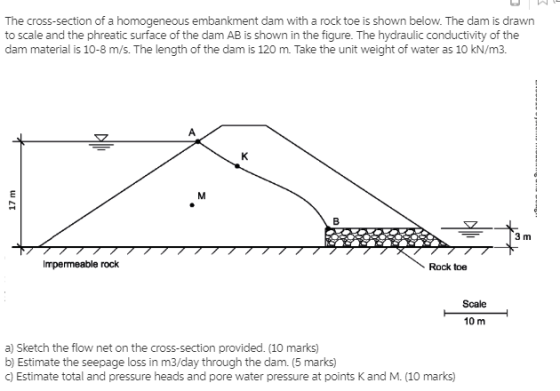

Would be really appreciate if someone can show me how to do this question step-by-step in details
Thank you

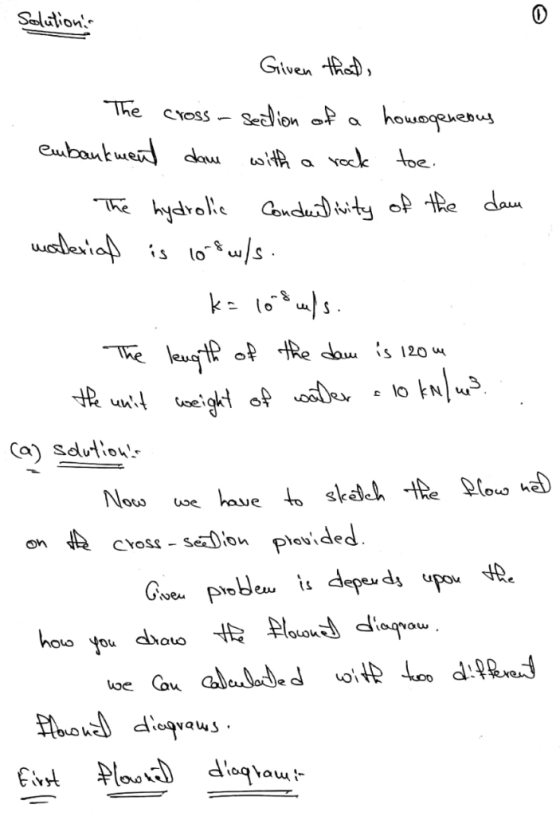

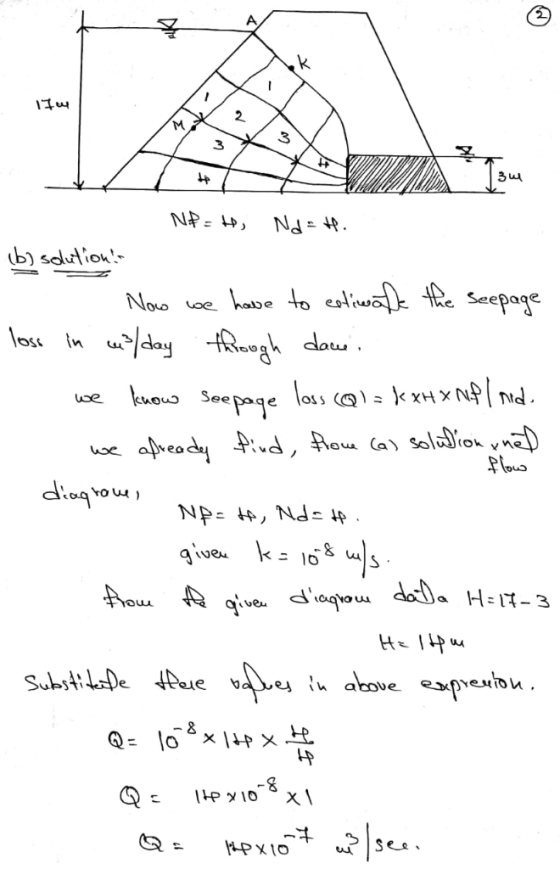

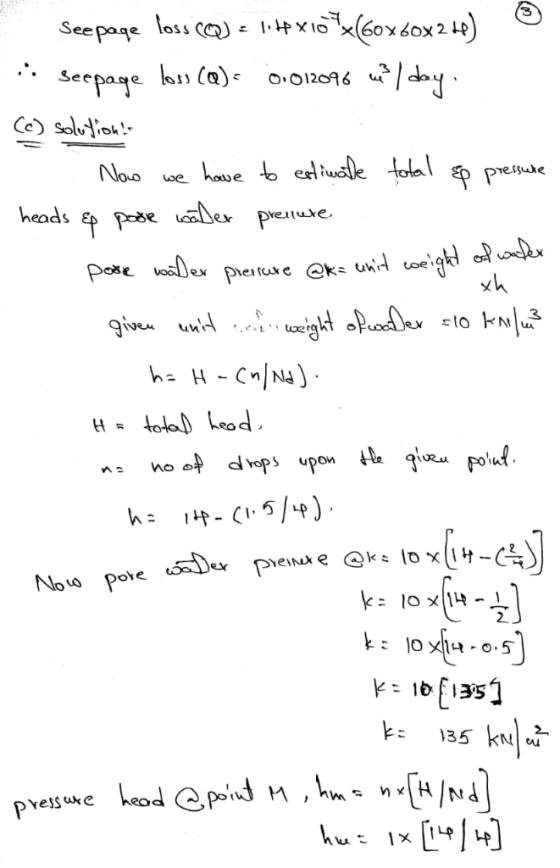

Homework Answers

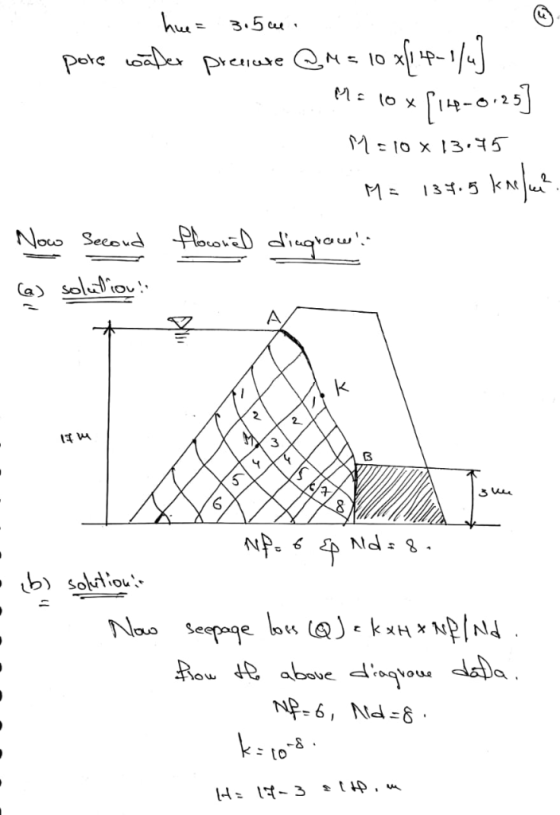

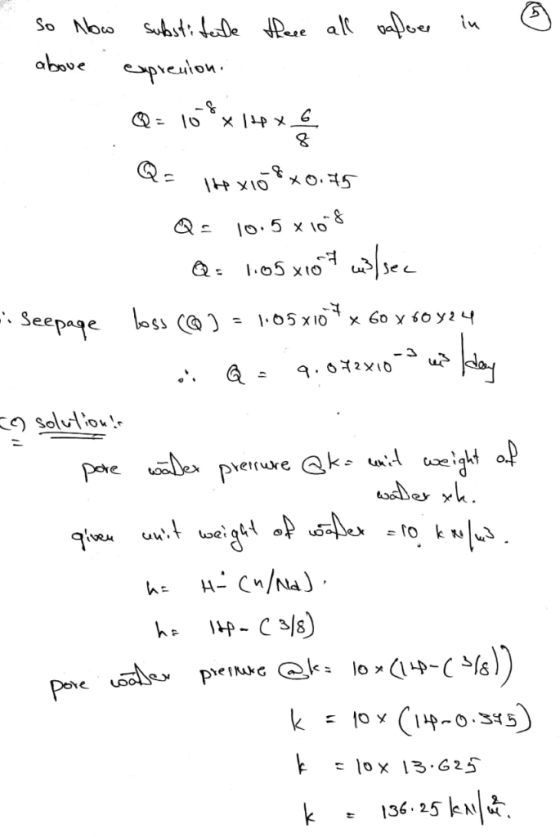

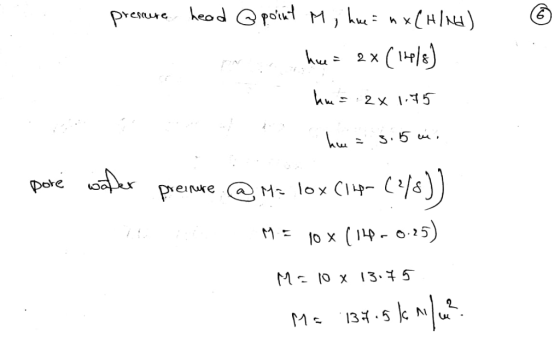

![h 3.5au Pote Penuse @t N 10 T14-:25] M10 x 13.5 M 13.5 Now Secovd PlouarzD dliugrow Ca) soluou A 5 - bı soliiou Naw X Rou ab](http://img.homeworklib.com/images/1b0ee3d0-f50f-45c8-aa06-05dd91bcb078.png?x-oss-process=image/resize,w_560)
