Add Answer to:
I want solving process 4.3 Shear Forces and Bending Moments Introductory Problems 4.3-1) Calculate the shear...
To determine the reactive forces and moments acting on a beam;express the shear and bending...
To determine the reactive forces and moments acting on a beam;
express the shear and bending moment as functions of their
positions along the beam; and construct shear and bending moment
diagrams. The cantilever beam shown is subjected to a moment at A
and a distributed load that acts over segment BC, and is fixed at
C. Determine the reactions at the support located at C. Then write
expressions for shear and bending moment as a function of their
positions...
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown.
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Label all significant points on each diagram and identify the maximum moments along with their respective locations. For all answers entered, use the sign convention for shear forces and bending moments. (a) Find the location x and the corresponding bending moment M at the one point between A and B at which the shear force equals zero. (b) Consider the entire beam and determine the maximum positive...
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Label...
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Label all significant points on each diagram and identify the maximum moments along with their respective locations. For all answers entered, use the sign convention for shear forces and bending moments (a) Find the location x and the corresponding bending moment M at the one point between A and D at which the shear force equals zero. (b) Consider the entire beam and determine the...
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Label...
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Label all significant points on each diagram and identify the maximum moments along with their respective locations. Additionally: (a) Determine V and M in the beam at a point located 1.50 m to the right of B. (b) Determine Vand M in the beam at a point located 1.25 m to the left of D. Leta - 3.0m, b = 6.1 m,w = 38 kN/m,...
Shear and Bending Moment Diagrams Learning Goal: To determine the reactive forces and moments acting on...
Shear and Bending Moment Diagrams
Learning Goal:
To determine the reactive forces and moments acting on a beam;
express the shear and bending moment as functions of their
positions along the beam; and construct shear and bending moment
diagrams.
The cantilever beam shown is subjected to a moment at A
and a distributed load that acts over segment BC, and is
fixed at C. Determine the reactions at the support located
at C. Then write expressions for shear and bending...
Calculate the following: a) The reaction force, bending moments, deflections and draw shear force and bending...
Calculate the following:
a) The reaction force, bending moments, deflections and draw
shear force and bending moment diagrams.
E=200 Gpa
I= 4x10^-5 m^4
The force acting in the center of the beam is 115 kg x 9.81 = 1
128,15 N
(2 O2ISM 14 2154

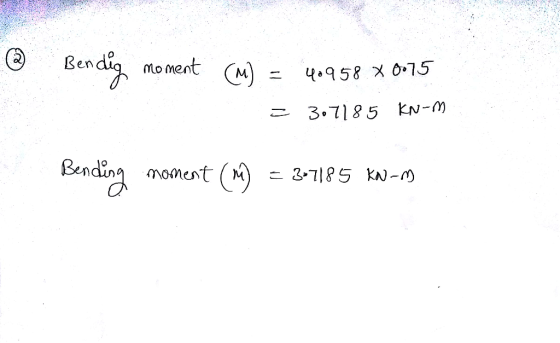

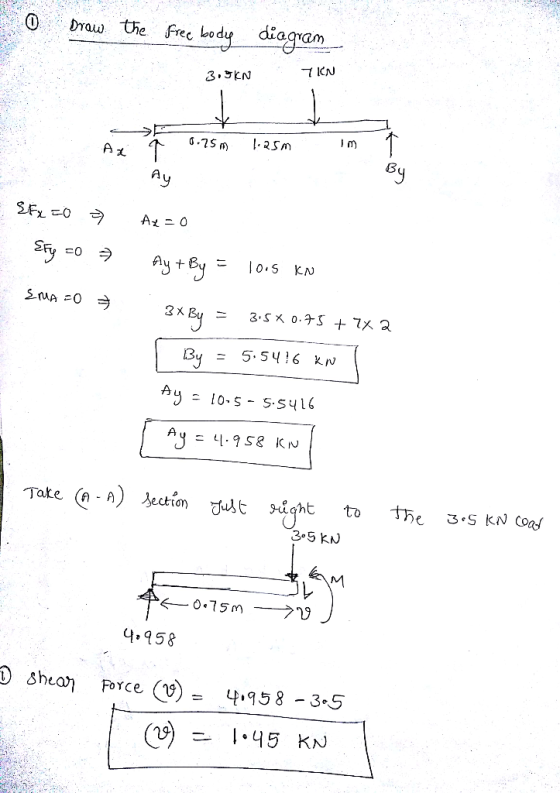

find 2) Calculate the shear forces and bending moments at point of the beam shown below....
find
2) Calculate the shear forces and bending moments at point of the beam shown below. Please show all your work 2/ KN A с 5 m 3 m
The number of significant digits is set to 3 A positive internal shear force V •...
The number of significant digits is set to 3
A positive internal shear force V • acts downward on the right-hand face of a beam. • acts upward on the left-hand face of a beam. A positive internal bending moment M • acts counterclockwise on the right-hand face of a beam. • acts clockwise on the left-hand face of a beam. = = Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Label all...
Problem#1 (10 points): For each beam in the figure below, determine the following: a) Shear forces...
Problem#1 (10 points): For each beam in the figure below, determine the following: a) Shear forces b) The shear force diagram. c) Bending moments. d) The bending moment diagram. e) The maximum value of the bending stress (same cross-section for all beams) (I=180*106 mm). f) The mode of loading created by the bending stress (tension or compression) 19 N le 12 N 16 AN 24 AN GAN 2 N 20 NEL 1 m ( 19 KN 2 AN NYE 4...
The figure below depicts the cantilever beam. Determine the magnitudes of bending moment (M) in kNm,...
The figure below depicts the cantilever beam. Determine the magnitudes of bending moment (M) in kNm, axial stress() in kN/m2, and shear force (V) in kN acting at point A. The equation for finding the axial stress is = Axial load / cross-section area. Cable XX XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXI BT Beam (0.2 m × 0.2 m) Frictionless Pulley 3 m 50 kN Select one: a Bending moment (M) = 150 kNm, Shear force = 50 kN and axial stress = 1250 kN/m2...
To determine the reactive forces and moments acting on a beam;
express the shear and bending moment as functions of their
positions along the beam; and construct shear and bending moment
diagrams. The cantilever beam shown is subjected to a moment at A
and a distributed load that acts over segment BC, and is fixed at
C. Determine the reactions at the support located at C. Then write
expressions for shear and bending moment as a function of their
positions...
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Label all significant points on each diagram and identify the maximum moments along with their respective locations. For all answers entered, use the sign convention for shear forces and bending moments. (a) Find the location x and the corresponding bending moment M at the one point between A and B at which the shear force equals zero. (b) Consider the entire beam and determine the maximum positive...
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Label all significant points on each diagram and identify the maximum moments along with their respective locations. For all answers entered, use the sign convention for shear forces and bending moments (a) Find the location x and the corresponding bending moment M at the one point between A and D at which the shear force equals zero. (b) Consider the entire beam and determine the...
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Label all significant points on each diagram and identify the maximum moments along with their respective locations. Additionally: (a) Determine V and M in the beam at a point located 1.50 m to the right of B. (b) Determine Vand M in the beam at a point located 1.25 m to the left of D. Leta - 3.0m, b = 6.1 m,w = 38 kN/m,...
Shear and Bending Moment Diagrams
Learning Goal:
To determine the reactive forces and moments acting on a beam;
express the shear and bending moment as functions of their
positions along the beam; and construct shear and bending moment
diagrams.
The cantilever beam shown is subjected to a moment at A
and a distributed load that acts over segment BC, and is
fixed at C. Determine the reactions at the support located
at C. Then write expressions for shear and bending...
Calculate the following:
a) The reaction force, bending moments, deflections and draw
shear force and bending moment diagrams.
E=200 Gpa
I= 4x10^-5 m^4
The force acting in the center of the beam is 115 kg x 9.81 = 1
128,15 N
(2 O2ISM 14 2154
find
2) Calculate the shear forces and bending moments at point of the beam shown below. Please show all your work 2/ KN A с 5 m 3 m
The number of significant digits is set to 3
A positive internal shear force V • acts downward on the right-hand face of a beam. • acts upward on the left-hand face of a beam. A positive internal bending moment M • acts counterclockwise on the right-hand face of a beam. • acts clockwise on the left-hand face of a beam. = = Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Label all...
Problem#1 (10 points): For each beam in the figure below, determine the following: a) Shear forces b) The shear force diagram. c) Bending moments. d) The bending moment diagram. e) The maximum value of the bending stress (same cross-section for all beams) (I=180*106 mm). f) The mode of loading created by the bending stress (tension or compression) 19 N le 12 N 16 AN 24 AN GAN 2 N 20 NEL 1 m ( 19 KN 2 AN NYE 4...
The figure below depicts the cantilever beam. Determine the magnitudes of bending moment (M) in kNm, axial stress() in kN/m2, and shear force (V) in kN acting at point A. The equation for finding the axial stress is = Axial load / cross-section area. Cable XX XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXI BT Beam (0.2 m × 0.2 m) Frictionless Pulley 3 m 50 kN Select one: a Bending moment (M) = 150 kNm, Shear force = 50 kN and axial stress = 1250 kN/m2...
