T5.1
Can someone please walk me through this?

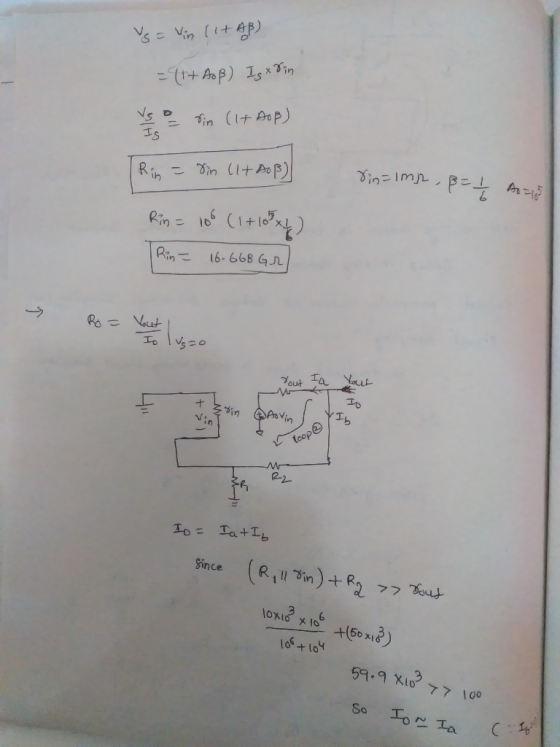

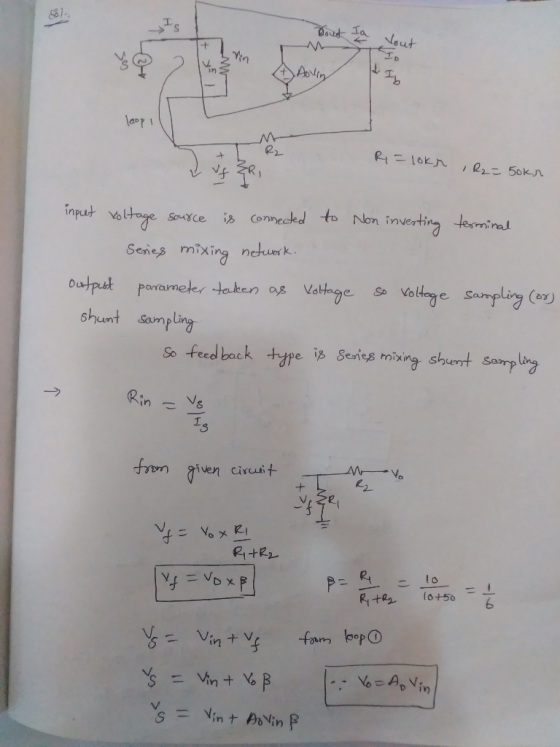

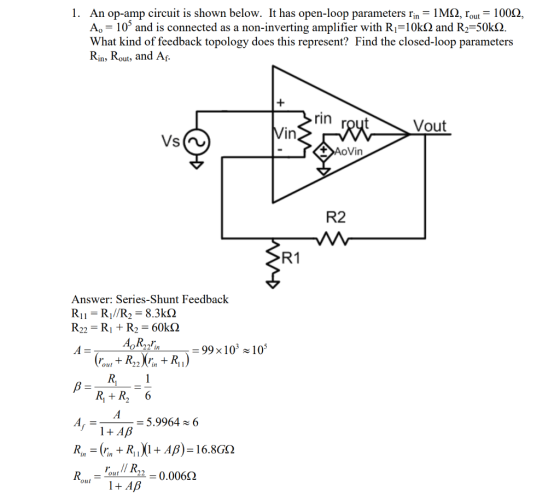

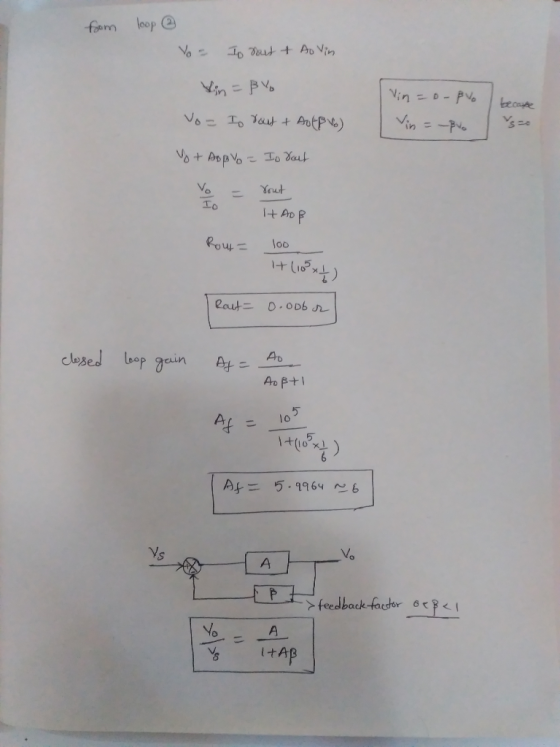

T5.1 Can someone please walk me through this? 1. An op-amp circuit is shown below. It...
EEET255 Electronics Page 4 of6 QUESTION 3: [25 marks] Figure 3 shows a feedback amplifier circuit R, is the source resistor, R is the feedback resistor and R, is the load resistor. The op-amp has an internal input resistance of R, an intemal output resistance R, and an internal gain of A Apply the "Systematic Analysis" method in this question. Figure 3 3.a State the feedback topology used in the amplifier circuit and which type of feedback amplifier is shown...
4. A non-inverting amplifier shown below is to be constructed with a uA741C Op. Amp. It is to have a gain of 1001 with R1=100 ohms. Assume the GBP (non- inverting) = 100 kHz (a) Specify value of the resistor R2. (b) Sketch the Bode plot for this amplifier using specific numerical values and indicate the cut-off frequency. R R1 B Op-amp + +o VO TH
4. A non-inverting amplifier shown below is to be constructed with a uA 741C Op. Amp. It is to have a gain of 1001 with R1=100 ohms. Assume the GBP (non- inverting) = 100 kHz (a) Specify value of the resistor R2. (b) Sketch the Bode plot for this amplifier using specific numerical values and indicate the cut-off frequency. R2 R w B Op-amp + + o V HU TH
4. A non-inverting amplifier shown below is to be constructed with a uA 741C Op. Amp. It is to have a gain of 1001 with R1=100 ohms. Assume the GBP (non- inverting) = 100 kHz (a) Specify value of the resistor R2. (b) Sketch the Bode plot for this amplifier using specific numerical values and indicate the cut-off frequency. R2 R w B Op-amp + + o V HU TH
I need help to find the values!
gures below (a-d), determine the values for R1, R2, voltage or type of op-amp based on the information listed. You may ors with an open circuit, short circuit, or values 1kn SRS1Mn. gain, voltage, a) 76 k2 Type: Non-Inverting Vout max R1 (based on Voutmas) 0.3V Type: Inverting, Av =-100 V/V Vin- b) R1 12V R1 12V Type: Buffer Vout- R1 =- c) +10 V R1 ーVout -10 V Type: Av- IV R2...
Part A only please
Part A - Analysis of an op-amp circuit using a realistic circuit model Learning Goal For an ideal op-amp, we assume that the current flowing into the More realistically, calculatei in the circuit given when R1 9.6 k, R2 -4.2 kQ R3-95 ko. V,-2920 μν , and Voe-15 V . Assume that the op-amp can be modeled with an input resistance of Ri-6.00 M, an output resistance of Ro- 9.5 kS2, and an open-loop gain of...
Problem 2 Consider the feedback amplifier circuit on Figure P2. The DC current gain of transistor Q3 is -100 1. What type of feedback (or what feedback topology) do we have on the circuit in Figure P2? 2. Draw the A-circuit. Express and compute the open-loop voltage gain A at mid-band frequency 3, Draw the γ-circuit. Express and compute the feedback factor γ 4. Express and compute the overall gain of the feedback amplifier Ap Express and compute the input...
Exercise 10: Find the gain of the amplifier circuit shown below. Assume op-amp is ideal and RI=R2-R3-3 R and R4-R. V. R
Can you please give the hand calculation of this circuit with
details when its Non-Inverting and Inverting
Op-Amp Voltage Adder / Summing Amplifier R13 =R R14=Rf 2k<TEXT> 1k BAT7 <TEXT> 9V <TEXT> POT A RV5 R10 =R1 R1=R2=R3=R=1K Rf=2K Vout=Va+Vb+Vc=1.43V <TEXT> 309 РОТ В RVO 1k <TEXT> <TEXT> R11=R21 R11=R2A NU6 POTC RATA <TEXT> R12=R31 Vout 1-46 9V <TEXT> HRV7 741 + 1k <TEXT> <TEXT +0.09 <TEXT +0.67 Volts +0.67 Volts +1.44 Voits Volts = Vout=(1+(Rf/R))*((Va/R1)+(Vb/R2)+(Vc/R3)) ((1/R1)+(1/R2)+(1/R3)) E VIDEOS
having a de is to cascade Op amps wi Write an Figure P2.42 243. The objective of this probiem is to investigate the effects of finite gain, finite input impedance, and nonzero output impedance of the op amp on the inverting amplifier. Consider the effects ex 248. A cert the circui, including the op-amp model, shown in Figure P2.43. amp has a d (a) Derive an expression for the circuit voltage gain o/to scale. If t Sketch the E Evaluate...
