Two disks are rotating about the same axis. Disk A has a moment of inertia of...

Question

Question

Two disks are rotating about the same axis. Disk A has a moment of inertia of 4.45 kg.m2 and an angular velocity of +4.87 rad

science physics

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

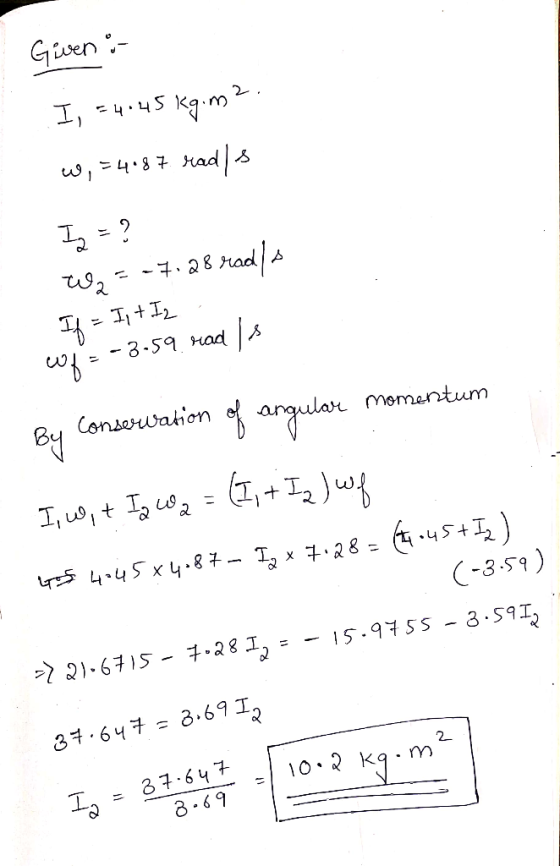

Given :- I, +4.45 kg.ma. w,54187 rad|s Iz = ? W2 = -7.28 radla If = I + Iz wuf = -3.59 rad Is By Conservation of angulare mo

Add a comment
