The components of vectors and are given as follows: Bx = -9.2 Cx = -4.5 By...

The components of vectors and are given as follows: Bx = -9.2 Cx = -4.5 By = -6.1 Cy = + 4.3 The angle (less than 180 degrees) between vectors B and C is:

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

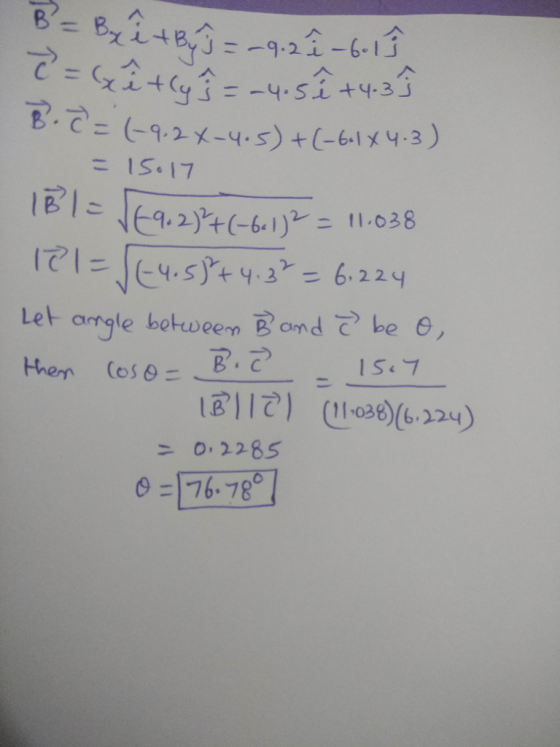

i-613 (-9.2%-4.5)+(-6-1メ4.3) IS. 17 c= ぼ1こ Let orngle behoeen Bond ,c) be 6, 0,2285

0 0
