We have a sign (GAS) that weighs 200N and we will hang it using a beam...
We have a restaurant sign that weighs 150N and we will hang it using a beam...
We
have a restaurant sign that weighs 150N and we will hang it using a
beam and a cable as shown in the figure. The mass of the beam is
uniform and its weight is 50N. We do not know the length of the
beam (express it as L). The cable has no mass, and makes an angle
of 30 ° with the beam. The magnitude of the gravitational force of
the gonze that supports the beam is approximately:
Using...
3m- -2m- 4501 450N Kim 20° 500N Main 200N 20. On a busy intersection a 3.00...
3m- -2m- 4501 450N Kim 20° 500N Main 200N 20. On a busy intersection a 3.00 m beam of 150 N is connected to a post at an angle upwards of 20.0 degrees to the horizontal. From the beam straight down hang a 200 N sign 1.00 m from the post and a 500 N signal light at the end of the beam. The beam is supported by a cable which connects to the beam 2.00 m from the post...
2) See Figure 2. A 35 kg sign is suspended from the end of a uniform...
2) See Figure 2. A 35 kg sign is suspended from the end of a uniform horizontal beam that has a mass of 25 kg and a length of 3.0 m. The beam is attached to a wall by a hinge. A cable with negligible mass is attached to the end of the beam just above the sign and extends to the wall, forming an angle of 30° with the beam. cable beam Physics is Phun Figure 2 a) Sketch...
See Figure 2. A 35 kg sign is suspended from the end of a uniform horizontal...
See Figure 2. A 35 kg sign is suspended from the end of a uniform horizontal beam that has a mass of 25 kg and a length of 3.0 m. The beam is attached to a wall by a hinge. A cable with negligible mass is attached to the end of the beam just above! the sign and extends to the wall, forming an angle of 30° with the beam. cable beam Physics is Phun Figure 2 WT 1173337 a)...
A drum of weight 200 N is supported by a beam of length s, weight W...
A drum of weight 200 N is supported by a beam of length s, weight W and a rope of length r. The mass per unit length of the beam is uniform. If the force exerted on the beam by the hinge is 200 N and acts at an angle of 25 above the horizontal then the tension in the cable of length r is TV zoo (a) 224 N (b) 79 N (c) 105 N (d) 338 N
A hinge at a wall and a cable support a uniform horizontal beam that weighs 1000...
A hinge at a wall and a cable support a uniform horizontal beam that weighs 1000 N. Four different arrangements of the cable are shown in the figure (a-d). In arrangement c, the cable is vertical. Rank the tension in the cable from greatest to least and answer the questions using the drop-down lists: Greatest cable tension: Second greatest tension: Third greatest tension: Least tension: What is the magnitude of the tension force for arrangement c? If the cable can...
As shown below, a sign weighing 490 N is hanging (via a wire) from a uniform...
As shown below, a sign weighing 490 N is hanging (via a wire) from a uniform 263 N beam of length L. Additionally, the beam is attached to a cable that makes an angle 0 (0 = 34°) with the beam. 0.8L Determine the tension in the cable and the magnitude & direction of the force the hinge (the orange circle) exerts on the beam. Cable tension = Hinge force = Direction of hinge force = o relative to the...
The sign in the figure weighs 200 N. The boom is of uniform construction. If the...

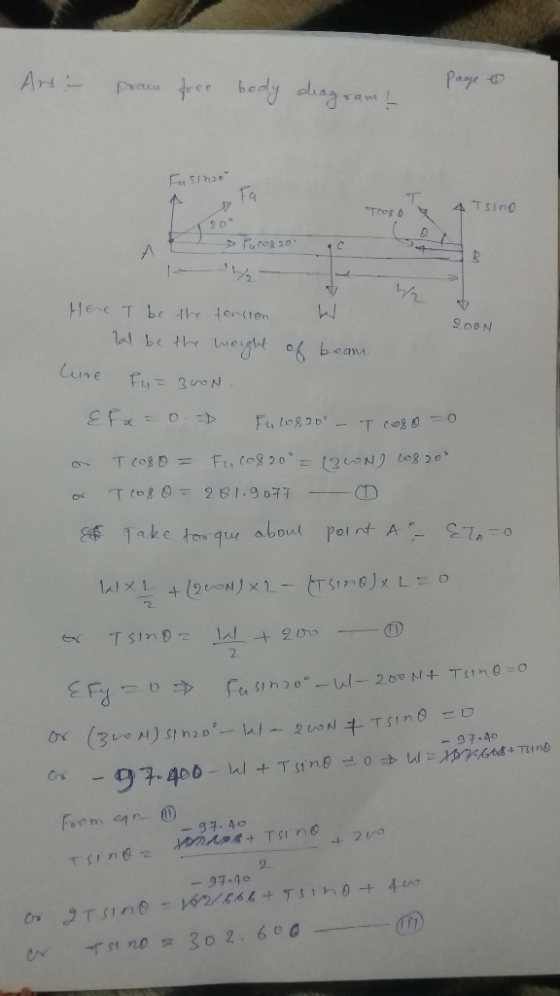

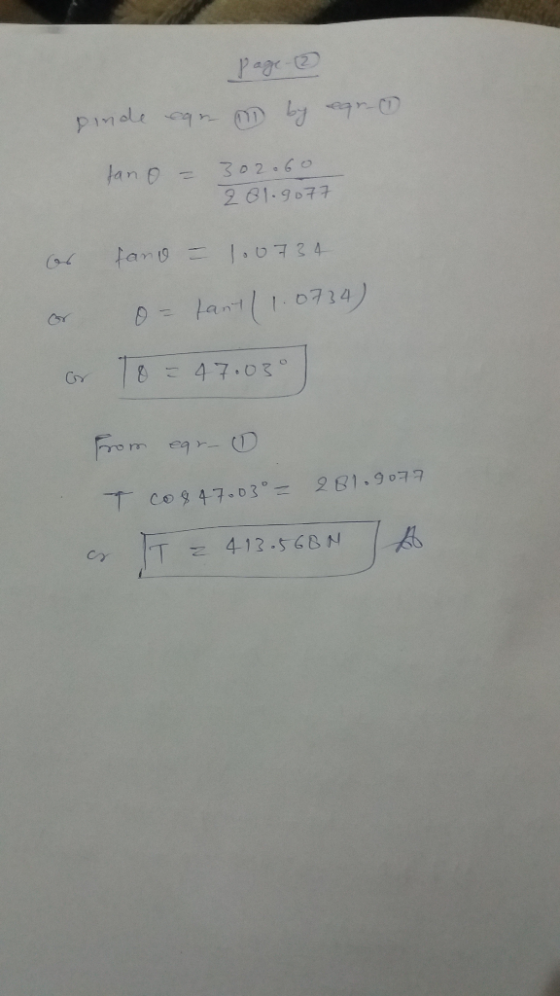

The sign in the figure weighs 200 N. The boom is of uniform construction. If the force exerted by the hinge on the boom is 300 N and acts at an angle of 20º above the horizontal, the weight of the boom is a. ~ 250 N b. ~ 469 N c. none of these is correct
You open a restaurant and hope to entice customers by hanging out a sign (Figure 1)....
You open a restaurant and hope to entice customers by hanging out a sign (Figure 1). The uniform horizontal beam supporting the sign is 1.60 m long, has a mass of 17.0 kg , and is hinged to the wall. The sign itself is uniform with a mass of 33.0 kg and overall length of 1.20 m . The two wires supporting the sign are each 35.0 cm long, are 90.0 cm apart, and are equally spaced from the middle...
Problem 2 (25 pts) form horizontal beam in the figure weighs 1.00% 102 N. A 2.00x102...
Problem 2 (25 pts) form horizontal beam in the figure weighs 1.00% 102 N. A 2.00x102 N crate hangs from the far end as in the diagram. Find a) the tension in the cable A and b) the horizontal and vertical components of the reaction force at the hinge. A, 5.00 m 3.00 m 36.90 4.00 m 200
We
have a restaurant sign that weighs 150N and we will hang it using a
beam and a cable as shown in the figure. The mass of the beam is
uniform and its weight is 50N. We do not know the length of the
beam (express it as L). The cable has no mass, and makes an angle
of 30 ° with the beam. The magnitude of the gravitational force of
the gonze that supports the beam is approximately:
Using...
3m- -2m- 4501 450N Kim 20° 500N Main 200N 20. On a busy intersection a 3.00 m beam of 150 N is connected to a post at an angle upwards of 20.0 degrees to the horizontal. From the beam straight down hang a 200 N sign 1.00 m from the post and a 500 N signal light at the end of the beam. The beam is supported by a cable which connects to the beam 2.00 m from the post...
2) See Figure 2. A 35 kg sign is suspended from the end of a uniform horizontal beam that has a mass of 25 kg and a length of 3.0 m. The beam is attached to a wall by a hinge. A cable with negligible mass is attached to the end of the beam just above the sign and extends to the wall, forming an angle of 30° with the beam. cable beam Physics is Phun Figure 2 a) Sketch...
See Figure 2. A 35 kg sign is suspended from the end of a uniform horizontal beam that has a mass of 25 kg and a length of 3.0 m. The beam is attached to a wall by a hinge. A cable with negligible mass is attached to the end of the beam just above! the sign and extends to the wall, forming an angle of 30° with the beam. cable beam Physics is Phun Figure 2 WT 1173337 a)...
A drum of weight 200 N is supported by a beam of length s, weight W and a rope of length r. The mass per unit length of the beam is uniform. If the force exerted on the beam by the hinge is 200 N and acts at an angle of 25 above the horizontal then the tension in the cable of length r is TV zoo (a) 224 N (b) 79 N (c) 105 N (d) 338 N
As shown below, a sign weighing 490 N is hanging (via a wire) from a uniform 263 N beam of length L. Additionally, the beam is attached to a cable that makes an angle 0 (0 = 34°) with the beam. 0.8L Determine the tension in the cable and the magnitude & direction of the force the hinge (the orange circle) exerts on the beam. Cable tension = Hinge force = Direction of hinge force = o relative to the...
Problem 2 (25 pts) form horizontal beam in the figure weighs 1.00% 102 N. A 2.00x102 N crate hangs from the far end as in the diagram. Find a) the tension in the cable A and b) the horizontal and vertical components of the reaction force at the hinge. A, 5.00 m 3.00 m 36.90 4.00 m 200
