The homogeneous gate shown consists of one quarter of a circular cylinder and is used to...
This problem has not been solved yet on here and I'm having some difficulty solving it.
Homework Answers
Add Answer to:
The homogeneous gate shown consists of one quarter of a circular
cylinder and is used to...
Chapter 02, Problem 122 The homogeneous gate shown in the figure below consists of one quarter...

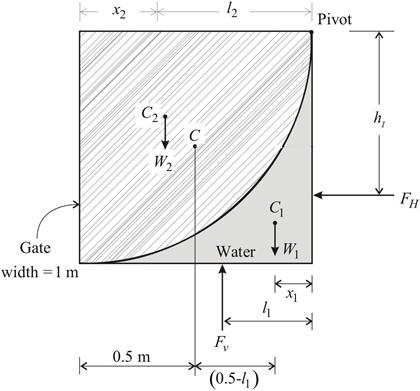

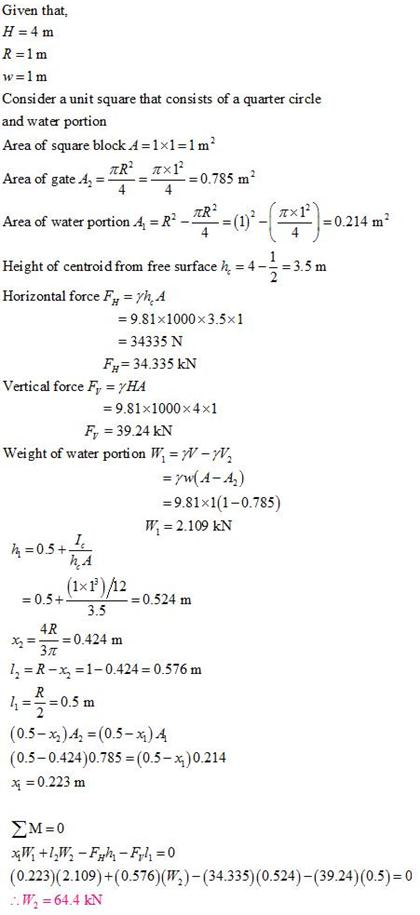

Chapter 02, Problem 122 The homogeneous gate shown in the figure below consists of one quarter of a circular cylinder and is used to maintain a water depth of 3.8 m. That is, when the water depth exceeds 3.8 m, the gate opens slightly and lets the water flow under it. Determine the weight of the qate per meter of length Pivot 3.8m 1 m kN W = the tolerance is +/-2% Open Show Work Show Work is REQUIRED for...
A quarter-circular gate is being used to retain a water reservoir, Figure 3. The gate is...
A quarter-circular gate is being used to retain a water
reservoir, Figure 3. The gate is hinged at point B with radius R =
8 ft, depth b = 10 ft into the page, and weight W = 3000 lbf.
Compute the force F, applied at point A, that will keep the gate
from opening.
Figure 3. Quarter-Circular Gate for Question 5
2. (45 pts) Consider the 10-meter wide, quarter-circular gate shown below. Take R-3 ft and the...
2. (45 pts) Consider the 10-meter wide, quarter-circular gate shown below. Take R-3 ft and the specific weight of the water as y 62.4 lb/ft3. The gate is of negligible weight. The pressure of the air is 10 psi gage. Compute the magnitude of the force Q required to keep the gate in the position shown. Draw an appropriate and clear free body diagram for an alysis. air Hinge water
summatize the following info and break them into differeng key points. write them in yojr own...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
Chapter 02, Problem 122 The homogeneous gate shown in the figure below consists of one quarter of a circular cylinder and is used to maintain a water depth of 3.8 m. That is, when the water depth exceeds 3.8 m, the gate opens slightly and lets the water flow under it. Determine the weight of the qate per meter of length Pivot 3.8m 1 m kN W = the tolerance is +/-2% Open Show Work Show Work is REQUIRED for...
A quarter-circular gate is being used to retain a water
reservoir, Figure 3. The gate is hinged at point B with radius R =
8 ft, depth b = 10 ft into the page, and weight W = 3000 lbf.
Compute the force F, applied at point A, that will keep the gate
from opening.
Figure 3. Quarter-Circular Gate for Question 5
2. (45 pts) Consider the 10-meter wide, quarter-circular gate shown below. Take R-3 ft and the specific weight of the water as y 62.4 lb/ft3. The gate is of negligible weight. The pressure of the air is 10 psi gage. Compute the magnitude of the force Q required to keep the gate in the position shown. Draw an appropriate and clear free body diagram for an alysis. air Hinge water
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
