Question

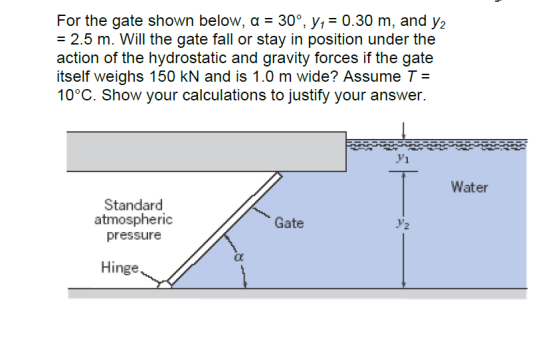

For the gate shown below, alpha = 30 degree, y1 = 0.30 m, and y2 = 2.5 m. Will the gate fall or stay in position under the action of the hydrostatic and gravity forces if the gate itself weighs 150 kN and is 1.0 m wide? Assume T = 10 degree C. Show your calculations to justify your answer.

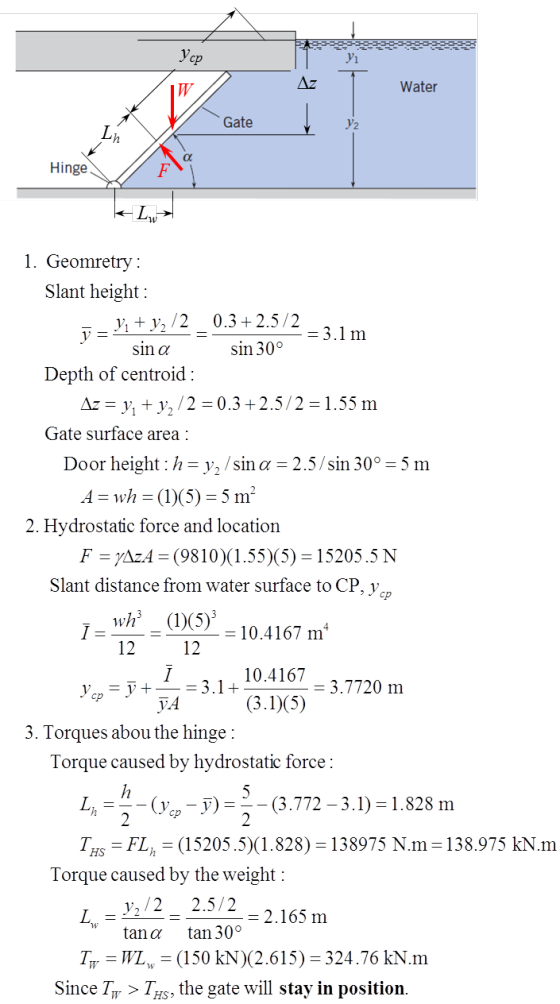

Answer 1
