Question

10037 Question 7 Determine the equivalent capacitance between A and B for the group of capacitors in the drawing. 5.0F 4.0F Number Units Attempts: 0 of 4 used Using multiple attempts will impact your score 10% score reduction after attempt 2 Send to Gradebook < Prev Next > 8:16 PM Dd1/30/201

Answer 1

As we know when two capacitors are in series then the equivalent capacitance is

1/Ceq=(1/C1)+(1/C2)

And when in parallel Ceq=C1+C2

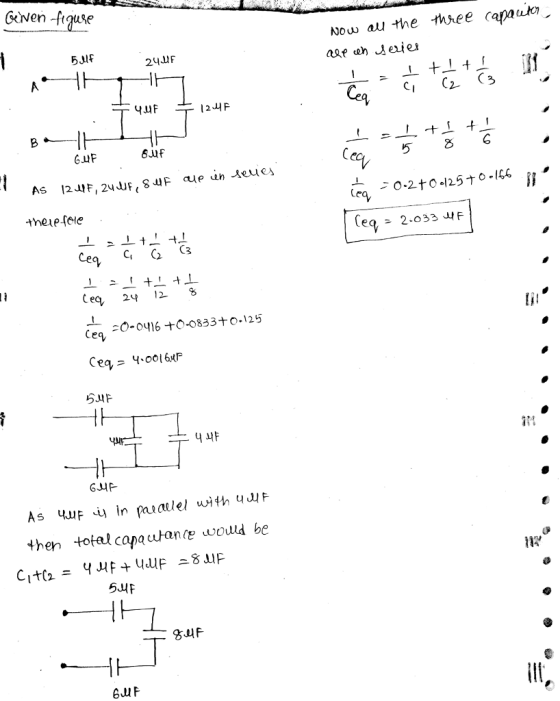

Gven -fiquse Now au the thee capauto 5Jlf 24uF GUF 6.uF Ca 5 +heipfee then tofel capautande would be suF 84F 6uF
