Solution :-
Vapor pressure of water at 83 C= 401 mmHg
Vapor pressure of benzene = atmospheric pressure – vapor pressure of water
= 760 mmHg – 401 mmHg
= 359 mmHg
Part a ) mole fraction of vapor during the distillation
Mole fraction of vapor = vapor pressure of water /total pressure
= 401 mmHg / 760 mmHg
= 0.5276
% of mole vapor = 0.5276 * 100 % = 52.76 % mole vapor
Part b) using the mole fraction of the vapor and benzene we can find the mass of each
Mole fraction of vapor = 0.5276
Mole fraction of benzene = 1 – 0.5276 = 0.4724
Now lets consider the mole fraction as nothing but the moles of each
Mass= moles x molar mass
Mass of water vapor = 0.5276 mol * 18.016 g per mol = 9.51 g
Mass of benzene = 0.4724 mol * 78.11 g per mol = 36.9 g
Now lets find the ratio
Mass of benzene / mass of water vapor
36.9 g / 9.51 g = 3.88 g
Therefore for every gram of water vapor it distills out 3.88 g benzene.

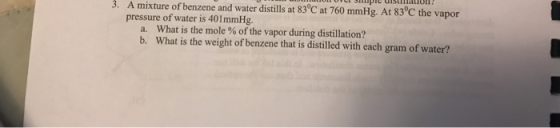

3. A mixture of benzene and water distills at 83°C at 760 mmHg. At 83 C...
It is desired to separate benzene from a water-benzene mixture in a distillation column operating at a constant pressure of 1 atm (760 mmHg). - Determine the temperature range of the column operation. - Draw the phase diagram of the mixture (versus x and y). - Draw the y-x equilibrium curve of the most volatile component and the 45-degree line in the same figure.
2. A water-air system at a temperature of 37 °C and pressure of 760 mmHg, contains 0.01 mole fraction of water vapor (yw). Estimate the vapor pressure of the water using the Antoine equation (Table B.4). a) If compressed at T - 37 °C, at what total pressure P, will the water be saturated? b) If you put a cold beer can in this air and dews form on the surface of the beer can, what is the highest possible...
At 60 C, compound X has a vapor pressure of 96 mmHg, benzene (C6H6)(C6H6) has a vapor pressure of 395 mmHg, and a 50:50 mixture by mass of benzene and X has a vapor pressure of 209 mmHg. What is the molar mass of X?
Benzene (C6H6) and cyclohexane (C6H12) form an ideal solution at 25°C. The density of benzene is 0.876 g/cm 3 and the density of cyclohexane is unknown.A liquid mixture is prepared by mixing 357 mL of benzene and 643 mL of cyclohexane. The vapor in equilibrium with this liquid has a mole fraction of benzene of 0.4. What is the density of cyclohexane in units of g/cm3? Data: Vapor pressure of benzene = 99 mmHg, at 25°C Vapor pressure of cyclohexane...
2. A natural product (MW-150) distills with steam at a boiling temperature of 99°C at atmospheric pressure. The vapor pressure of water at 99°C is 733 mm Hg. a) Calculate the mass of the natural product that codistills with each gram of water at 99°C. (2 pts.) Po 7500- 53 bo 27 nm non 70 Pb - Pa se Plo b) How much water must be removed by steam distillation to recover this natural product from 0.5 g of a...
Why does the insolubility of benzene and water in each other cause each liquid to exert its own vapor pressure when a mixture of benzene and water undergo steam distillation?
100 moles of benzene (A) and toluene (B) mixture containing 50 mol% of benzene is subjected to a differential distillation at atmospheric pressure till the composition of the benzene in the residue is 33 mol% Calculate the total moles of the mixture distilled. Assume a relative volatility of 2.25
Post lab Questions: 1. A mixture of ethyl iodide (C2H5l, bp = 72.3°C) and water boils at 64°C. What weight of ethyl iodide would be carried over by 1 g of steam during steam distillation? 2. The condensate from a steam distillation contains 8 g of an unknown compound and 18 g of water. The mixture steam distilled at 98°C. What is the molecular weight of the unknown?
1. The normal (at 760 mmHg, or 1 atm) boiling point of water is 100°C. What mass of glucose (C6H202) would you have to dissolve in 1000 g of water to decrease the vapor pressure at 100°C by 1%? Assume that water follows Raoult's law. M(H2O) = 18.02 g/mol, M(C6H1206) = 180.2 g/mol. (10 pts) 2. What is the normal boiling point of such a solution? Assume ideal behavior. The ebullioscopic (boiling-point elevation) constant of water is Kp = 0.512...
A
distillation column is fed with a liquid mixture of 25.0 mole %
benzene, 30 % toluene and 45 % xylene. The bottom product from the
distillation column contains 97 mole % xylene and no benzene. The
other stream (upper one) contains 29 % benzene and it is fed to a
second distillation column. The upper...
Problem 2. A distillation column is fed with a liquid mixture of 25.0 mole benzene, 30 toluene, and 45 xylene. The bottom product from...
