(Chapter 21 Exercise 21.44 7 of 10 Calculate the electric flelds Ei and E2 at point...
Point charge q1 = -5.00 nC is at the origin and point charge q2 = +3.00nC...

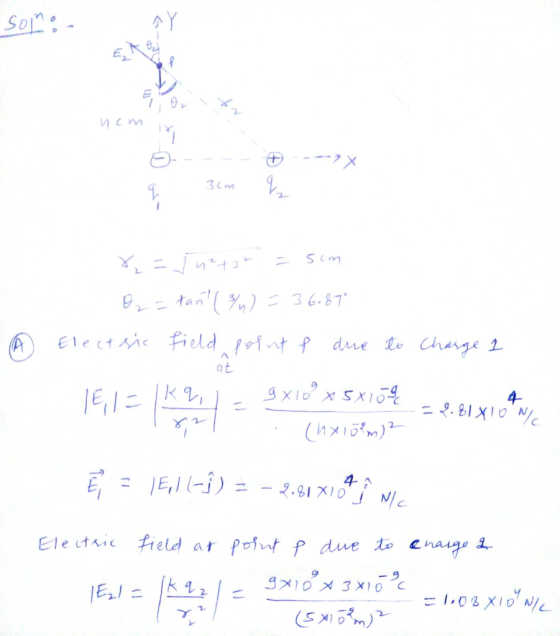

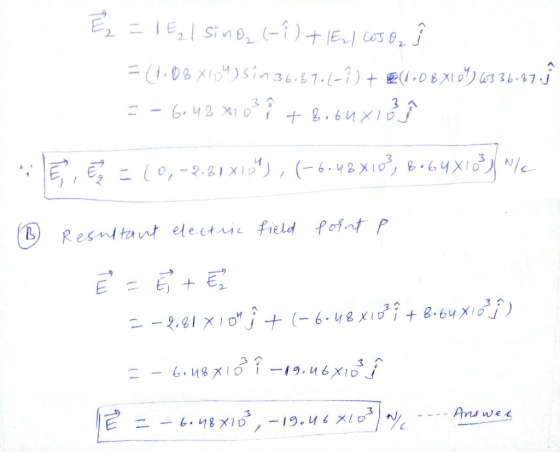

Point charge q1 = -5.00 nC is at the origin and point charge q2 = +3.00nC is on the x -axis at x = 3.00cm. Point P is on the y-axis at y = 4.00cm. Part A Calculate the electric fields E⃗ 1 and E⃗ 2 at point P due to the charges q1 and q2. Express your results in terms of unit vectors (see example 21.6 in the textbook). Express your answer in terms of the unit vectors i^,...
Point charge q1 = -5.00 nC is at the origin and point charge q2 = +3.00nC...
Point charge q1 = -5.00 nC is at the origin and point charge q2 = +3.00nC is on the x -axis at x = 3.00cm. Point P is on the y-axis at y = 4.00cm. A)Calculate the electric fields E⃗ 1 and E⃗ 2 at point P due to the charges q1 and q2. Express your results in terms of unit vectors (see example 21.6 in the textbook). B) Use the results of part (a) to obtain the resultant field...
Constants Part A Point charge 5.00 nC is at the origin and point charge axis at...
Constants Part A Point charge 5.00 nC is at the origin and point charge axis at z 3.00cm Point P is on the y-axls at y 4.00cm +3.00nC is on the r Calculate the electric flelds E1 and E at point P due to the charges g and g Express your results in terms of unit vectors (see example 21.6 ih the textbookj Express your answer in terms of the unit vectorsi. j. Enter your answers separated by a comma....
Point charge q1 = -5.00 nC is at the origin and point charge q2 = +3.00nC...
Point charge q1 = -5.00 nC is at the origin and point charge q2 = +3.00nC is on the x -axis at x = 3.00cm. Point P is on the y-axis at y = 4.00cm. Calculate the electric fields E⃗ 1 and E⃗ 2 at point P due to the charges q1 and q2. Express your results in terms of unit vectors Use the results of part (a) to obtain the resultant field at P, expressed in unit vector form.
Point charge q1 =-5.00 nC is at the origin and point charge q2 = +3.00nC is on the x -axis at x = 3.00 cm. Point P is on the y-axis at y = 4.00cm.
Point charge q1 =-5.00 nC is at the origin and point charge q2 = +3.00nC is on the x -axis at x = 3.00 cm. Point P is on the y-axis at y = 4.00cm.Calculate the electric fields E1 and E2 at point P due to the charges q1 and q2. Express your results in terms of unit vectorsUse the results of part (a) to obtain the resultant field at P, expressed in unit vector form.
