Determine the currents I1, I2, and I3 in the figure. Assume the internal resistance of each...
Determine the currents I1, I2,
and I3 in the figure. Assume the internal resistance of each
battery is 1.0 ohm

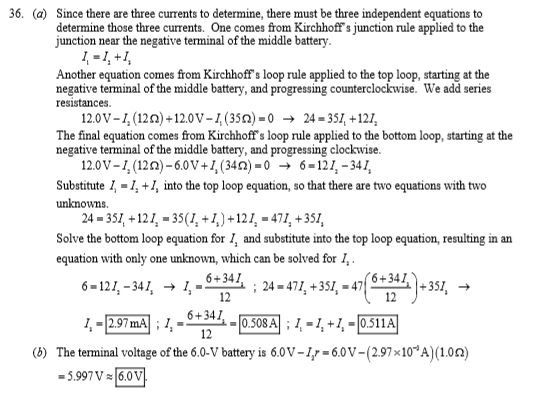

From a Cramster Solution:
Physics for Scientists and Engineers with Mod... ch. 26, prob
36P
Question Details
(a) Determine the currents I1, I2, and I3 in thefigure. Assume the
internal resistance of each battery is 1.0Ω.
Homework Answers
Add Answer to:
Determine the currents I1, I2,
and I3 in the figure. Assume the internal resistance of each...
Determine the currents I1, I2, and I3 in the figure above
(a) Determine the currents I1, I2, and I3 in the figure above. Assume R = 12 Ω and the internal resistance of each battery is r = 1.0 Ω.I1 = ____ AI2 = ____ AI3 = ____ A(b) What is the terminal voltage of the 6.0 V battery?______ V
A. Find currents i1 i2 and I3 B. Find terminal voltage Determine the currents I_1,I_2, and...
A.
Find currents i1 i2 and I3
B. Find terminal voltage
Determine the currents I_1,I_2, and I_3 in Figure. Assume the internal resistance of each battery is r=1.0 ohm What is the terminal voltage of the 6.0-V battery?
(a) Determine the currents I1, I2, and I3 in the figure above. Assume R = 12...
(a) Determine the currents I1, I2, and I3 in the figure above.
Assume R = 12 Ω and the internal resistance of each battery is r =
2.0 Ω.
I1 = _________A
I2 = _________A
I3 = _________A
(b) What is the terminal voltage of the 6.0 V battery?
Part 1. Determine the currents I1, I2, and I3 in the figure. Assumethe internal resistance of...
Part 1. Determine the currents I1, I2, and I3 in the figure.
Assumethe internal resistance of each battery is r = 1.4 Ω.
Part 2. What is the terminal voltage of the 6.0 V battery?
determine the currents I1, I2, and I3 for the electrical network shown in Figure 1.23 lineal...
determine the currents I1, I2, and I3 for the electrical
network shown in Figure 1.23
lineal algebra
Network Analysis 2 71. Determine the currents 1, 2, and Iz for the electrical network shown in Figure 1.23. 3 volls R1 = 3 2 volts HELL
Consider the circuit shown in the figure below. Calculate the currents I1, I2, and I3.
Consider the circuit shown in the figure below. Calculate the currents I1, I2, and I3.
Determine the currents I_1, I_2, and I_3 in the figure. Assume the internal resistance of each...
Determine the currents I_1, I_2, and I_3 in the figure. Assume the internal resistance of each battery is 1.0 Omega. Express your answer using two significant figures. Enter your answers numerically separated by commas. What is the terminal voltage of the 6.0-V battery? Express your answer using two significant figures.
use Loop/Mesh Analysis to determine the Loop Currents, I1, I2, and I3
Given the circuit which will be used for this and the next two problems, use Loop/Mesh Analysis to determine the Loop Currents, I1, I2, and I3. In this problem give the value for I1:
2140) Refer to Figure 2140. Assume all mks units. Determine Loop Currents: I1/_ ThI1, I2/_ThI2, I3/_ThI3...
2140) Refer to Figure 2140. Assume all mks units. Determine Loop Currents:
I1/_ ThI1, I2/_ThI2, I3/_ThI3 given
V1=10/_ 1.10,
V2= 4/_ 1.30,
V3=15/_ 1.20,
R4=10,
XC5=13,
XL6= 7,
XL7= 5,
R8=16,
XC9=10 ans:6 in radians
? L6 + V2172 ? R8 ? 12/?12 ? L7 R4 2C5 co 13,/g13 11/?11 ? Figure 2140
(a) Determine the currents I1, I2, and I3 in the figure above. Assume R = 12 Ω and the internal resistance of each battery is r = 1.0 Ω.I1 = ____ AI2 = ____ AI3 = ____ A(b) What is the terminal voltage of the 6.0 V battery?______ V
A.
Find currents i1 i2 and I3
B. Find terminal voltage
Determine the currents I_1,I_2, and I_3 in Figure. Assume the internal resistance of each battery is r=1.0 ohm What is the terminal voltage of the 6.0-V battery?
(a) Determine the currents I1, I2, and I3 in the figure above.
Assume R = 12 Ω and the internal resistance of each battery is r =
2.0 Ω.
I1 = _________A
I2 = _________A
I3 = _________A
(b) What is the terminal voltage of the 6.0 V battery?
Part 1. Determine the currents I1, I2, and I3 in the figure.
Assumethe internal resistance of each battery is r = 1.4 Ω.
Part 2. What is the terminal voltage of the 6.0 V battery?
determine the currents I1, I2, and I3 for the electrical
network shown in Figure 1.23
lineal algebra
Network Analysis 2 71. Determine the currents 1, 2, and Iz for the electrical network shown in Figure 1.23. 3 volls R1 = 3 2 volts HELL
Consider the circuit shown in the figure below. Calculate the currents I1, I2, and I3.
Determine the currents I_1, I_2, and I_3 in the figure. Assume the internal resistance of each battery is 1.0 Omega. Express your answer using two significant figures. Enter your answers numerically separated by commas. What is the terminal voltage of the 6.0-V battery? Express your answer using two significant figures.
