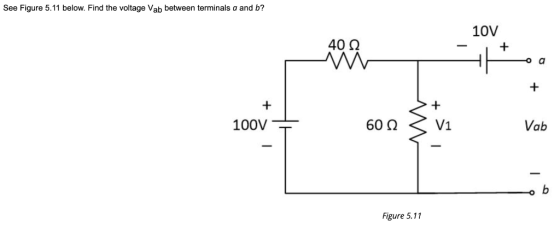

See Figure 5.11 below. Find the voltage Vab between terminals a and b? 10V 40 Q...
2-4: Find the equivalent resistance at the terminals a-b: ERH 25 Q 28 Q 30 Ω...
2-4: Find the equivalent resistance at the terminals a-b: ERH 25 Q 28 Q 30 Ω ww a 40 Ω 50 Ω 24 16 60 Ω ww w 10 Ω 20 Ω 18 Ω
Problem 1, (10% ) In the following circuit. between the terminals a and b (Va) B. Find the Thévenin couivalent fre the...
Problem 1, (10% ) In the following circuit. between the terminals a and b (Va) B. Find the Thévenin couivalent fre the circuit at terminals ab Far nedenstáende kredslab, A. Find spaendingen mellem terminalerne a ogb (Va). B. Find Theveninakvivalentet for kredslobet set fra termninalerne ab. RI-60 0 R2-40 0 V-5 y v2-3 v R1 R2 v2 V1 R3 R1
Problem 1, (10% ) In the following circuit. between the terminals a and b (Va) B. Find the Thévenin couivalent...
Using source transformations, find the current I and the voltage Vab of the circuit in Figure...
Using source transformations, find the current I and the voltage Vab of the circuit in Figure 9 (Ans: -0.2A, 8V) R60 ab 40 2 E224 V E348 V Figure 9
Q.6 For the series circuit in Figure given below, Determine Assume R -500n Vin-10V . The center frequency (f) b. The output voltage magnitude at (f) c. The bandwidth (BW )for the filter d. Draw t...
Q.6 For the series circuit in Figure given below, Determine Assume R -500n Vin-10V . The center frequency (f) b. The output voltage magnitude at (f) c. The bandwidth (BW )for the filter d. Draw the output response curve showing the maximum voltage, center frequency and the voltage where the BW is measured 150Ω 100μH
Q.6 For the series circuit in Figure given below, Determine Assume R -500n Vin-10V . The center frequency (f) b. The output voltage magnitude at...
Find the Thevenin equivalent with respect to the terminals a,b for the circuit(Figure 1) if v...
Find the Thevenin equivalent with respect to the terminals a,b
for the circuit(Figure
1) if v = 320V , i = 11A .
Find the equvalent voltage. Find the equivalent resistance.
Find the Thevenin equivalent with respect to the terminals a,b for the circuit(Figure 1) if v = 320V , i = 11A . Find the equvalent voltage. Find the equivalent resistance.
Due Date: 10/27/2019 EHB211E Basics of Electrical Circuits HOMEWORK 2 For the PSpice solutions, provide the...
Due Date: 10/27/2019 EHB211E Basics of Electrical Circuits HOMEWORK 2 For the PSpice solutions, provide the schematic showing the voltage and current values and the output file. )For the bridge network in Figure 1, find i using mesh analysis. Also, obtain and show these values using PSpice program. 2 k2 ww- 6 k0 6 kn 2 ka 56 V ww 4 kn 4 k0 Figure 1 2) Find V1 and V2 using nodal analysis in Figure 2. Also, obtain and...
Find the Thévenin equivalent circuit for the circuit shown below with respect to terminals a and...
Find the Thévenin equivalent circuit for the circuit shown below with respect to terminals a and b. Draw the equivalent circuit in your examination book. 12 kΩ 15 k2 36 V 1 60 kΩ Vab 18 mA
Attach a 14 V voltage source between the terminals a-b in (Figure 1). with the postive...
Attach a 14 V voltage source between the terminals a-b in (Figure 1). with the postive terminal at the top Part A Use voltage division to find the voltage across the resistor, positive at the left Express your answer to three significant figures and include the appropriate units. 40= 187 V Submit Previous Answers Correct Part B Use the result from part A to find the current in the 4 resistor from left to right. Express your answer to three...
Part C Find the equivalent capacitance with respect to the terminals a b for the circuit...
Part C Find the equivalent capacitance with respect to the terminals a b for the circuit shown in (Figure 2). Suppose that Ca = 31 JF Express your answer to three significant figures and include the appropriate units. OBI ? H Com= 4.615 nF Submit Previous Answers Request Answer X Incorrect; Try Again: 3 attempts remaining Figure < 1 of 2 > Part D Determine the the initial voltage drop for the equivalent capacitance with respect to the terminals a...
Find the current passing through the voltage source in the circuit shown below. Q Searc Homework...
Find the current passing through the voltage source in the
circuit shown below.
Q Searc Homework 2-2 - Find the current passing through the voltage source in the shown below. 1302 mo 243 3 101 3012 100V 300 3500
2-4: Find the equivalent resistance at the terminals a-b: ERH 25 Q 28 Q 30 Ω ww a 40 Ω 50 Ω 24 16 60 Ω ww w 10 Ω 20 Ω 18 Ω
Problem 1, (10% ) In the following circuit. between the terminals a and b (Va) B. Find the Thévenin couivalent fre the circuit at terminals ab Far nedenstáende kredslab, A. Find spaendingen mellem terminalerne a ogb (Va). B. Find Theveninakvivalentet for kredslobet set fra termninalerne ab. RI-60 0 R2-40 0 V-5 y v2-3 v R1 R2 v2 V1 R3 R1
Problem 1, (10% ) In the following circuit. between the terminals a and b (Va) B. Find the Thévenin couivalent...
Using source transformations, find the current I and the voltage Vab of the circuit in Figure 9 (Ans: -0.2A, 8V) R60 ab 40 2 E224 V E348 V Figure 9
Q.6 For the series circuit in Figure given below, Determine Assume R -500n Vin-10V . The center frequency (f) b. The output voltage magnitude at (f) c. The bandwidth (BW )for the filter d. Draw the output response curve showing the maximum voltage, center frequency and the voltage where the BW is measured 150Ω 100μH
Q.6 For the series circuit in Figure given below, Determine Assume R -500n Vin-10V . The center frequency (f) b. The output voltage magnitude at...
Find the Thevenin equivalent with respect to the terminals a,b
for the circuit(Figure
1) if v = 320V , i = 11A .
Find the equvalent voltage. Find the equivalent resistance.
Find the Thevenin equivalent with respect to the terminals a,b for the circuit(Figure 1) if v = 320V , i = 11A . Find the equvalent voltage. Find the equivalent resistance.
Due Date: 10/27/2019 EHB211E Basics of Electrical Circuits HOMEWORK 2 For the PSpice solutions, provide the schematic showing the voltage and current values and the output file. )For the bridge network in Figure 1, find i using mesh analysis. Also, obtain and show these values using PSpice program. 2 k2 ww- 6 k0 6 kn 2 ka 56 V ww 4 kn 4 k0 Figure 1 2) Find V1 and V2 using nodal analysis in Figure 2. Also, obtain and...
Find the Thévenin equivalent circuit for the circuit shown below with respect to terminals a and b. Draw the equivalent circuit in your examination book. 12 kΩ 15 k2 36 V 1 60 kΩ Vab 18 mA
Attach a 14 V voltage source between the terminals a-b in (Figure 1). with the postive terminal at the top Part A Use voltage division to find the voltage across the resistor, positive at the left Express your answer to three significant figures and include the appropriate units. 40= 187 V Submit Previous Answers Correct Part B Use the result from part A to find the current in the 4 resistor from left to right. Express your answer to three...
Part C Find the equivalent capacitance with respect to the terminals a b for the circuit shown in (Figure 2). Suppose that Ca = 31 JF Express your answer to three significant figures and include the appropriate units. OBI ? H Com= 4.615 nF Submit Previous Answers Request Answer X Incorrect; Try Again: 3 attempts remaining Figure < 1 of 2 > Part D Determine the the initial voltage drop for the equivalent capacitance with respect to the terminals a...
Find the current passing through the voltage source in the
circuit shown below.
Q Searc Homework 2-2 - Find the current passing through the voltage source in the shown below. 1302 mo 243 3 101 3012 100V 300 3500
