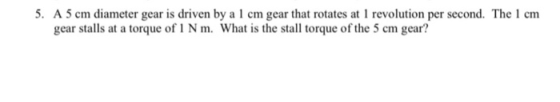

5. A 5 cm diameter gear is driven by a1 cm gear that rotates at 1...

Question

Question

science physics

Answer 1

Answer #1

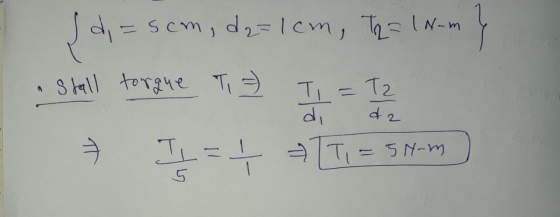

scm,d21cm, hlN-m T T T2 SHll tore T 5 N-m TT

Answer 2

Similar Homework Help Questions

4. A 5 cm diameter gear is driven by a 1 cm gear that rotates at...

4. A 5 cm diameter gear is driven by a 1 cm gear that rotates at 1 revolution per second. The 1 cm gear stalls at a torque of 1 Nm. What is the angular velocity of the 5 cm gear? 5. A 5 cm diameter gear is driven by a 1 cm gear that rotates at 1 revolution per second. The 1 cm gear stalls at a torque of 1 Nm. What is the stall torque of the 5...
A1 (driving gear) has 40 teeth and A2 (driven gear) has 82 teeth. If A1 rotates...

A1 (driving gear) has 40 teeth and A2 (driven gear) has 82 teeth. If A1 rotates 10 teeth, how many degrees does A2 rotate?
Question 1 In the epicyclic gear shown in Figure Q1 the Annulus A1 and the Sun...

Question 1 In the epicyclic gear shown in Figure Q1 the Annulus A1 and the Sun wheel S2 are compound, the Sun wheel Si rotates with the input shaft and both Planet cages rotate with the output shaft. The numbers of teeth on the o wheels are Si=24, A1=72, Sz=40 and A2=80. (1) Find the gear ratio of the system when the Annulus A1 is held fixed. S Find the gear ratio of the system when the Figure Q1 Annulus...

1. A two-stage compound gear is driven by a 20-hp motor that rotates the shaft 'a'...

1. A two-stage compound gear is driven by a 20-hp motor that rotates the shaft 'a' in CCW as shown in the figure at a speed of 100 rpm. Entire gear set has a diametral pitch of 4 teeth/in and a pressure angle of 20°. The tooth numbers are: N2 = 48, N3 = 72, N4 = 48, and Ns = 120. 5 С a 3 a. Draw the free body diagram of the compound gear 3 and 4 mounted...
2. Gear dynamics. The gear train above is driven on the input shaft with a 0.5...

2. Gear dynamics. The gear train above is driven on the input shaft with a 0.5 hp electric motor. All of the gears have a diametral pitch of 8 teeth per inch. e) What is the transmitted force between Gears 1 and 2, in lbf? f) What is the torque of Gear 1, in in-lbf? g) What is the torque of Gear 2? h) The torque of Gear 2 and 3 are the same. What is the torque of Gear...
2. Gear dynamics. The gear train above is driven on the input shaft with a 0.5...

2. Gear dynamics. The gear train above is driven on the input shaft with a 0.5 hp electric motor. All of the gears have a diametral pitch of 8 teeth per inch. i) What is the ratio of output torque (Gear 4) to input torque (Gear 1)? j) Is it a coincidence that it is the same as the answer in 1 An input shaft drives Gear 1 with 20 teeth at 1800 rpm which mates with the 80-tooth Gear...

A pulley of diameter 7.00 cm is driven at 100 rpm. Find the diameter of a...

A pulley of diameter 7.00 cm is driven at 100 rpm. Find the diameter of a second pulley if it is driven by the first at 250 rpm.
A compound epicyclic gear train is shown in the Figure. The shaft P is driven at...

A compound epicyclic gear train is shown in the Figure. The shaft P is driven at 2500 rpm in the clockwise direction by a motor of power rating 8 kW. The sun S2 is fixed. The number of teeth in the gears are S1, 34; S2, 21; A1, 86 and A2, 73. Determine The magnitude and direction of the angular velocity of the shaft Q and The torque required to fix the sun, S2 A, Q P S, 5,
A wheel of diameter 50.0 cm starts from rest and rotates with a constant angular acceleration of 5.00 rad/s2.

A wheel of diameter 50.0 cm starts from rest and rotates with a constant angular acceleration of 5.00 rad/s2. At the instant the wheel has completed its second revolution, compute the radial acceleration of a point on the rim in two ways. Using the relationship arad = ω2r. From the relationship arad = v2/r.

A wheel of diameter 30.0 cm starts from rest and rotates with a constant angular acceleration of 2.50 rad/s2

A wheel of diameter 30.0 cm starts from rest and rotates with a constant angular acceleration of 2.50 rad/s2. At the instant the wheel has completed its second revolution, compute the radial acceleration of a point on the rim in two ways. Using the relationship arad = ω2r. From the relationship arad = v2/r.
