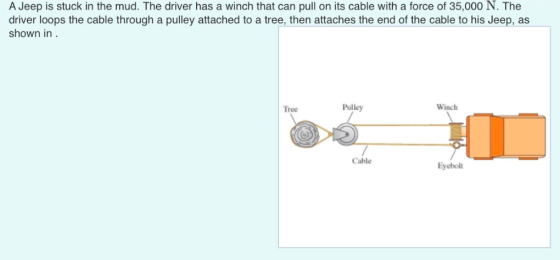

What is the magnitude of the maximum force that can be exerted on the Jeep by this cable arrangement?
Homework Answers
The force in one cable is 35000 N. The jeep is connected by two cable. Therefore the maximum force needed to pull the car is 2F.
=2 x 35000
=70,000 N
