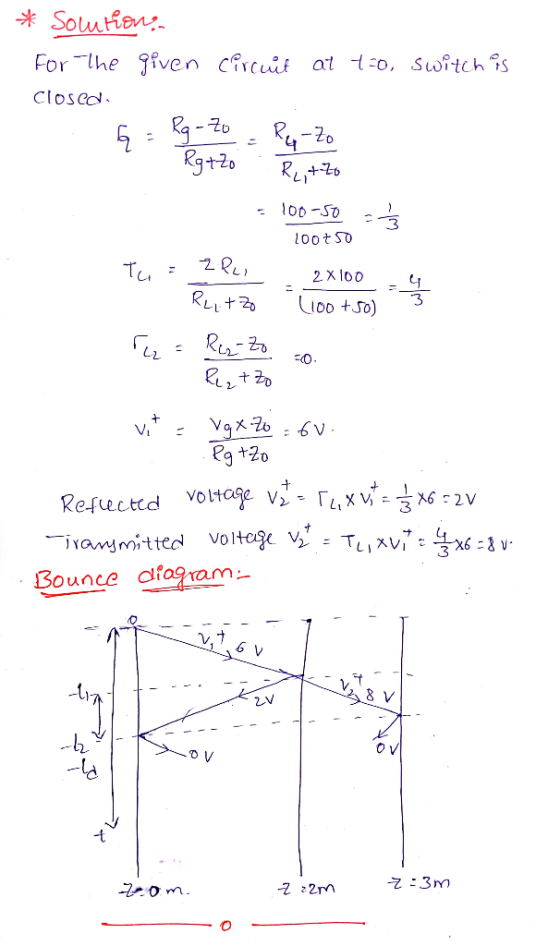

Q) In the below transmission circuit, the switch is closed when t=0. Draw bounce diagram.

Thank you.
kindly upvote if it's helpful
for you
Q) In the below transmission circuit, the switch is closed when t=0. Draw bounce diagram. Thank...
In the system shown below, the switch S is closed at t = 0. Assume it takes T = ls for a signal to travel down the entire transmission line. The characteristic impedance of the line is Zo Son, and the source and load resistances are shown in the figure. • Draw the voltage bounce diagram. • Using the bounce diagram, plot V(z = 0,t), the voltage at z = 0 (the start of the line) as a function of...
In an ideal transmission line, If a switch is closed at t = 0 and a 10 Volt generator with output impedance of 25 Ω drives a 50 Ω transmission line of length ? with a 75 Ω load. Draw a Bounce Diagram for the resulting voltage and plot the voltage vs time at the midpoint of the line vs time. Plot the until the reflected voltage until it is less than 2% of the original value.
sketch a voltage wave by time at oscilloscope
Oscilloscope t -0 Rg 500 R = 0, L = 500 nH/ m 1002 = RI C 1uF G = 0, C 200 pF m V12V z = Om z=2m
Oscilloscope t -0 Rg 500 R = 0, L = 500 nH/ m 1002 = RI C 1uF G = 0, C 200 pF m V12V z = Om z=2m
Consider the circuit shown below. Find (in A) the currents (11, 12, 13) when the switch is first closed. The emf of the circuit is 12V, R = 20 ohms, R2 = 30 ohms, and L = 250 mH. RA 2000- O 0.24, 0.24, 0.24) (0.24,0.12, 0.24) (0.12,0.12, 0.24) O 0.24,0,0.24) 0 (0.24,0.12,0,12)
The switch in the RC circuit shown in the diagram closes at t = 0. The emf ε = 12V, R = 10 kΩ, C = 11.88 nF. The capacitor was uncharged initially. At what time does the capacitor voltage hit 4.5 V? Express your answer up to one decimal place, and in units of microseconds. I got 55.84 microseconds as my answer...
In this RC circuit, at t = 0 second, switch 1 is closed, switch
2 is left opened.
a. Determine the current through the uncharged capacitor and the
2 resistors at t = 0 second. (1.33 A)
b. Determine the current through the capacitor and the 2
resistors at t = 100 µs. (0.35 A)
c. For this part, switch 1 is left opened and switch 2 is closed
after the capacitor was charged for a very long time (assume...
Solve for Iz(t) in the circuit shown for t>O as the switch is closed for t>0. t=0 R3=2000 Rz=2000 Ix V. 24V R; 2009 R2 1000 30 mH
b) For e circuit shown in Figure 4, the switch S is closed at t = 0. the voltage v (t) across the inductor L, given that v(t) = Vsin2nt ft. R = 100 O [6 points) Calculate the voltage v, (t) ac L = 318.3 mH and f = 50 Hz. Figure 4.
9. The switch in the circuit below is at first open, but at t-0, it is thrown closed. (a) Find an expression for the time-dependence of the current through the inductor in terms of R, L and e. (b) For R 42,L 1H,E 10V, express the current through the inductor, switch and between points a and b as functions of time. (c) Evaluate the currents for t-0 and when t converges to infinity. Note that we will cover this topic...
The switch on an RC circuit is closed at t = 0. Given that E = 9.0 V , R = 180 Ω and C = 24 μF , how much charge is on the capacitor at time t = 4.2 ms ?
