Add Answer to:

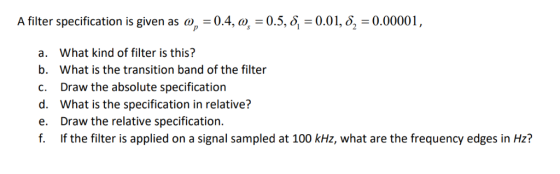

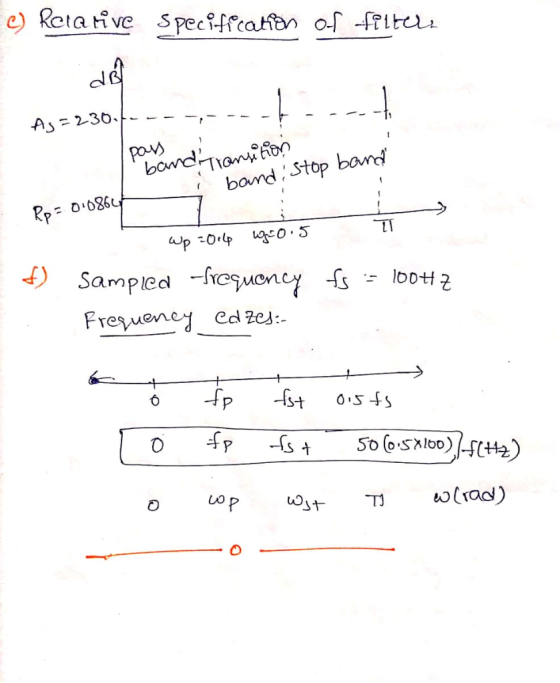

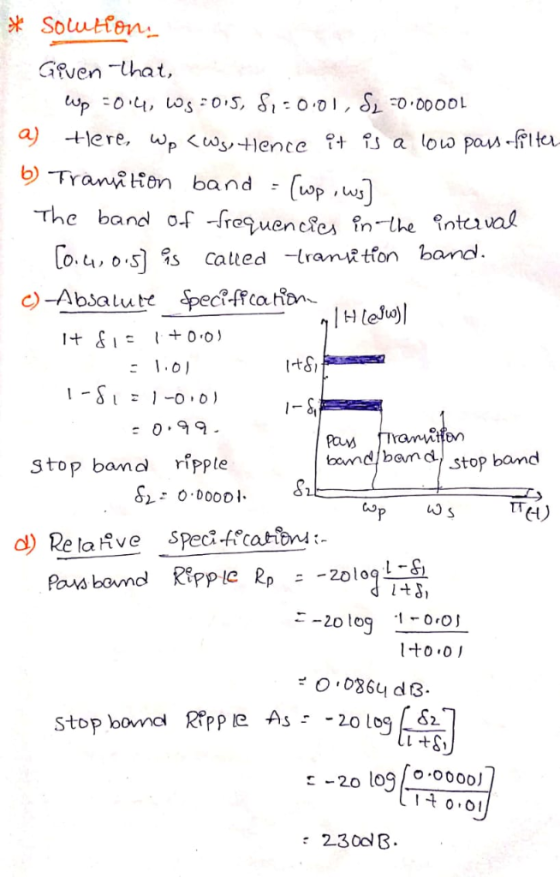

A filter specification is given as w, -0.4, a, 0.5,8 0.01, 6 0.00001, What kind of...
Q1) Given an analog signal X(t) = 3 cos (2π . 2000t) + 2 cos (2π...
Q1) Given an analog signal X(t) = 3 cos (2π . 2000t) + 2 cos (2π . 5500t) sampled at a rate of 10,000 Hz, a. Sketch the spectrum of the sampled signal up to 20 kHz; b. Sketch the recovered analog signal spectrum if an ideal lowpass filter with a cutoff frequency of 4 kHz is used to filter the sampled signal in order to recover the original signal ; c. Determine the frequency/frequencies of aliasing noise . Q2)...
A) Design a low-pass filter using the given circuitry with a cut-off value of 1 kHz and plot the ...
a) Design a low-pass filter using the given circuitry with a cut-off value of 1 kHz and plot the frequency response curve on the given axes 1.0 0.7 0.5 in out 0.0 101 102 103 104 10s Hz b) Design a band-pass filter using the given circuitry with a bandwidth of 500 Hz and a lower cut-off value of 100 Hz, and draw the frequency response curve. Keep all resistors at the same value (i.e. Ri-R-R3-R4). 1.0 0.7 0.5 0.0...
Using the windowing functions discussed in class, design a low-pass FIR filter with a cutoff freq...
Using the windowing functions discussed in class, design a
low-pass FIR filter with a cutoff frequency of 2 kHz, a minimum
stop band attenuation of 40 dB, and a transition width of 200Hz.
The sampling frequency is 10kHz.
1. Using the windowing functions discussed in class, design a low-pass FIR filter with a cutoff frequency of 2 kHz, a minimum stop band attenuation of 40 dB, and a transition width of 200 Hz. The sampling frequency is 10 kHz 2....
3. With the aid of a diagram, briefly explain th ing principle of a Successive a) Approximation Analog-to-Digital Conve...
3. With the aid of a diagram, briefly explain th ing principle of a Successive a) Approximation Analog-to-Digital Converter (ADC) b) An ADC has to be designed to convert voltages in the range from -5 V to +5 V, with a resolution below (better than) 1 mV. What is the minimum number of bits required to meet this design specification? An ADC has to be designed to convert input voltage signals with frequency c) components less than or equal o...
3. For the active filter circuit below, complete the following: a) Find the magnitude of the...
3. For the active filter circuit below, complete the following: a) Find the magnitude of the transfer function | H | starting from the nodal equations. b) Find the phase shift of the transfer function (W) c) Find the cutoff frequency fc in Hz d) Is this a high pass or low pass filter? e) Find the passband gain of the filter 62 k2 ANA EVA 22 nF 3.3k f) Given the following input signal: vi(t) = 1.0 sin(2nft +...
Q1. A single-tone FM signal which can be expressed as, s(t) = 4, cos[2oft+ß sin(21f „t)]...
Q1. A single-tone FM signal which can be expressed as, s(t) = 4, cos[2oft+ß sin(21f „t)] is applied to a square-law device with output voltage v2 related to input voltage vi by vz(t)= av (t) where a is a constant. a. Determine analytic expression of the output signal. b. Explain how such a device can be used to obtain an FM signal with a greater frequency deviation (Af) than that available at the input. Q2. The spectrum of a message...
23. On your new job you have been asked to design a monitoring system for a...
23. On your new job you have been asked to design a monitoring system for a water treatment process. You have chosen a dissolved-oxygen (DO) detector that operates at a frequency of 30 Hz. You have found that there is a significant source of noise at 5.0 kHz, with roughly the same amplitude as the measurement signal. You decide to minimize (90% reduction) the noise at this wavelength by building an RC filter. Diagram the signals in terms of amplitude...
Don't need to do #1. Please go into detail on how you solved #2 and #3 The Fourier transform of the signal r(t) is given by the following figure (X(jw)0 for w> 20) X(ju) 0.8 0.6 0.4 0.2 -10 10...
Don't need to do #1. Please go into detail on how you solved #2
and #3
The Fourier transform of the signal r(t) is given by the following figure (X(jw)0 for w> 20) X(ju) 0.8 0.6 0.4 0.2 -10 10 20 m Page 4 of 5 Final S09 EE315 Signals & Systems The signal is sampled to obtain the signal withFourier transform Xlw 1. (5p) What is the minimum sampling frequency w 2. (10p) Now suppose that the sampling frequency...
3.2 Simple Bandpass Filter Design The L-point averaging filter is a lowpass filter. Its passband width...
3.2 Simple Bandpass Filter Design The L-point averaging filter is a lowpass filter. Its passband width is controlled by L, being inversely proportional to L. In fact, you can use the GUI altidemo to view the frequency response for different averagers and measure the passband widths. It is also possible to create a filter whose passband is centered around some frequency other than zero. One simple way to do this is to define the impulse response of an L-point FIR...
a) Design a low-pass filter using the given circuitry with a cut-off value of 1 kHz and plot the frequency response curve on the given axes 1.0 0.7 0.5 in out 0.0 101 102 103 104 10s Hz b) Design a band-pass filter using the given circuitry with a bandwidth of 500 Hz and a lower cut-off value of 100 Hz, and draw the frequency response curve. Keep all resistors at the same value (i.e. Ri-R-R3-R4). 1.0 0.7 0.5 0.0...
Using the windowing functions discussed in class, design a
low-pass FIR filter with a cutoff frequency of 2 kHz, a minimum
stop band attenuation of 40 dB, and a transition width of 200Hz.
The sampling frequency is 10kHz.
1. Using the windowing functions discussed in class, design a low-pass FIR filter with a cutoff frequency of 2 kHz, a minimum stop band attenuation of 40 dB, and a transition width of 200 Hz. The sampling frequency is 10 kHz 2....
3. With the aid of a diagram, briefly explain th ing principle of a Successive a) Approximation Analog-to-Digital Converter (ADC) b) An ADC has to be designed to convert voltages in the range from -5 V to +5 V, with a resolution below (better than) 1 mV. What is the minimum number of bits required to meet this design specification? An ADC has to be designed to convert input voltage signals with frequency c) components less than or equal o...
3. For the active filter circuit below, complete the following: a) Find the magnitude of the transfer function | H | starting from the nodal equations. b) Find the phase shift of the transfer function (W) c) Find the cutoff frequency fc in Hz d) Is this a high pass or low pass filter? e) Find the passband gain of the filter 62 k2 ANA EVA 22 nF 3.3k f) Given the following input signal: vi(t) = 1.0 sin(2nft +...
Q1. A single-tone FM signal which can be expressed as, s(t) = 4, cos[2oft+ß sin(21f „t)] is applied to a square-law device with output voltage v2 related to input voltage vi by vz(t)= av (t) where a is a constant. a. Determine analytic expression of the output signal. b. Explain how such a device can be used to obtain an FM signal with a greater frequency deviation (Af) than that available at the input. Q2. The spectrum of a message...
23. On your new job you have been asked to design a monitoring system for a water treatment process. You have chosen a dissolved-oxygen (DO) detector that operates at a frequency of 30 Hz. You have found that there is a significant source of noise at 5.0 kHz, with roughly the same amplitude as the measurement signal. You decide to minimize (90% reduction) the noise at this wavelength by building an RC filter. Diagram the signals in terms of amplitude...
Don't need to do #1. Please go into detail on how you solved #2
and #3
The Fourier transform of the signal r(t) is given by the following figure (X(jw)0 for w> 20) X(ju) 0.8 0.6 0.4 0.2 -10 10 20 m Page 4 of 5 Final S09 EE315 Signals & Systems The signal is sampled to obtain the signal withFourier transform Xlw 1. (5p) What is the minimum sampling frequency w 2. (10p) Now suppose that the sampling frequency...
3.2 Simple Bandpass Filter Design The L-point averaging filter is a lowpass filter. Its passband width is controlled by L, being inversely proportional to L. In fact, you can use the GUI altidemo to view the frequency response for different averagers and measure the passband widths. It is also possible to create a filter whose passband is centered around some frequency other than zero. One simple way to do this is to define the impulse response of an L-point FIR...
