Homework Answers

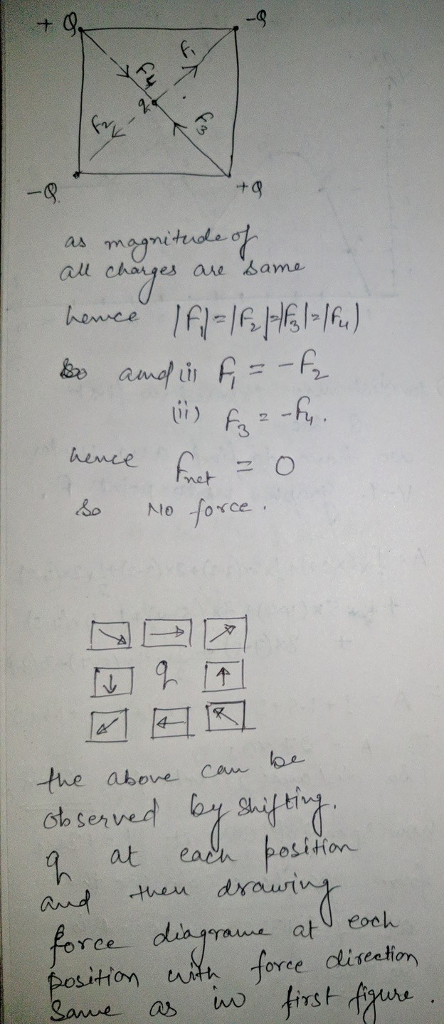

First Draw force diagram as I have drawn in image for net force and its direction calculation
U can draw 8 force diagram for 8 different position and will get resultant as above
Add Answer to:
Consider the arrangement of charges shown in the figure. Four charges of equal magnitude Q but...
Consider the arrangement of charges shown in the figure. Four charges of equal magnitude O but...

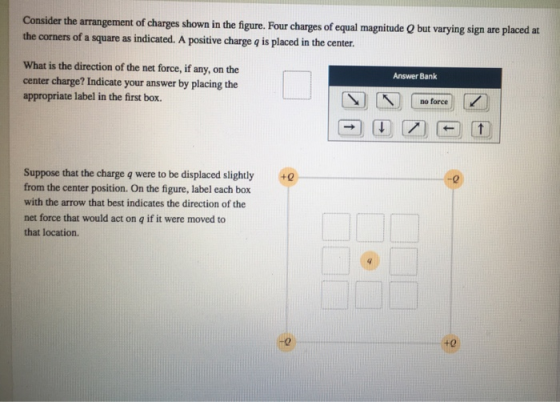

Consider the arrangement of charges shown in the figure. Four charges of equal magnitude O but varying sign are placed at the corners of a square as indicated. A positive charge q is placed in the center. What is the direction of the net force, if any, on the center charge? Indicate your answer by placing the appropriate label in the first box. Answer Bank no force <- Suppose that the charge q were to be displaced slightly from the...
Consider the arrangement of charges shown in the figure below. Four charges of equal magnitude Q...
Consider the arrangement of charges shown in the figure below. Four charges of equal magnitude Q but varying sign are placed at the corners of a square as indicated. A positive charge q is placed in the center. What is the direction of the net force, if any, on the center charge? Indicate your answer by placing the appropriate label here: + Suppose that the charge q were to be displaced slightly from the center position. On the figure to...
Consider the arrangement of charges shown in the figure below. Four charges of equal magnitude Q...
Consider the arrangement of charges shown in the figure below. Four charges of equal magnitude Q but varying sign are placed at the corners of a square as indicated. A positive charge q is placed in the center. What is the direction of the net force, if any, on the Center Charge? Indicate your answer by placing the appropriate la here: Suppose that the charge q were to be displaced slightly from the center position. On the figure to the...
Consider the arrangement of charges shown in the figure below. Four charges of equal magnitude Q...
Consider the arrangement of charges shown in the figure below. Four charges of equal magnitude Q but varying sign are placed at the corners of a square as indicated. A positive charge q is placed in the center. What is the direction of the net force, if any, on the center charge? Indicate your answer by placing the appropriate la here: Suppose that the charge q were to be displaced slightly from the center position. On the figure to the...
In the figure below, four point charges lie on the corners of a square, with a fifth point charge q located at the cen...
In the figure below, four point charges lie on the corners of a square, with a fifth point charge q located at the center. The two left-most charges have the same negative charge q_n, while the two right-most charges have the same positive charge q^,. Assume that the center charge q is negative. What is the direction of the total electric force on the charge q at the center of the square? Indicate the direction by dragging the appropriate arrow...
Consider the following figure. (The four charges are at the corners of a square. Take q...
Consider the following figure. (The four charges are at the
corners of a square. Take q = 1.08 µC and Q =
2.10 µC.)
(a) In the figure, what are the magnitude and direction of the
resultant force on q1? (Take
q1 as the origin of the coordinate system and
measure the angle counterclockwise from the positive
x-axis, which is directed towards the right.)
magnitude
direction
°
(b) What is the resultant force on the center of mass...
Four Charges Part A Four charges Aq , Bq.cq, and Dq (q 2.00 × 10%C) sit...
Four Charges Part A Four charges Aq , Bq.cq, and Dq (q 2.00 × 10%C) sit in a plane at the corners of a square whose sides have length d 23.0 cm, as shown in the diagram below. A charge, Eq, is placed at the origin at the center of the square Bq 0 Dq Cq square of side length, d DATA: A = 4, B = 8, C = 5, D = 2, E-4. Consider the charge at the...
In the figure, four point charges lie on the corners of a square, with a fifth...
In the figure, four point charges lie on the corners of a square, with a fifth point charge q located at the center. The two leftmost charges have the same negative charge qn, and the two rightmost charges have the same positive charge qp Assume that the center charge q is negative. What is the direction of the total electric force.... on the charge q at the center of the square? What is the direction of the electric field at...
In the figure, four point charges lie on the corners of a square, with a fifth...
In the figure, four point charges lie on the corners of a square, with a fifth point charge q located at the center. The two leftmost charges have the same negative charge qn , and the two rightmost charges have the same positive charge Assume that the center charge q is negative. What is the direction of the total electric force In on the charge q at the center of the square? What is the direction of the electric field...
Problems 5-6: Consider an arrangement of four point charges at corners of a square' of side...
Problems 5-6: Consider an arrangement of four point charges at corners of a square' of side s as shown. P5.(a) Let q +1.5 nC, +2.3 nC, ands 12 cm. Determine the force on an electron at the center of the square (b) Let q = + ! .5 nC, Q-_ 2.3 nC, and s = 12 cm. Determine the force on an electron at the center of the square 0 P6. For the conditions in P5(b), where could an electron...
Consider the arrangement of charges shown in the figure. Four charges of equal magnitude O but varying sign are placed at the corners of a square as indicated. A positive charge q is placed in the center. What is the direction of the net force, if any, on the center charge? Indicate your answer by placing the appropriate label in the first box. Answer Bank no force <- Suppose that the charge q were to be displaced slightly from the...
Consider the arrangement of charges shown in the figure below. Four charges of equal magnitude Q but varying sign are placed at the corners of a square as indicated. A positive charge q is placed in the center. What is the direction of the net force, if any, on the center charge? Indicate your answer by placing the appropriate label here: + Suppose that the charge q were to be displaced slightly from the center position. On the figure to...
Consider the arrangement of charges shown in the figure below. Four charges of equal magnitude Q but varying sign are placed at the corners of a square as indicated. A positive charge q is placed in the center. What is the direction of the net force, if any, on the Center Charge? Indicate your answer by placing the appropriate la here: Suppose that the charge q were to be displaced slightly from the center position. On the figure to the...
Consider the arrangement of charges shown in the figure below. Four charges of equal magnitude Q but varying sign are placed at the corners of a square as indicated. A positive charge q is placed in the center. What is the direction of the net force, if any, on the center charge? Indicate your answer by placing the appropriate la here: Suppose that the charge q were to be displaced slightly from the center position. On the figure to the...
In the figure below, four point charges lie on the corners of a square, with a fifth point charge q located at the center. The two left-most charges have the same negative charge q_n, while the two right-most charges have the same positive charge q^,. Assume that the center charge q is negative. What is the direction of the total electric force on the charge q at the center of the square? Indicate the direction by dragging the appropriate arrow...
Consider the following figure. (The four charges are at the
corners of a square. Take q = 1.08 µC and Q =
2.10 µC.)
(a) In the figure, what are the magnitude and direction of the
resultant force on q1? (Take
q1 as the origin of the coordinate system and
measure the angle counterclockwise from the positive
x-axis, which is directed towards the right.)
magnitude
direction
°
(b) What is the resultant force on the center of mass...
Four Charges Part A Four charges Aq , Bq.cq, and Dq (q 2.00 × 10%C) sit in a plane at the corners of a square whose sides have length d 23.0 cm, as shown in the diagram below. A charge, Eq, is placed at the origin at the center of the square Bq 0 Dq Cq square of side length, d DATA: A = 4, B = 8, C = 5, D = 2, E-4. Consider the charge at the...
In the figure, four point charges lie on the corners of a square, with a fifth point charge q located at the center. The two leftmost charges have the same negative charge qn, and the two rightmost charges have the same positive charge qp Assume that the center charge q is negative. What is the direction of the total electric force.... on the charge q at the center of the square? What is the direction of the electric field at...
In the figure, four point charges lie on the corners of a square, with a fifth point charge q located at the center. The two leftmost charges have the same negative charge qn , and the two rightmost charges have the same positive charge Assume that the center charge q is negative. What is the direction of the total electric force In on the charge q at the center of the square? What is the direction of the electric field...
Problems 5-6: Consider an arrangement of four point charges at corners of a square' of side s as shown. P5.(a) Let q +1.5 nC, +2.3 nC, ands 12 cm. Determine the force on an electron at the center of the square (b) Let q = + ! .5 nC, Q-_ 2.3 nC, and s = 12 cm. Determine the force on an electron at the center of the square 0 P6. For the conditions in P5(b), where could an electron...
