Question

Complete the mechanism for the cleavage of the ether by adding any missing atoms, bonds, charges, nonbonding electrons, and curved arrows.

​Please have the answer in the format of the 4 boxes so it is clear what you're doing for each box. Thabks in advance

13 14 15 16 17 18 20 21 22 23 25 26 27 100 100 100 100 100 100 100 100 67 99 100 100 95 100 Question 19 of 28 Complete the mechanism for the cleavage of the ether by adding any missing atoms, bonds, charges, Map A nonbonding electrons, and curved arrows. H3C A O Previous Give Up & View Solution Check Answer Next Ex Hint

Answer 1

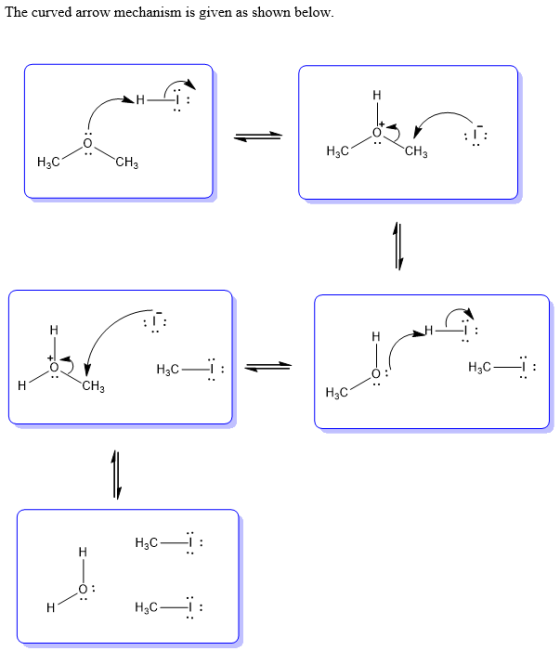

The curved arrow mechanism is given as shown below CH H3C CH3 H3C н.с H3C: CH3 H3C H3C O: H3C

In this reaction, ether is act as a nucleophile and hydrogen iodide is act as an electrophile At first, protonation of ether take place and then iodide ion attacks on the protonated ether, resulting formation of methyl iodide and methanol is take place. After that, methanol gets protonated and finally, water and methyl iodide are formed as the final product
