please simplest part c donot use kmap thank you

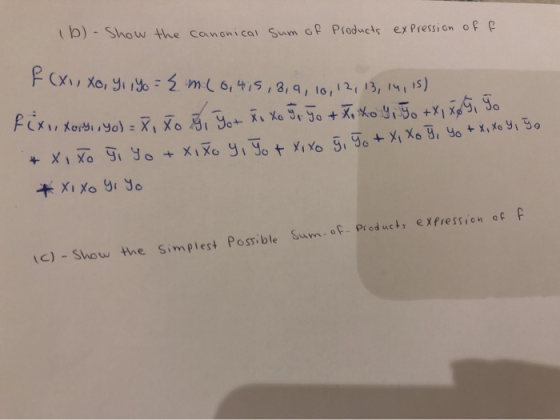

brtho the canoni cal Sum oP Products ex Pression of P F(X Xo, yio 2 m6,415,3, 9, l0,1213, 1M, 15). IC)-Show the Simpies+ Poss
engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

b) f (x1, xo, y1, yo) =  \summ (0, 4, 5, 8, 9, 10, 12, 13, 14, 15)

mo = 0000 = x1'xo'y1'yo'
m4 = 0100 = x1'xoy1'yo'
m5 = 0101 = x1'xoy1'yo
m8 = 1000 = x1xo'y1'yo'
m9 = 1001 = x1xo'y1'yo
m10 = 1010 = x1xo'y1'yo
m12 = 1100 = x1xoy1'yo'
m13 = 1101 = x1xoy1'yo
m14 = 1110 = x1xoy1yo'
m15 = 1111 = x1xoy1yo

The Canonical SOP is
f = x1'xo'y1'yo' + x1'xoy1'yo'+ x1'xoy1'yo+ x1xo'y1'yo'+ x1xo'y1'yo+x1xo'y1'yo+ x1xoy1'yo'+ x1xoy1'yo+ x1xoy1yo'+ x1xoy1yo

c) Given
f = x1'xo'y1'yo' + x1'xoy1'yo'+ x1'xoy1'yo+ x1xo'y1'yo'+ x1xo'y1'yo+x1xo'y1'yo+ x1xoy1'yo'+ x1xoy1'yo+ x1xoy1yo'+ x1xoy1yo
f = x1'y1'yo'(xo' + xo)+ x1'xoy1'yo+ x1xo'y1'(yo'+ yo)+x1xo'y1'yo+ x1xoy1'(yo'+ yo)+ x1xoy1(yo'+ yo)

{ By Distributive law PQ+PR= P(Q+R) }
f = x1'y1'yo'(1)+ x1'xoy1'yo+ x1xo'y1'(1)+x1xo'y1'yo+ x1xoy1'(1)+ x1xoy1(1)
f = x1'y1'yo'+ x1'xoy1'yo+ x1xo'y1'+x1xo'y1'yo+ x1xoy1'+ x1xoy1
f = x1'y1'(yo'+ xoyo)+ x1xo'y1'(1+yo)+ x1xo(y1'+ y1)  { By Distributive law PQ+PR= P(Q+R) }
f = x1'y1'(yo'+ xo)(yo'+ yo)+ x1xo'y1'(1+yo)+ x1xo(y1'+ y1)  { By Distributive law P+QR = (P+Q)(P+R) }
f = x1'y1'(yo'+ xo)(1)+ x1xo'y1'(1)+ x1xo(1) { We know that P+P'=1 }
f = x1'y1'(yo'+ xo)+ x1xo'y1'+ x1xo
f = x1'y1'yo'+ x1'xoy1'+ x1xo'y1'+ x1xo
f = y1’yo’+x1yo’+xoy1’+x1xo+x1y1’

The Simplified SOP is  f = y1’yo’+x1yo’+xoy1’+x1xo+x1y1’

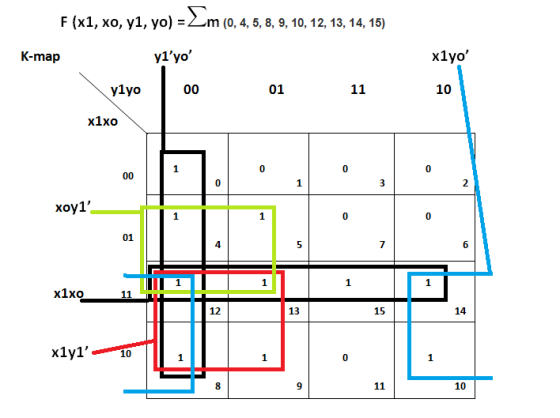

By Using K-map

F (x1, xo, y1, yo) ,4, 5, 8, 9, 10, 12, 13, 14, 15) y1yo х1уo К-map 10 y1yo 00 01 11 х1хо 0 00 0 3 хоу1 1 1 0 01 4 5 7 6 1

The Simplified SOP of f = y1’yo’+x1yo’+xoy1’+x1xo+x1y1’
