Find the compressive strength using the Elastic critical buckling stress equations for Fe and Fcr. (ASD...
Find the compressive strength using the Elastic critical buckling stress equations for Fe and Fcr. (ASD method).
column = w10 x 88
length = 16 ft
support = pinned-fixed
Fy = 50ksi

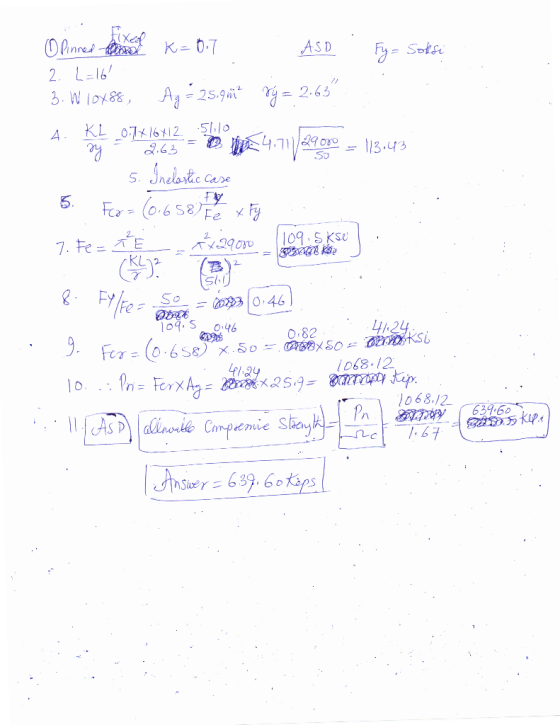

Homework Answers
Add Answer to:
Find the compressive strength using the Elastic
critical buckling stress equations for Fe and Fcr. (ASD...
Determine the design compressive strength, ФР", based upon the flexural buckling for the built-up shape sho...
Determine the design compressive strength, ФР", based upon the flexural buckling for the built-up shape shown. The column length, L, is 28 ft. Assume that the components are connected in such a way that the gross section is fully effective and the ends of the column are fully fixed. Use ASTM A36 steel. Check and determine if the column conforms to the recommended slendernes ratio for compressive members. Assume a 1/2 in. gap between each angle. Problem 5 (20 points)...
A HSS 12x 8 x % with Fy 46 ksi is used as a column member....
A HSS 12x 8 x % with Fy 46 ksi is used as a column member. The length of the member is 15 feet. Both ends are pinned, and there is an additional support against the weak axis buckling at a point 6 ft. from the top (Fig. P3). Determine the design compressive strength of the column for LRFD. 15' y-axis x-axis Fig, P3
Question 1: Two columns are braced about the strong and weak axis as shown in the...
Question 1: Two columns are braced about the strong and weak axis as shown in the figures. Both columns are A992 steel. Column 1 (20 points) a. (7 points) Use Section E3 of the specification (i.e., equations) to determine the factored compressive strength (P)considering the limit state of flexural buckling. i. (2 points) Does the strong axis or the 20 ft weak axis control? Justify your answer. ii. (2 points) Does elastic or inelastic buckling control? Justify your answer (5...
11. (10 points) Check to determine if a W14x159 used as a column can support an...
11. (10 points) Check to determine if a W14x159 used as a column can support an axial dead load of 250k and an axial live load of 1000k if the length of the column is 14 feet and the value of G for Joint A has been determined to be 0.8. Use the LRFD Design Method and assume that the columns are bending about their y axis as shown. (Hint: The answer is in the Manual) W14x159 Fixed Base at...
also find ry Information P Flag question A W8x35 is used as a column. The weak...
also find ry
Information P Flag question A W8x35 is used as a column. The weak axis is braced at 28 ft from the bottom and the bottom end condition is fixed in all directions. The top is pinned in all directions and weak axis bracing is pinned. Find the critical load of buckling and the critical stress of buckling. Total Length = 50ft. Question 24 P Flag question Not yet answered Points out of 1.00 x = Select one:...
Determine the design compressive strength of a W16 x 67 that is fixed at the bottom...
Determine the design compressive strength of a W16 x 67 that is fixed at the bottom and free at the top (cantilever). The member is 15 ft in length and is A992 steel. Problem 3: Design of Steel Compression Memb Consider the cantilever member ofAn architectural constraint has arisen during the design and the nominal depth of the column cannot exceed 15 inches. Assuming that a factored axial load of 165 kips is expected to act on the column. Select...
Information P Flag question A W8x35 is used as a column. The weak axis is braced...
Information P Flag question A W8x35 is used as a column. The weak axis is braced at 28 ft from the bottom and the bottom end condition is fixed in all directions. The top is pinned in all directions and weak axis bracing is pinned. Find the critical load of buckling and the critical stress of buckling Total Length - 50ft. Question 24 Not yet answered Points out of 1,00 P Flag question X = Select one: O a. 5.51...
How do I solve this? Problem 2(50 points) The roof of the Edwin A. Stevens building...
How
do I solve this?
Problem 2(50 points) The roof of the Edwin A. Stevens building is to be redesigned to accommodate a billboard for Stevens Institute of Technology. The new billboard will weigh 40 kips and be supported equally by two columns located 9 ft from the rear of the building. The beams supporting the new roof will be simply supported as shown. (Note there is a 5 ft overhang at the front of the building). For the grade...
Please help! I need help finding and solving equations of equilibrium to find the max tension in ...
please help! I need help finding and solving equations of
equilibrium to find the max tension in the cables and the angle
that results in the maximum tension, I also have pictures below of
the work I have so far all I really need is equations for the 4
cable part and that's it but I put the whole assignment so you
could see thanks!
Tower Support System Challenge Challenge Scenario: Due to weather conditions, a major communication tower n...
Determine the design compressive strength, ФР", based upon the flexural buckling for the built-up shape shown. The column length, L, is 28 ft. Assume that the components are connected in such a way that the gross section is fully effective and the ends of the column are fully fixed. Use ASTM A36 steel. Check and determine if the column conforms to the recommended slendernes ratio for compressive members. Assume a 1/2 in. gap between each angle. Problem 5 (20 points)...
A HSS 12x 8 x % with Fy 46 ksi is used as a column member. The length of the member is 15 feet. Both ends are pinned, and there is an additional support against the weak axis buckling at a point 6 ft. from the top (Fig. P3). Determine the design compressive strength of the column for LRFD. 15' y-axis x-axis Fig, P3
Question 1: Two columns are braced about the strong and weak axis as shown in the figures. Both columns are A992 steel. Column 1 (20 points) a. (7 points) Use Section E3 of the specification (i.e., equations) to determine the factored compressive strength (P)considering the limit state of flexural buckling. i. (2 points) Does the strong axis or the 20 ft weak axis control? Justify your answer. ii. (2 points) Does elastic or inelastic buckling control? Justify your answer (5...
11. (10 points) Check to determine if a W14x159 used as a column can support an axial dead load of 250k and an axial live load of 1000k if the length of the column is 14 feet and the value of G for Joint A has been determined to be 0.8. Use the LRFD Design Method and assume that the columns are bending about their y axis as shown. (Hint: The answer is in the Manual) W14x159 Fixed Base at...
also find ry
Information P Flag question A W8x35 is used as a column. The weak axis is braced at 28 ft from the bottom and the bottom end condition is fixed in all directions. The top is pinned in all directions and weak axis bracing is pinned. Find the critical load of buckling and the critical stress of buckling. Total Length = 50ft. Question 24 P Flag question Not yet answered Points out of 1.00 x = Select one:...
Determine the design compressive strength of a W16 x 67 that is fixed at the bottom and free at the top (cantilever). The member is 15 ft in length and is A992 steel. Problem 3: Design of Steel Compression Memb Consider the cantilever member ofAn architectural constraint has arisen during the design and the nominal depth of the column cannot exceed 15 inches. Assuming that a factored axial load of 165 kips is expected to act on the column. Select...
Information P Flag question A W8x35 is used as a column. The weak axis is braced at 28 ft from the bottom and the bottom end condition is fixed in all directions. The top is pinned in all directions and weak axis bracing is pinned. Find the critical load of buckling and the critical stress of buckling Total Length - 50ft. Question 24 Not yet answered Points out of 1,00 P Flag question X = Select one: O a. 5.51...
How
do I solve this?
Problem 2(50 points) The roof of the Edwin A. Stevens building is to be redesigned to accommodate a billboard for Stevens Institute of Technology. The new billboard will weigh 40 kips and be supported equally by two columns located 9 ft from the rear of the building. The beams supporting the new roof will be simply supported as shown. (Note there is a 5 ft overhang at the front of the building). For the grade...
please help! I need help finding and solving equations of
equilibrium to find the max tension in the cables and the angle
that results in the maximum tension, I also have pictures below of
the work I have so far all I really need is equations for the 4
cable part and that's it but I put the whole assignment so you
could see thanks!
Tower Support System Challenge Challenge Scenario: Due to weather conditions, a major communication tower n...
