6 (10 points) What are incorrect in the following assembly program? 1 AREA myCode, CODE EXPORT...

Question

Question

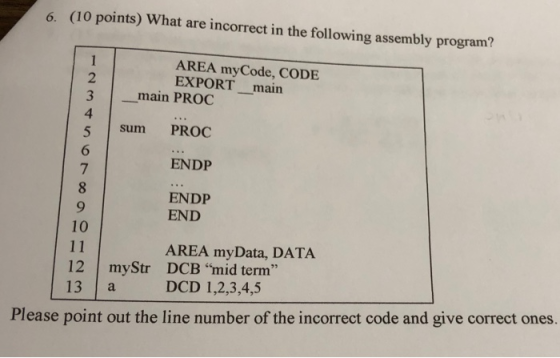

6 (10 points) What are incorrect in the following assembly program? 1 AREA myCode, CODE EXPORT main main PROC 4 PROC sum 5 6

engineering Computer-Science

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

The modified code is written in BOLD format

myStr should end with null. So, it is attained by adding 0.

Program :-

AREA myCode, CODE
   EXPORT __main
__main PROC
   .....
sum       PROC
   .....
       ENDP
   .....
   ENDP
   END

   AREA myData, DATA
myStr   DCB "mid term",0
a       DCD   1,2,3,4,5

Add a comment
