Complex Power

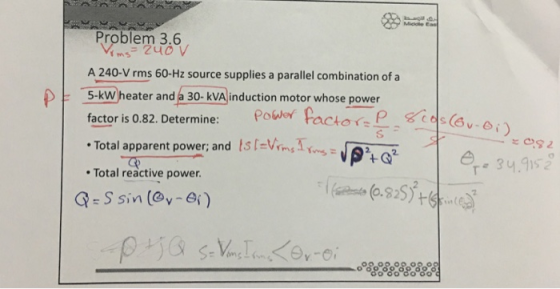

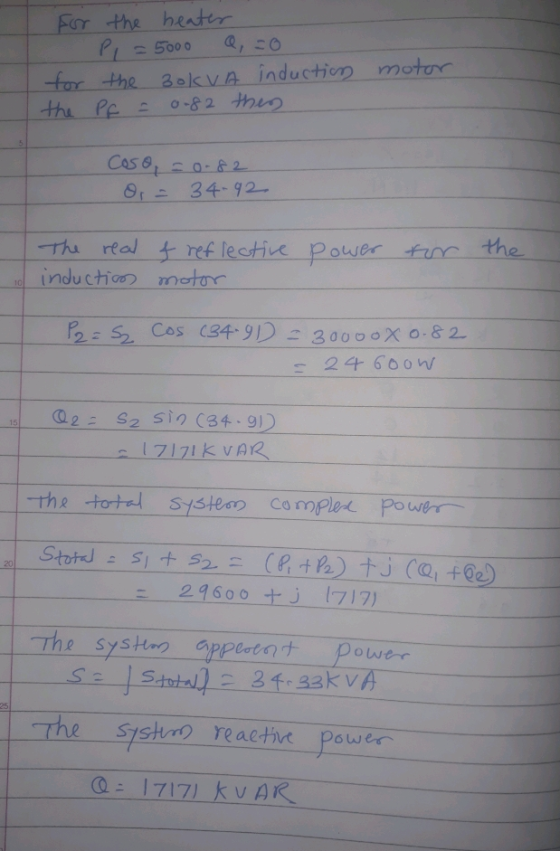

Middle t A 240-Vrms 60-Hz source supplies a parallel combination of a 5-kWheater and...
please answer all parts with steps (15%) A three phase source supplies power to an induction...
please answer all parts with steps
(15%) A three phase source supplies power to an induction motor drawing 10 kW at at 240 V and 0.60 power factor lagging, Find, >(a) The reactive power supplied by the source. (o) The apparent power drawn from the source. (c) The complex power drawn from the source. (d)The magnitude of the source current. If a capacitor is connected in parallel with the load, will the source current magnitude increase or decrease. (e)
A single phase motor draws a current of 30 A from a 240 V, 60 Hz....
A single phase motor draws a current of 30 A from a 240 V, 60 Hz. line. Refer to Problem Description 7.2. A capacitor with a reactance of 31 Ω is then connected in parallel with the motor. A Wattmeter connected to the circuit gives a reading of 5.4 kW. How much reactive power does the capacitor deliver? How much net reactive power remains in the circuit? How much apparent power does the circuit now consume? What is the power...
1. (10 points total) A source supplies power to the following three loads connected in parallel:...
1. (10 points total) A source supplies power to the following three loads connected in parallel: (1) a lighting load drawing 10 kW, (2) an induction motor drawing 10 kVA at 0.90 power factor lagging, and (3) a synchronous motor operating at 10 hp, 85% efficiency and 0.95 power factor leading (1 hp 0.746 kW). (a) Determine the real, reactive, and apparent power delivered by the source. (8 points)
P3- A source supplies power to the following three load connected in parallel: (1) a light...
P3- A source supplies power to the following three load connected in parallel: (1) a light load drawing 20 kW, (2) an induction motor drawing 10 KVA at 0.90 power factor lagging, and (3) a synchronous motor operating at 10 hp, 85% efficiency and 0.95 power factor leading (1 hp = 0.746 kW), Determine the real, reactive, and apparent power delivered by the source. Also, draw the source power triangle.
P3- A source supplies power to the following three load connected in parallel: (1) a light...
P3- A source supplies power to the following three load connected in parallel: (1) a light load drawing 20 kW. (2) an induction motor drawing 10 kVA at 0.90 power factor lagging, and (3) a synchronous motor operating at 10 hp, 85% efficiency and 0.95 power factor leading (1 hp = 0.746 kW). Determine the real, reactive, and apparent power delivered by the source. Also, draw the source power triangle.
A single-phase electrical motor draws a current of 20 A from 240, 60 Hz line. A...
A single-phase electrical motor draws a current of 20 A from 240, 60 Hz line. A Fluke wattmeter is connected into line gives an active power (P) reading of 3,792 W. with line, neutral, appropriate fuse, switch, and motor itself. (DO NOT forget chassis ground of the motor for the safety of people working in/around the motor). Show a simple wiring diagram (a) Calculate the power factor (cost) of the motor and reactive power () it absorbs. (b) If we...
Q3. from a 240 V, 50 Hz supply as shown in the Figure 3. 24020 Vrms...
Q3. from a 240 V, 50 Hz supply as shown in the Figure 3. 24020 Vrms Inductive load with 0.6 lagging Load current 50 A Ohle Capacitor to be connected for power factor improvement Figure 3: a) Assuming that the capacitor shown in the figure is disconnected, calculate the load real (PL), reactive(Q1), and apparent power(SL) (5 marks) b) Draw the load power triangle and indicate real (P.) reactive (Q.), apparent (SL) power, and power factor angle (@.) (5 marks)...
Problem #2 You have a 1000 W electric motor connected to a 200 Vms, 60 Hz...
Problem #2 You have a 1000 W electric motor connected to a 200 Vms, 60 Hz source, and the resulting power factor is 0.8 lagging. (Hint: Based on the units, is power rating of the motor real power or apparent power?) a. What is the voltage in terms of a phasor? b. By how many degrees does the current lag the voltage? c. What is the RMS current drawn by the motor? d. What is the current in terms of...
Two loads, A and B, are connected in parallel across a 1-kV-rms 60-Hz line, as shown...
Two loads, A and B, are connected in parallel
across a 1-kV-rms 60-Hz line, as shown in (Figure 1). Load
Aconsumes 10 kW with a 60 percent lagging power factor.
Load B has an apparent power of 20 kVA with an 80 percent
lagging power factor.
a) Find the power delivered by the source.
b) Find the reactive power delivered by the source.
c) Find the apparent power delivered by the source.
d) What is the power factor seen by...
A 110-V rms,60-Hz source is applied to a load impedance Z The apparent power entering the...
A 110-V rms,60-Hz source is applied to a load impedance Z The apparent power entering the load is 120 VA at a power factor of 0.507 lagging References eBook& Resources Learning Objective: Understand apparent power power and power factor Section Break Difficulty Medium value 10.00 points Calculate the complex The complex power is VA. Hints References eBook & Resources
please answer all parts with steps
(15%) A three phase source supplies power to an induction motor drawing 10 kW at at 240 V and 0.60 power factor lagging, Find, >(a) The reactive power supplied by the source. (o) The apparent power drawn from the source. (c) The complex power drawn from the source. (d)The magnitude of the source current. If a capacitor is connected in parallel with the load, will the source current magnitude increase or decrease. (e)
1. (10 points total) A source supplies power to the following three loads connected in parallel: (1) a lighting load drawing 10 kW, (2) an induction motor drawing 10 kVA at 0.90 power factor lagging, and (3) a synchronous motor operating at 10 hp, 85% efficiency and 0.95 power factor leading (1 hp 0.746 kW). (a) Determine the real, reactive, and apparent power delivered by the source. (8 points)
P3- A source supplies power to the following three load connected in parallel: (1) a light load drawing 20 kW, (2) an induction motor drawing 10 KVA at 0.90 power factor lagging, and (3) a synchronous motor operating at 10 hp, 85% efficiency and 0.95 power factor leading (1 hp = 0.746 kW), Determine the real, reactive, and apparent power delivered by the source. Also, draw the source power triangle.
P3- A source supplies power to the following three load connected in parallel: (1) a light load drawing 20 kW. (2) an induction motor drawing 10 kVA at 0.90 power factor lagging, and (3) a synchronous motor operating at 10 hp, 85% efficiency and 0.95 power factor leading (1 hp = 0.746 kW). Determine the real, reactive, and apparent power delivered by the source. Also, draw the source power triangle.
A single-phase electrical motor draws a current of 20 A from 240, 60 Hz line. A Fluke wattmeter is connected into line gives an active power (P) reading of 3,792 W. with line, neutral, appropriate fuse, switch, and motor itself. (DO NOT forget chassis ground of the motor for the safety of people working in/around the motor). Show a simple wiring diagram (a) Calculate the power factor (cost) of the motor and reactive power () it absorbs. (b) If we...
Q3. from a 240 V, 50 Hz supply as shown in the Figure 3. 24020 Vrms Inductive load with 0.6 lagging Load current 50 A Ohle Capacitor to be connected for power factor improvement Figure 3: a) Assuming that the capacitor shown in the figure is disconnected, calculate the load real (PL), reactive(Q1), and apparent power(SL) (5 marks) b) Draw the load power triangle and indicate real (P.) reactive (Q.), apparent (SL) power, and power factor angle (@.) (5 marks)...
Problem #2 You have a 1000 W electric motor connected to a 200 Vms, 60 Hz source, and the resulting power factor is 0.8 lagging. (Hint: Based on the units, is power rating of the motor real power or apparent power?) a. What is the voltage in terms of a phasor? b. By how many degrees does the current lag the voltage? c. What is the RMS current drawn by the motor? d. What is the current in terms of...
Two loads, A and B, are connected in parallel
across a 1-kV-rms 60-Hz line, as shown in (Figure 1). Load
Aconsumes 10 kW with a 60 percent lagging power factor.
Load B has an apparent power of 20 kVA with an 80 percent
lagging power factor.
a) Find the power delivered by the source.
b) Find the reactive power delivered by the source.
c) Find the apparent power delivered by the source.
d) What is the power factor seen by...
A 110-V rms,60-Hz source is applied to a load impedance Z The apparent power entering the load is 120 VA at a power factor of 0.507 lagging References eBook& Resources Learning Objective: Understand apparent power power and power factor Section Break Difficulty Medium value 10.00 points Calculate the complex The complex power is VA. Hints References eBook & Resources
