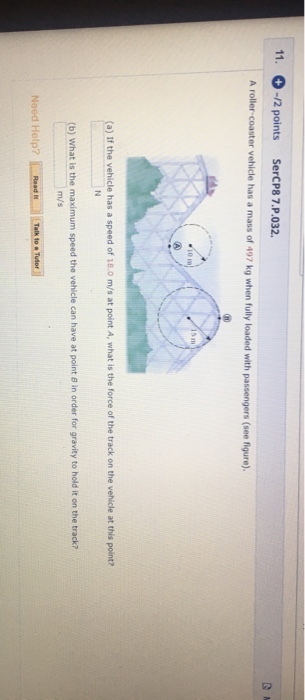

11. -/2 points SerCP8 7.P.032. DN A roller coaster vehicle has a mass of 497 kg...

Question

Question

science physics

Answer 1

Answer #1

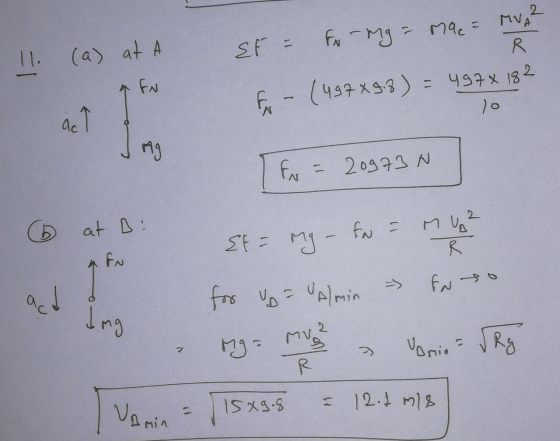

2 MVA Mac= fn My 11. (a) at A SF = R FN 497x 132 A-1439x3) ac 2 og73 N at D Mレ fN- 1 1 > frsvoAmin oni JR R Vamia IS3-5 34 1.

Answer 2

Similar Homework Help Questions

4. 12.5 points Y SERCP11 7.4.P.032. A roller-coaster vehicle has a mass of 435 kg when...

4. 12.5 points Y SERCP11 7.4.P.032. A roller-coaster vehicle has a mass of 435 kg when fully loaded with passengers (see figure). (a) If the vehicle has a speed of 15.0 m/s at point , what is the force (in N) of the track on the vehicle at this point? (b) What is the maximum speed (in m/s) the vehicle can have at point in order for gravity to hold it on the track? 2 m/s Need Help? Read It...
A roller-coaster vehicle has a mass of 504 kg when fully loaded with passengers (see figure)....

A roller-coaster vehicle has a mass of 504 kg when fully loaded with passengers (see figure). (a) If the vehicle has a speed of 20.0 m/s at point A, what is the force of the track on the vehicle at this point? (b) What is the maximum speed the vehicle can have at point B in order for gravity to hold it on the track? m/s
A roller-coaster car has a mass of 504 kg when fully loaded with passengers (Fig. P6.19)...

A roller-coaster car has a mass of 504 kg when fully loaded with passengers (Fig. P6.19) 5.01 10.0 m Figure P6.19 (a) If the vehicle has a speed of 19.3 m/s at point A, what is the force exerted by the track on the car at this point? (b) What is the maximum speed the vehicle can have at B and still remain on the track? m/s

.12 points PSE6 6.P019. My Notes A roller-coaster car has a mass of 501 kg when...

.12 points PSE6 6.P019. My Notes A roller-coaster car has a mass of 501 kg when fully loaded with passengers (Fig. P6.19) 5.0 10.0m Figure P6.19 (a) If the vehicle has a speed of 21.0 m/s at point A, what is the force exerted by the track on the car at this point? (b) What is the maximum speed the vehicle can have at B and still remain on the track? m/s
A roller-coaster car has a mass of 498 kg when fully loaded with passengers. The path...

A roller-coaster car has a mass of 498 kg when fully loaded with passengers. The path of the coaster from its initial point shown in the figure to point B involves only up-and- down motion (as seen by the riders), with no motion to the left or right. Assume the roller-coaster tracks at points and Bare parts of vertical circles of radius r1 = 10.0 m and r2 = 15.0 m, respectively. (a) If the vehicle has a speed of...
A roller coaster, loaded with passengers, has a mass of 2 500 kg; the radius of...

A roller coaster, loaded with passengers, has a mass of 2 500 kg; the radius of curvature of the track at the bottom point of the dip is 24 m. If the vehicle has a speed of 18 m/s at this point, what force is exerted on the vehicle by the track? (g = 9.8 m/s2) 2.3 x 104 N 4.7 x 104 N 5.8 x 104 N 7.3 x 104 N

7. + -/10 points SerPSE10 6.2.OP.012. My Notes + Ask Your Teacher A roller-coaster car has...

7. + -/10 points SerPSE10 6.2.OP.012. My Notes + Ask Your Teacher A roller-coaster car has a mass of 509 kg when fully loaded with passengers. The path of the coaster from its initial point shown in the figure to point B involves only up-and-down motion (as seen by the riders), with no motion to the left or right. Assume the roller-coaster tracks at points A and B are parts of vertical circles of radius r , = 10.0 m...
t 435 kg when fully loaded with passengers. It can only move in a vertical plane....

t 435 kg when fully loaded with passengers. It can only move in a vertical plane. The roller coaster moves in arcs of two vertical aircles when it moves on the track as shown in the figure. The radius of the arc at point A is r, 10 m, and the radius at point B is, r2 15 m. a) If the vehicle has a speed of 19.0 m/s at point A, what is the force of the track on...
A roller-coaster car has a mass of 500 kg when fully loaded with passengers At the...

A roller-coaster car has a mass of 500 kg when fully loaded with passengers At the bottom of a circular dip of radius 40 m (as shown in the figure) the car has a speed of 16 m/s. What is the magnitude of the force of the track on the car at the bottom of the dip?

A roller-coaster car has a mass of 660 kg when fully loaded with passengers. The car...

A roller-coaster car has a mass of 660 kg when fully loaded with passengers. The car passes over a hill of radius 15 m, as shown. At the top of the hill, the car has a speed of 8.2 m/s. What is the force of the track on the car at the top of the hill?
