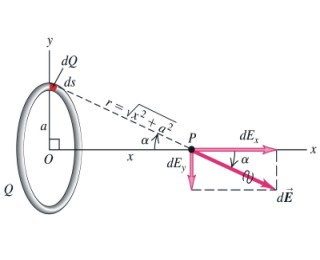

A ring-shaped conductor with radius a = 2.90 cm has a total positive charge Q = 0.121 nC uniformly distributed around it.(Figure 1)

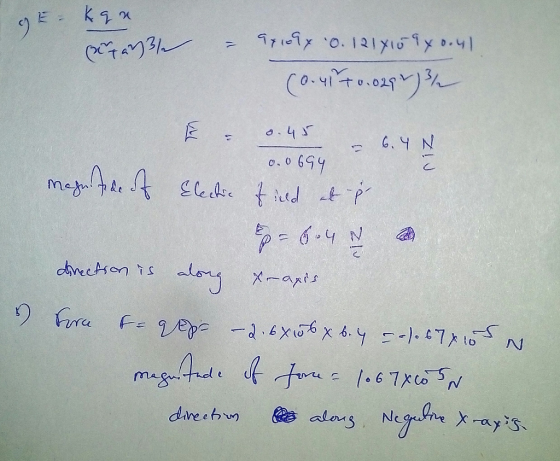

What is the magnitude of the electric field at point P, which is on the positive x-axis at x = 41.0 cm ?
What is the direction of the electric field at point P?
A particle with a charge of − 2.60 μC is placed at the point P described in part A. What is the magnitude of the force exerted by the particle on the ring?
What is the direction of the force exerted by the particle on the ring?
Homework Answers
Add Answer to:
A ring-shaped conductor with radius a = 2.90 cm has a total
positive charge Q =...
1)A ring-shaped conductor with radius a = 3.00 cm has a total positive charge Q =...
1)A ring-shaped conductor with radius a = 3.00 cm has a total
positive charge Q = 0.124 nC uniformly distributed around
it.(Figure 1) What is the magnitude of the electric field at point
P, which is on the positive x-axis at x = 36.0 cm ?
2)A particle with a charge of − 2.10 μC is placed at the point P
described in part A. What is the magnitude of the force exerted by
the particle on the ring?
d0...
A ring-shaped conductor with radius a = 2.10cm has a total positive charge Q = 0.120nC...
A ring-shaped conductor with radius a = 2.10cm has a
total positive charge Q = 0.120nC uniformly distributed
around it.
A. What is the magnitude of the
electric field at point P, which is on the positive
x-axis at x = 39.0cm? (in N/C)
B. What is the magnitude of the
electric field at point P, which is on the positive
x-axis at x = 39.0cm? (+x-direction or
-x-direction)
C. A particle with a charge of ?
2.90?C is placed...
1)A ring-shaped conductor with radius a = 3.00 cm has a total positive charge Q =...
1)A ring-shaped conductor with radius a = 3.00 cm has a total positive charge Q = 0.124 nC uniformly distributed around it.(Figure 1) What is the magnitude of the electric field at point P, which is on the positive x-axis at x = 36.0 cm ? 2)A particle with a charge of − 2.10 μC is placed at the point P described in part A. What is the magnitude of the force exerted by the particle on the ring?
A ring-shaped conductor with radius aaa = 3.00 cmcm has a total positive charge QQQ =...
A ring-shaped conductor with radius aaa = 3.00 cmcm has a total positive charge QQQ = 0.123 nCnC uniformly distributed around itA ring-shaped conductor with radius aaa = 3.00 cmcm has a total positive charge QQQ = 0.123 nCnC uniformly distributed around it a)What is the magnitude of the electric field at point P, which is on the positive x-axis at xxx = 43.0 cmcm ? c) A particle with a charge of −− 2.50 μCμC is placed at the...
Please explain part A B C and D of this problem Constants A ring-shaped conductor with...
Please explain part A B C and D of this problem
Constants A ring-shaped conductor with radius a 2.20 cm has a Part A total positive charge Q-0.129 nC uniformly distributed around it.(Figure 1) What is the magnitude of the electric field at point P, which is on the positive x-axis at z = 44.0 cm ? You may want to review (Pages 699- 704) Figure < 1of1 > N/C Submit Previous Answers Request Answer ds X Incorrect; Try Again;...
Ring of Charge A uniform circular ring of charge Q =-5.70 μ C and radius R...
Ring of Charge A uniform circular ring of charge Q =-5.70 μ C and radius R = 1.28 cm is located in the x-y plane, centered on the origin as shown in the figure Part A What is the magnitude of the electric field, E at the origin? 0.000 N/c The direction of the electric field, E at the origin? Incorrect -Y Incorrect Some other direction Incorrect -Z Correct: The electric field is zero Incorrect -X Incorrect +Z Incorrect +X...
Two charges, Q1=2.90 μC, and Q2=5.30 μC are located at points (0,-2.00 cm ) and (0,+2.00 cm), as shown in the figure.
Two charges, Q1=2.90 μC, and Q2=5.30 μC are located at points (0,-2.00 cm ) and (0,+2.00 cm), as shown in the figure. What is the magnitude of the electric field at point P, located at (5.00 cm, 0), due to Q1 alone? The electric field at position P due to charge Q1 is not influenced by charge Q2. Therefore, ignore charge Q2 and apply Coulomb's Law. Remember to convert all units to the SI unit system. What is the x-component of the total...
A uniform circular ring of charge Q-5.00 HC and radius R 1.24 cm is located in...
A uniform circular ring of charge Q-5.00 HC and radius R 1.24 cm is located in the x-y plane, centered on the origin as shown in the figure What is the magnitude of the electric field, [(E)\vec] at the origin? The direction of the electric field, [(E)vec] at the origin? The electric field is zero O -Y Some other direction Submit Answer Tries o/5 what is the maqnitude of the electric field, [(E)\vec] at point P, located at z =...
A uniformly charged ring of radius 4 cm has a total charge of 64 μC. The...
A uniformly charged ring of radius 4 cm has a total charge of 64 μC. The value of the Coulomb constant is 8.98755 × 109 N · m2/C2 . Find the magnitude of the electric field on the axis of the ring at 0.86 cm from the center of the ring. Answer in units of N/C.
A uniformly charged ring of radius 10.0 cm has a total charge of 50.0 μC. Find...
A uniformly charged ring of radius 10.0 cm has a total charge of 50.0 μC. Find the electric field on the axis of the ring at the following distances from the center of the ring. (Choose the x-axis to point along the axis of the ring.) (a) 1.00 cm What is the general expression for the electric field along the axis of a uniformly charged ring? î MN/C (b) 5.00 cm What is the general expression for the electric field...
1)A ring-shaped conductor with radius a = 3.00 cm has a total
positive charge Q = 0.124 nC uniformly distributed around
it.(Figure 1) What is the magnitude of the electric field at point
P, which is on the positive x-axis at x = 36.0 cm ?
2)A particle with a charge of − 2.10 μC is placed at the point P
described in part A. What is the magnitude of the force exerted by
the particle on the ring?
d0...
A ring-shaped conductor with radius a = 2.10cm has a
total positive charge Q = 0.120nC uniformly distributed
around it.
A. What is the magnitude of the
electric field at point P, which is on the positive
x-axis at x = 39.0cm? (in N/C)
B. What is the magnitude of the
electric field at point P, which is on the positive
x-axis at x = 39.0cm? (+x-direction or
-x-direction)
C. A particle with a charge of ?
2.90?C is placed...
Please explain part A B C and D of this problem
Constants A ring-shaped conductor with radius a 2.20 cm has a Part A total positive charge Q-0.129 nC uniformly distributed around it.(Figure 1) What is the magnitude of the electric field at point P, which is on the positive x-axis at z = 44.0 cm ? You may want to review (Pages 699- 704) Figure < 1of1 > N/C Submit Previous Answers Request Answer ds X Incorrect; Try Again;...
Ring of Charge A uniform circular ring of charge Q =-5.70 μ C and radius R = 1.28 cm is located in the x-y plane, centered on the origin as shown in the figure Part A What is the magnitude of the electric field, E at the origin? 0.000 N/c The direction of the electric field, E at the origin? Incorrect -Y Incorrect Some other direction Incorrect -Z Correct: The electric field is zero Incorrect -X Incorrect +Z Incorrect +X...
A uniform circular ring of charge Q-5.00 HC and radius R 1.24 cm is located in the x-y plane, centered on the origin as shown in the figure What is the magnitude of the electric field, [(E)\vec] at the origin? The direction of the electric field, [(E)vec] at the origin? The electric field is zero O -Y Some other direction Submit Answer Tries o/5 what is the maqnitude of the electric field, [(E)\vec] at point P, located at z =...
