.In a particle accelerator there is a magnetic field and an electric field perpendicular to each...

.In a particle accelerator there is a magnetic field and an electric field perpendicular to each other. A charged particle traverses the area where both fields meet without deviating from its path. The magnitude of the magnetic field is 0.500 T and the electric field has a magnitude of 2.5 kV / m. Find the speed of the particle.

science   physics
1 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

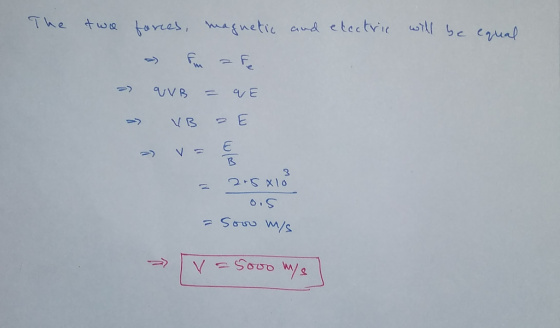

Answer #1

rcas

0 0
Add a comment
