Two charges are located on the x axis: q1 = +6.5C at x1 = +5.0 cm,...

Two charges are located on the x axis: q1 = +6.5C at x1 = +5.0 cm, and q2 = +6.5C at x2 = -5.0 cm. Two other charges are located on the y axis: q3 = +3.6C at y3 = +4.5 cm, and q4 = -9.6C at y4 = +6.8 cm. Find (a) the magnitude and (b) the direction of the net electric field at the origin.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

We use the expression of electric field ar a point due to a point charge and principle of superposition to find the net electric field at the origin.. q1 and q2 produced equal strength field in the opposite directions. Hence their fields add up to zero

The field due to a positive point charge points away from the charge whereas the field due to negative point charge points towards the charge.

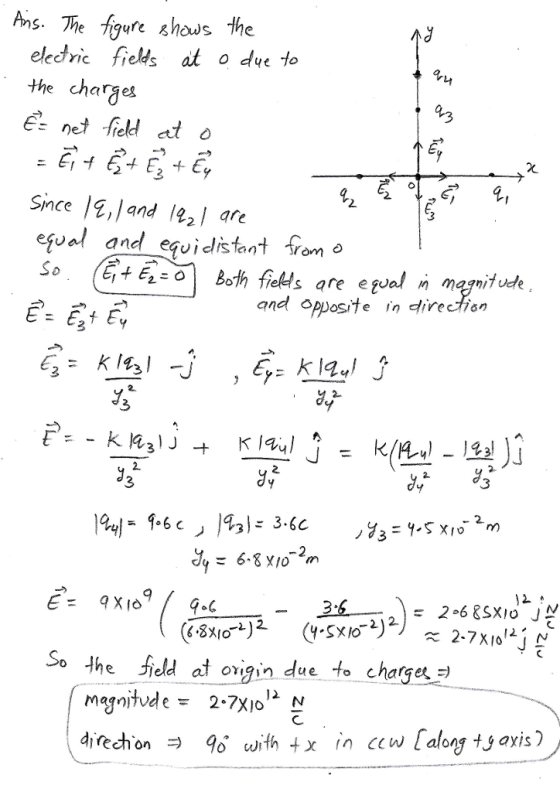

Ans. The fgure shows the eledric fieMs at odve to the charges net ield eto 2 Since 1%) and 1%) are egual and equidistant from o 2. 3 and opposite eion 3 2 3 3 So the field at ongin due to charges direcho

0 0
