Problem 2: (40 pts) Part A: (20pts) A third-order system has an of Y(s)-L[y(t) corresponding to...
5- For the following system: x( Input: x(t)s u(t) Output: y() With the initial condition y(0) 1...
5- For the following system: x( Input: x(t)s u(t) Output: y() With the initial condition y(0) 1, y(O)-0, RI-1, R2-12, CI-2F, C2-1F. Identify the natural and forced response of the system a) Find the zero input response. b) Unit impulse response. c) zero state response. d) The total response. e Identify the natural and forced response of the system.
5- For the following system: x(
Input: x(t)s u(t) Output: y() With the initial condition y(0) 1, y(O)-0, RI-1, R2-12, CI-2F,...
Problem 1: Given the transfer function from input u(t) to output y(t), Y (s) U(s) = s 2 − 4s + 3 (s 2 + 6s + 8)(s 2 + 25...
Problem 1: Given the transfer function from input u(t) to output y(t), Y (s) U(s) = s 2 − 4s + 3 (s 2 + 6s + 8)(s 2 + 25) (a) Develop a state space model for this transfer function, in the standard form x˙ = Ax + Bu y = Cx + Du (b) Suppose that zero input is applied, such that u = 0. Perform a modal analysis of the state response for this open-loop system. Your...
Problem 1 Given the transfer function from input u(t) to output y(t), s2-4s +3 Y(s) U(s) (s2 + 6s + 8)(82 + 25) (a) Dev...
Problem 1 Given the transfer function from input u(t) to output y(t), s2-4s +3 Y(s) U(s) (s2 + 6s + 8)(82 + 25) (a) Develop a state space model for this transfer function, in the standard form y=Cx + Du (b) Suppose that zero input is applied, such that u 0. Perform a modal analysis of the state response for this open-loop system. Your analysis should include the nature of the time response for each mode, as well as how...
2y"(t) + 3 y' (t) + y(t)=x"(t) +x'(t) - x(t), y(0) = -2, y'(0) = 0,...
2y"(t) + 3 y' (t) + y(t)=x"(t) +x'(t) - x(t), y(0) = -2, y'(0) = 0, u(t) is the step function. 1. Write an expression for Y(s); at first leave U(s) symbolic. Identify which part is the zero-state and which part is the zero-input frequency-domain solution. Identify which part is the transfer function and which part is the initial condition polynomial. You will need to use the following transform pairs or properties, noting that they apply to the input as...
A system with input r(t) and output y(t) has transfer function G(s) = 10 (s +...
A system with input r(t) and output y(t) has transfer function G(s) = 10 (s + 1)(s + 2). Find y(t) for t ≥ 0 if the following inputs are applied (with zero initial conditions): (a) r(t) = u(t) (b) r(t) = e^ −t*u(t)
UestionI. A system is represented by the following transfer function G(s)- (s+1)/(s2+5s+6) 1) Fin...
uestionI. A system is represented by the following transfer function G(s)- (s+1)/(s2+5s+6) 1) Find a state equation and state transition matrices (A,B, C and D) of the system for a step input 6u(t). ii) Find the state transition matrix eAt) ii) Find the output response of system y(t) to a step input 6u(t) using state transition matrix, iv) Obtain the output response y(t) of the system with two other methods for step input óu(t). Question IV. A system is described...
14. An LTI system has the following transfer function, determine the output system response y(t) due...
14. An LTI system has the following transfer function, determine the output system response y(t) due to the input x(t) e u(t) H(s) s+2 S+7s+12 Answer: y(t)
Part I: For each problem, there is only one right answer 1. The model of a...
Part I: For each problem, there is only one right answer 1. The model of a system in the frequency domain is A. the transfer function from the input to the output. B. the differential equation which defines the relation between the input and the output. C. the zero-state response of the system D. None 2. For a system whose input r and output y are related by the differential equation u(0)a30) dr(t) +3r(t) dt dt2 the transfer function from...

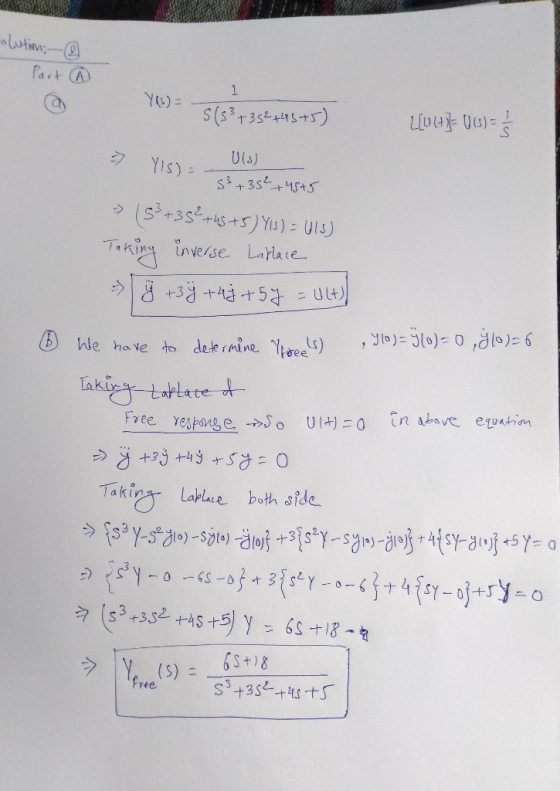

I want the answer for Part B I have the answer for Part A-Q1 I uploaded it 2 H I F ua 212 < > 0.5% on Y; 4Ω Fig...
I want the answer for Part B I have the answer for Part
A-Q1 I uploaded it
2 H I F ua 212 < > 0.5% on Y; 4Ω Figure 1 PART A: MATHEMATICAL MODEL AND TIME DOMAIN ANALYSIS (5%) 1) For the circuit of Figure 1, determine the transfer function relating the output voltage (s) to the input voltage V(s). Assuming zero initial condition, obtain the output response vo(t) to an input step with 6V amplitude, that is vi(t)6...
a system is given by the following transfer function Y(s)/u(s) = 1/(s^2-16) a)find the output in...
a system is given by the following transfer function Y(s)/u(s) = 1/(s^2-16) a)find the output in time domain Y(t) if the input u(t) is a unit step. (Hint the transfer function of the unit step function is 1/s) b)what is Y(t) as t goes to infinity
5- For the following system: x( Input: x(t)s u(t) Output: y() With the initial condition y(0) 1, y(O)-0, RI-1, R2-12, CI-2F, C2-1F. Identify the natural and forced response of the system a) Find the zero input response. b) Unit impulse response. c) zero state response. d) The total response. e Identify the natural and forced response of the system.
5- For the following system: x(
Input: x(t)s u(t) Output: y() With the initial condition y(0) 1, y(O)-0, RI-1, R2-12, CI-2F,...
Problem 1 Given the transfer function from input u(t) to output y(t), s2-4s +3 Y(s) U(s) (s2 + 6s + 8)(82 + 25) (a) Develop a state space model for this transfer function, in the standard form y=Cx + Du (b) Suppose that zero input is applied, such that u 0. Perform a modal analysis of the state response for this open-loop system. Your analysis should include the nature of the time response for each mode, as well as how...
2y"(t) + 3 y' (t) + y(t)=x"(t) +x'(t) - x(t), y(0) = -2, y'(0) = 0, u(t) is the step function. 1. Write an expression for Y(s); at first leave U(s) symbolic. Identify which part is the zero-state and which part is the zero-input frequency-domain solution. Identify which part is the transfer function and which part is the initial condition polynomial. You will need to use the following transform pairs or properties, noting that they apply to the input as...
uestionI. A system is represented by the following transfer function G(s)- (s+1)/(s2+5s+6) 1) Find a state equation and state transition matrices (A,B, C and D) of the system for a step input 6u(t). ii) Find the state transition matrix eAt) ii) Find the output response of system y(t) to a step input 6u(t) using state transition matrix, iv) Obtain the output response y(t) of the system with two other methods for step input óu(t). Question IV. A system is described...
14. An LTI system has the following transfer function, determine the output system response y(t) due to the input x(t) e u(t) H(s) s+2 S+7s+12 Answer: y(t)
Part I: For each problem, there is only one right answer 1. The model of a system in the frequency domain is A. the transfer function from the input to the output. B. the differential equation which defines the relation between the input and the output. C. the zero-state response of the system D. None 2. For a system whose input r and output y are related by the differential equation u(0)a30) dr(t) +3r(t) dt dt2 the transfer function from...
I want the answer for Part B I have the answer for Part
A-Q1 I uploaded it
2 H I F ua 212 < > 0.5% on Y; 4Ω Figure 1 PART A: MATHEMATICAL MODEL AND TIME DOMAIN ANALYSIS (5%) 1) For the circuit of Figure 1, determine the transfer function relating the output voltage (s) to the input voltage V(s). Assuming zero initial condition, obtain the output response vo(t) to an input step with 6V amplitude, that is vi(t)6...
