MATLAB code is given below in bold letters.
clc;
clear all; % clear all variables
close all;
% define the time vector with 10 equally spaced
samples
t = linspace(-5,5,10);
% define the unit step function
unit_step = (t>=0); % when time is > = 0 the logical values
one is set.
% define the signal itelf
x = 2 * exp(-0.5*t) .* sin(8*pi*t) .* unit_step; % .* is used for
point wise vector multiplication
% now plot the signal with 10 equally spaced
points
figure;
plot(t,x);grid on;
xlabel('time(s)');ylabel('Amplitude');

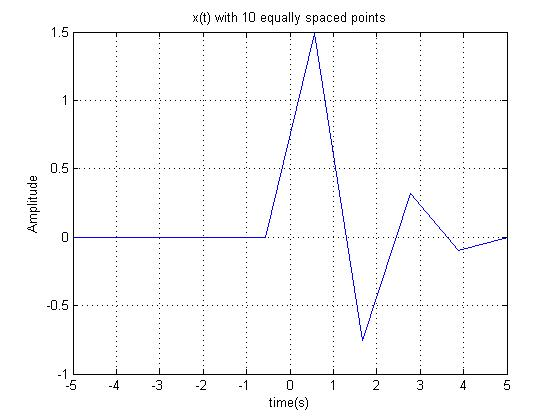

title('x(t) with 10 equally spaced points');
clear all; % clear all variables
% define the time vector with 100 equally spaced
samples
t = linspace(-5,5,100);
% define the unit step function
unit_step = (t>=0); % when time is > = 0 the logical values
one is set.
% define the signal itelf
x = 2 * exp(-0.5*t) .* sin(8*pi*t) .* unit_step; % .* is used for
point wise vector multiplication
% now plot the signal with 10 equally spaced
points
figure;
plot(t,x);grid on;
xlabel('time(s)');ylabel('Amplitude');
title('x(t) with 100 equally spaced points');
clear all; % clear all variables
% define the time vector with 1000 equally spaced
samples
t = linspace(-5,5,1000);
% define the unit step function
unit_step = (t>=0); % when time is > = 0 the logical values
one is set.
% define the signal itelf
x = 2 * exp(-0.5*t) .* sin(8*pi*t) .* unit_step; % .* is used for
point wise vector multiplication
% now plot the signal with 10 equally spaced
points
figure;
plot(t,x);grid on;
xlabel('time(s)');ylabel('Amplitude');
title('x(t) with 100 equally spaced points');

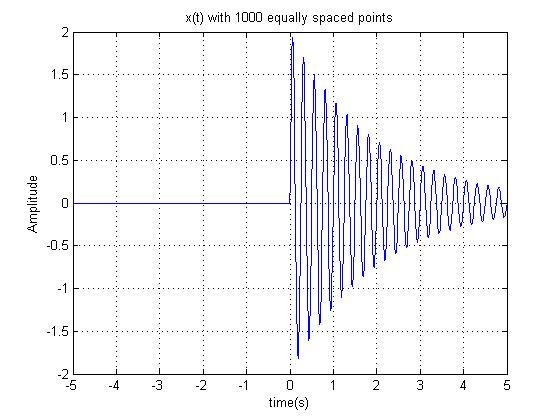

From the above plots, it is observed that the first figure is
not a good reproduction of the signal. This is because of the fact
that the sampling frequeny is not sufficiently enough for
reproducing all the frequency components of the signal. In the
secondd figure, the signal severely distorted because of the less
sampling freuency. The third plot is a best reproduction of the
orignal signal. this is because the sampling frequency is much
higher than the maximum frequency component of the
signal.

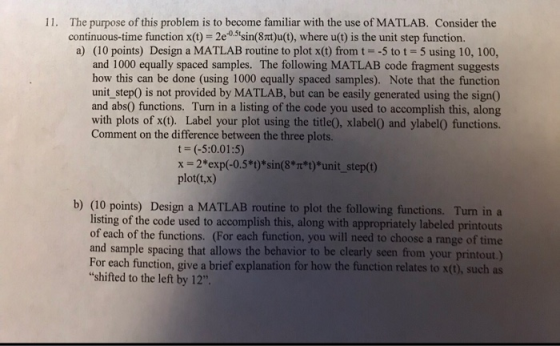

The purpose of this problem is to become familiar with the use of MATLAB. Consider the...
