*Calculate the I GHz impedance of a 100 Microfarad Capacitor with a ½ inch lead on...
*Calculate the I GHz impedance of a 100 Microfarad Capacitor with a ½ inch lead on each end. Assume resistance is essentially zero and inductance of connecting lead is 20 nanoH/inch.
*Assuming a 100 Ohm power line impedance, how effective do you
think this capacitor would be for bypassing 1 GHz spikes on the
power supply line? Defend your answer.
*For comparison, calculate the 1 GHz impedance of a 0.05 microFarad
Capacitor with 0.025 inch leads on each end. Again, assume
resistance is essentially zero and inductance of connecting lead is
20 nanoH/inch.
*What would be the impedance of 10 of these 0.1 capacitors in
parallel? How effective do you think these 10 in parallel would be
in bypassing 1GHz spikes and harmonics?
Homework Answers
Add Answer to:
*Calculate the I GHz impedance of a 100 Microfarad Capacitor
with a ½ inch lead on...
Calculate the l GHz impedance of a 100 Microfa rad Capacitor with a ½ inch lead...
Calculate the l GHz impedance of a 100 Microfa rad Capacitor with a ½ inch lead on each end Assume resistance is essentially zero and inductance of connecting lead is 20 nanoH/inch Assuming a 100 Ohm power line impedance, how effective do you think this capacitor would be for bypassing 1 GHz spikes on the power supply line? Defend your answer. For comparison, calculate the 1 GHz impedance of a 0.05 microFarad Capacitor with 0.025 inch leads on each end....
1 2 need help with #2, Q1 answer is 62.82 ohms Calculate the 1 GHz impedance...
1
2
need help with #2, Q1 answer is 62.82 ohms

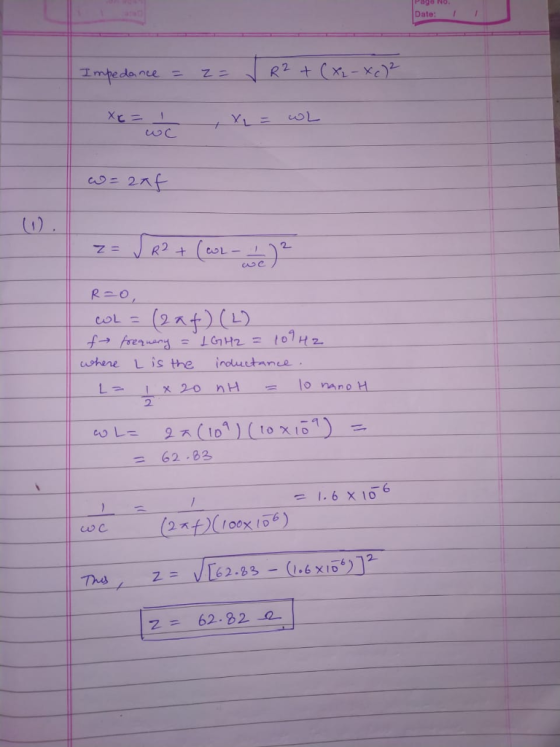

Calculate the 1 GHz impedance of a 100 Microfarad Capacitor with a 12 inch lead on each end. Assume resistance is essentially zero and inductance of connecting lead is 20 nanoH/inch. How effective do you think this capacitor would be for bypassing 1 GHz spikes on the power supply line? Defend your answer.
We have a 10 microfarad capacitor and a 10 millihenry inductor and a 1k ohm resistance...
We have a 10 microfarad capacitor and a 10 millihenry inductor and a 1k ohm resistance connected in series with an AC power supply. a) What is the resonant frequency of the circuit? b) What is the total impedance of the circuit at 100 Hz? c) What is the phase shift between the applied voltage and the current at 100 Hz? d) What is the quality factor, Q, of the resonance? e) If I wanted a quality factor of 10^6,...
ll capace, expressed in oks. They 9. The opposition offered to the non offered to the...
ll capace, expressed in oks. They 9. The opposition offered to the non offered to the flow of a C alensis XE. 1. Inductive Reactance 2. Capacitive Reactance 3. Impedance 4. Resistance 10. The opposition offered to the The opposition offered to the flow of an alteratine curenty inductance, expressed in ons. The symbol for characteristic is XL. 1. Inductive Reactance 2. Capacitive Reactance 3. Impedance when a voltage 11. What is the basic unit of capacitance? Example: A capacitor...
Calculate the l GHz impedance of a 100 Microfa rad Capacitor with a ½ inch lead on each end Assume resistance is essentially zero and inductance of connecting lead is 20 nanoH/inch Assuming a 100 Ohm power line impedance, how effective do you think this capacitor would be for bypassing 1 GHz spikes on the power supply line? Defend your answer. For comparison, calculate the 1 GHz impedance of a 0.05 microFarad Capacitor with 0.025 inch leads on each end....
1
2
need help with #2, Q1 answer is 62.82 ohms
Calculate the 1 GHz impedance of a 100 Microfarad Capacitor with a 12 inch lead on each end. Assume resistance is essentially zero and inductance of connecting lead is 20 nanoH/inch. How effective do you think this capacitor would be for bypassing 1 GHz spikes on the power supply line? Defend your answer.
ll capace, expressed in oks. They 9. The opposition offered to the non offered to the flow of a C alensis XE. 1. Inductive Reactance 2. Capacitive Reactance 3. Impedance 4. Resistance 10. The opposition offered to the The opposition offered to the flow of an alteratine curenty inductance, expressed in ons. The symbol for characteristic is XL. 1. Inductive Reactance 2. Capacitive Reactance 3. Impedance when a voltage 11. What is the basic unit of capacitance? Example: A capacitor...
