Torque The maximum stress in a section of a circular tube subject to a torque is τmax = 23 MPa ....
Torque
The maximum stress in a section of a circular tube subject to a torque is τmax = 23 MPa . If the inner diameter is Di = 5 cm and the outer diameter is Do = 7 cm , what is the torque on the section?
Express your answer with appropriate units to three significant figures.

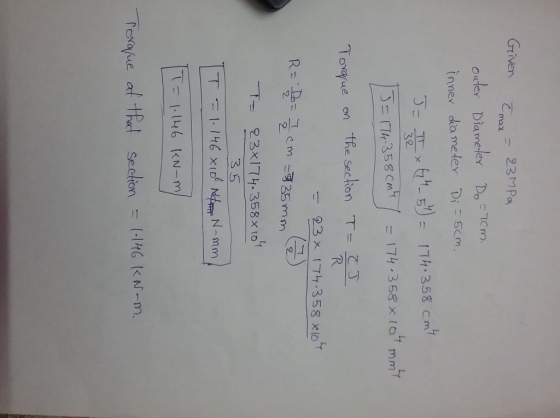

J = 174 cm^4
T = τJ/ρ
Homework Answers
Add Answer to:
Torque
The maximum stress in a section of a circular tube
subject to a torque is τmax = 23 MPa ....
Learning Goal: To calculate torsional deformation and shear stress due to an applied force in a...
Learning Goal: To calculate torsional deformation and shear stress due to an applied force in a door handle design. A locked door handle is composed of a solid circular shaft AB with a diameter fb = 105 mm and a flat plate BC with a force P = 76 N applied at point C as shown. Let c = 543 mm, d = 125 mm, and e = 145 mm. (Treat the handle as if it were a cantilever beam.)...
Learning Goal: To calculate torsional deformation and shear stress due to an applied force in a...
Learning Goal: To calculate torsional deformation and shear stress due to an applied force in a door handle design. A locked door handle is composed of a solid circular shaft AB with a diameter of b = 101 mm and a flat plate BC with a force P = 77 N applied at point C as shown. Let c = 473 mm, d = 126 mm, and e = 148 mm (Treat the handle as if it were a cantilever...
Torsional Deformation of a Circular Shaft Learning Goal: To calculate torsional deformation and s...
Torsional Deformation of a Circular Shaft Learning Goal: To calculate torsional deformation and shear stress due to an applied force in a door handle design. A locked door handle is composed of a solid orcular shaft AB with a diameter of b 101 mm and a flat plate BC with a ferce P-65 N applied at point C as shown Let c 523 mm,d 135 mm, and e 157 mm (Treat the hande as if it were a cantilever beam)...
Learning Goal: To calculate torsional deformation and shear stress due to an applied force in a...
Learning Goal: To calculate torsional deformation and shear stress due to an applied force in a door handle design. A locked door handle is composed of a solid circular shaft AB with a diameter fb = 105 mm and a flat plate BC with a force P = 76 N applied at point C as shown. Let c = 543 mm, d = 125 mm, and e = 145 mm. (Treat the handle as if it were a cantilever beam.)...
Stress transformation Problem 9.60 Part A Suppose that ơ,-430 MPa , ơ,-185 MPa , Tzy 480 MPa. The...
Stress transformation Problem 9.60 Part A Suppose that ơ,-430 MPa , ơ,-185 MPa , Tzy 480 MPa. The stress components act in the directions shown in the figure below. (Figure 1) Determine the principal stress Express your answers using three significant figures separated by a comma. MPa SubmitR Request Answer Part B Determine the maximum in-plane shear stress Express your answer to three significant figures and include the appropriate units. Tmax in planeale Units SubmitR Request Answer Part C Figure...
Problem 9.60 Part A Suppose that σ1-440 MPa, σ,-250 MPa , Tzy-425 MPa . The stress...
Problem 9.60 Part A Suppose that σ1-440 MPa, σ,-250 MPa , Tzy-425 MPa . The stress components act in the directions shown in the figure below. (Figure 1) Determine the principal stress. Express your answers using three significant figures separated by a comma. σ1 , σ2-642,-452 MPa Correct Part B Determine the maximum in-plane shear stress. Express your answer to three significant figures and include the appropriate units. Tmax In plane= 547 MPa Correct Part C Figure 1 of1 Determine...
Part A - Maximum load A column is made from a rectangular bar whose cross section...
Part A - Maximum load A column is made from a rectangular bar whose cross section is 5.1 cm by 8.9 cm . If the height of the column is 2 m , what is the maximum load it can support? The material has E = 200 GPa and σY = 250 MPa . Express your answer with appropriate units to three significant figures. Pmax = ?? Part B - Maximum length A circular column with diameter 9.4 cm is...
A torque T causes a maximum shearing stress of 47 MPa in the hollow cylindrical steel...
A torque T causes a maximum shearing stress of 47 MPa in the hollow cylindrical steel shaft shown. - 30 mm References eBook & Resources Section Break Difficulty: Easy - 2. Required information 10.00 points Determine the maximum shearing stress caused by the same torque T in a solid cylindrical shaft of the same cross-sectional area. (Round the final answer to one decimal place.) The maximum shearing stress is MPa.
Homework 4 porsional Deformation of a Circular Shaft Learning Goal locacao sinal de and shared to...
Homework 4 porsional Deformation of a Circular Shaft Learning Goal locacao sinal de and shared to anaped for en a Aloed door handles composed of scrush Al Wadiameter ndere 100 mandate with a force P.14 Naleport as shown Leemed 12mmande 15m (hte handie s e werbe Part A Mano Shermocon. mon d by the Express the shear stress to the significatures and include appropriate unit View Available Type here to search A D 18 PM 1125/2019 14 ° 5 °6...
Learning Goal: To calculate torsional deformation and shear stress due to an applied force in a door handle design. A locked door handle is composed of a solid circular shaft AB with a diameter fb = 105 mm and a flat plate BC with a force P = 76 N applied at point C as shown. Let c = 543 mm, d = 125 mm, and e = 145 mm. (Treat the handle as if it were a cantilever beam.)...
Learning Goal: To calculate torsional deformation and shear stress due to an applied force in a door handle design. A locked door handle is composed of a solid circular shaft AB with a diameter of b = 101 mm and a flat plate BC with a force P = 77 N applied at point C as shown. Let c = 473 mm, d = 126 mm, and e = 148 mm (Treat the handle as if it were a cantilever...
Torsional Deformation of a Circular Shaft Learning Goal: To calculate torsional deformation and shear stress due to an applied force in a door handle design. A locked door handle is composed of a solid orcular shaft AB with a diameter of b 101 mm and a flat plate BC with a ferce P-65 N applied at point C as shown Let c 523 mm,d 135 mm, and e 157 mm (Treat the hande as if it were a cantilever beam)...
Learning Goal: To calculate torsional deformation and shear stress due to an applied force in a door handle design. A locked door handle is composed of a solid circular shaft AB with a diameter fb = 105 mm and a flat plate BC with a force P = 76 N applied at point C as shown. Let c = 543 mm, d = 125 mm, and e = 145 mm. (Treat the handle as if it were a cantilever beam.)...
Stress transformation Problem 9.60 Part A Suppose that ơ,-430 MPa , ơ,-185 MPa , Tzy 480 MPa. The stress components act in the directions shown in the figure below. (Figure 1) Determine the principal stress Express your answers using three significant figures separated by a comma. MPa SubmitR Request Answer Part B Determine the maximum in-plane shear stress Express your answer to three significant figures and include the appropriate units. Tmax in planeale Units SubmitR Request Answer Part C Figure...
Problem 9.60 Part A Suppose that σ1-440 MPa, σ,-250 MPa , Tzy-425 MPa . The stress components act in the directions shown in the figure below. (Figure 1) Determine the principal stress. Express your answers using three significant figures separated by a comma. σ1 , σ2-642,-452 MPa Correct Part B Determine the maximum in-plane shear stress. Express your answer to three significant figures and include the appropriate units. Tmax In plane= 547 MPa Correct Part C Figure 1 of1 Determine...
A torque T causes a maximum shearing stress of 47 MPa in the hollow cylindrical steel shaft shown. - 30 mm References eBook & Resources Section Break Difficulty: Easy - 2. Required information 10.00 points Determine the maximum shearing stress caused by the same torque T in a solid cylindrical shaft of the same cross-sectional area. (Round the final answer to one decimal place.) The maximum shearing stress is MPa.
Homework 4 porsional Deformation of a Circular Shaft Learning Goal locacao sinal de and shared to anaped for en a Aloed door handles composed of scrush Al Wadiameter ndere 100 mandate with a force P.14 Naleport as shown Leemed 12mmande 15m (hte handie s e werbe Part A Mano Shermocon. mon d by the Express the shear stress to the significatures and include appropriate unit View Available Type here to search A D 18 PM 1125/2019 14 ° 5 °6...
