(Figure 1) shows history graphs of two different points on a string as a wave pulse...

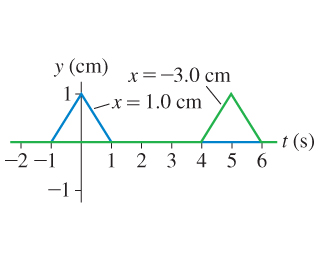

(Figure 1) shows history graphs of two different points on a
string as a wave pulse moves along the string. The blue curve is
the history graph for the point at x = 1.0 cm, and the
green curve is for the point at x = -3.0 cm. What is the
velocity (including the correct sign for its direction) of this
wave?
Homework Answers
Add Answer to:
(Figure 1) shows history graphs of two different points on a
string as a wave pulse...
12. Below are two history graphs for wave pulses on a string. The speed and direction...
12. Below are two history graphs for wave pulses on a string. The speed and direction of each pulse are índicated. For each, draw the snapshot graph at the specified instant of time. No distance scale is provided, so you must determine an appropriate scale and label the x-axis appropriately a. b. History atx=2cm Atx=-1 cm t (s) t (s) 0,02 0.04 0.06 -006 -002 006, 00 cm's to the left 50 cm/s to the left Snapshot at t= 0.02...
The above figure shows height vs. displacement plot for a string which has a wave traveling...
The above figure shows height vs. displacement plot for a string
which has a wave traveling to in the positive x direction
at time t=2.9 sec with a velocity of 30 m/sec.
1) What is the amplitude of this wave?
2) What is the wavelength of this wave?
3) What is the frequency of this wave?
4) What is the vertical (y) velocity of a piece of
string at the point labeled 1? (Ans cm/ sec)
5) What is the...
1- 2- A wave travels along a string in the positive x -direction at 23.8 m/s...
1-
2-
A wave travels along a string in the positive x -direction at 23.8 m/s . The frequency of the wave is 51.3 Hz . At x = 0 and t = 0 , the velocity of the string in the y -direction is 2.11 m/s and the vertical displacement is y = 2.31 mm . Write the function y(x, t) for the wave. Pont A in the figure below is 39.1 cm below the ceiling. Determine how much...
Problem 5: The top picture shows a wave pulse on a string (string 1-blue) travelling to...
Problem 5: The top picture shows a wave pulse on a string (string 1-blue) travelling to the right, where the string is attached to another string (string 2 - orange). The bottom picture shows the reflected wave some time later. If the tension on both strings is the same, a) [2 points] Is string 2 more or less dense than string 1? Justify your answer b) [3 points) in which string will the wave travel faster? Justify your answer. c)...
Problem 5: The top picture shows a wave pulse on a string (string 1-blue) travelling to...
Problem 5: The top picture shows a wave pulse on a string (string 1-blue) travelling to the right, where the string is attached to another string (string 2 - orange). The bottom picture shows the reflected wave some time later. If the tension on both strings is the same, a) [2 points) is string 2 more or less dense than string 1? Justify your answer b) [3 points) In which string will the wave travel faster? Justify your answer. c)...
Problem 5: The top picture shows a wave pulse on a string (string 1-blue) travelling to...
Problem 5: The top picture shows a wave pulse on a string (string 1-blue) travelling to the right, where the string is attached to another string (string 2 - orange). The bottom picture shows the reflected wave some time later. If the tension on both strings is the same, a) [2 points) is string 2 more or less dense than string 1? Justify your answer b) 3 points) In which string will the wave travel faster? Justify your answer. were...
(Figure 1) shows a history graph at x = 0 m of a wave moving to...
(Figure 1) shows a history graph at x = 0 m of a wave moving to
the right at 1 m/s. What is the snapshot graph of this wave at t =
0 s ?
Item 8 What is the snapshot graph of this wave att 0 s? Constants|Periodic Table cm (Figure 1) shows a history graph at at 1 m/s. 0 m of a wave moving to the right x(m) 2-12 34 5 6 cm x(m) -6-5-4 13-2/1 y...
3) Wave basics. (15 points) a) (10 points) Refer to Figure 1 below. The top curve...
3) Wave basics. (15 points) a) (10 points) Refer to Figure 1 below. The top curve shows the changing height/magnitude of a wave at a fixed point in space. In other words, it shows how the magnitude changes in time as the wave moves past the fixed point. The bottom curve shows the same wave, but shows it at a snapshot time, rather than a fixed point in space. What are the period, frequency, wavelength, and speed of the wave....
The figure below shows a history graph at (x)-2 m of a wave moving to the...
The figure below shows a history graph at (x)-2 m of a wave moving to the right at 1 m/s Draw a snapshot graph of the wave at t-1 y (cm) -2-2 3/45 6 1- Draw a history graph first, then explain briefly the procedure to draw the snapshot graph. (A) (B)Draw a neat snapshot graph with correct units and labels
The figure below shows a history graph at x-2 m of a wave moving to the...
The figure below shows a history graph at x-2 m of a wave moving to the right at 1 m/s. Draw a snapshot graph of the wave at t-1s. y (cm) t (s) -2-12 3/4 5 6 (A) Draw a history graph first, then explain briefly the procedure to draw the snapshot graph. (B) Draw a neat snapshot graph with correct units and labels.
12. Below are two history graphs for wave pulses on a string. The speed and direction of each pulse are índicated. For each, draw the snapshot graph at the specified instant of time. No distance scale is provided, so you must determine an appropriate scale and label the x-axis appropriately a. b. History atx=2cm Atx=-1 cm t (s) t (s) 0,02 0.04 0.06 -006 -002 006, 00 cm's to the left 50 cm/s to the left Snapshot at t= 0.02...
The above figure shows height vs. displacement plot for a string
which has a wave traveling to in the positive x direction
at time t=2.9 sec with a velocity of 30 m/sec.
1) What is the amplitude of this wave?
2) What is the wavelength of this wave?
3) What is the frequency of this wave?
4) What is the vertical (y) velocity of a piece of
string at the point labeled 1? (Ans cm/ sec)
5) What is the...
1-
2-
A wave travels along a string in the positive x -direction at 23.8 m/s . The frequency of the wave is 51.3 Hz . At x = 0 and t = 0 , the velocity of the string in the y -direction is 2.11 m/s and the vertical displacement is y = 2.31 mm . Write the function y(x, t) for the wave. Pont A in the figure below is 39.1 cm below the ceiling. Determine how much...
Problem 5: The top picture shows a wave pulse on a string (string 1-blue) travelling to the right, where the string is attached to another string (string 2 - orange). The bottom picture shows the reflected wave some time later. If the tension on both strings is the same, a) [2 points] Is string 2 more or less dense than string 1? Justify your answer b) [3 points) in which string will the wave travel faster? Justify your answer. c)...
Problem 5: The top picture shows a wave pulse on a string (string 1-blue) travelling to the right, where the string is attached to another string (string 2 - orange). The bottom picture shows the reflected wave some time later. If the tension on both strings is the same, a) [2 points) is string 2 more or less dense than string 1? Justify your answer b) [3 points) In which string will the wave travel faster? Justify your answer. c)...
Problem 5: The top picture shows a wave pulse on a string (string 1-blue) travelling to the right, where the string is attached to another string (string 2 - orange). The bottom picture shows the reflected wave some time later. If the tension on both strings is the same, a) [2 points) is string 2 more or less dense than string 1? Justify your answer b) 3 points) In which string will the wave travel faster? Justify your answer. were...
(Figure 1) shows a history graph at x = 0 m of a wave moving to
the right at 1 m/s. What is the snapshot graph of this wave at t =
0 s ?
Item 8 What is the snapshot graph of this wave att 0 s? Constants|Periodic Table cm (Figure 1) shows a history graph at at 1 m/s. 0 m of a wave moving to the right x(m) 2-12 34 5 6 cm x(m) -6-5-4 13-2/1 y...
3) Wave basics. (15 points) a) (10 points) Refer to Figure 1 below. The top curve shows the changing height/magnitude of a wave at a fixed point in space. In other words, it shows how the magnitude changes in time as the wave moves past the fixed point. The bottom curve shows the same wave, but shows it at a snapshot time, rather than a fixed point in space. What are the period, frequency, wavelength, and speed of the wave....
The figure below shows a history graph at (x)-2 m of a wave moving to the right at 1 m/s Draw a snapshot graph of the wave at t-1 y (cm) -2-2 3/45 6 1- Draw a history graph first, then explain briefly the procedure to draw the snapshot graph. (A) (B)Draw a neat snapshot graph with correct units and labels
The figure below shows a history graph at x-2 m of a wave moving to the right at 1 m/s. Draw a snapshot graph of the wave at t-1s. y (cm) t (s) -2-12 3/4 5 6 (A) Draw a history graph first, then explain briefly the procedure to draw the snapshot graph. (B) Draw a neat snapshot graph with correct units and labels.
