Add Answer to:

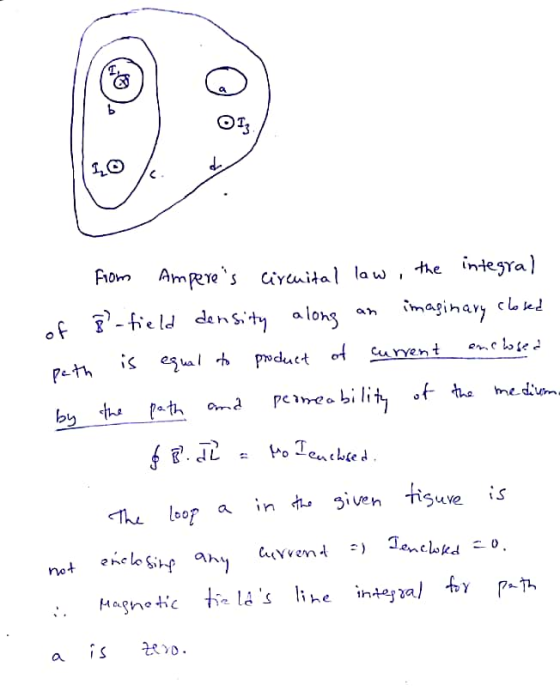

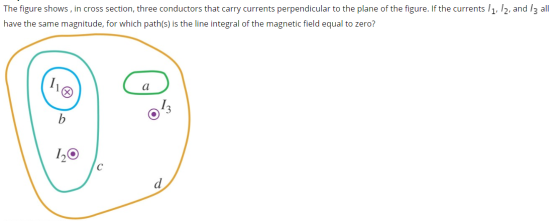

The figure shows, in cross section, three conductors that carry currents perpendicular to the plane of...
2 The figure shows in creste, three conductors that carry ens perpendicular to the plame of...
2 The figure shows in creste, three conductors that carry ens perpendicular to the plame of the figure. If the Is and all have the same magnitude, for which puthi re the line integral of the magnetic field equal to ha banda e handd dged her the integral goes clockwise or counterclockwise around the path
The figure below shows, in cross section, several conductors that carry currents through the plane of...
The figure below shows, in cross section, several conductors
that carry currents through the plane of the figure. The currents
have the magnitudes I1 = 2.0 A,
I2 = 5.0 A, and I3 = 2.6 A.
and the directions shown. Four paths, labeled a through
d, are shown. What is the line integral
·dl for each paths? Each
integral involves going around the path in the counterclockwise
direction.
The figure shows, in cross section, several conductors that carry currents through the plane of the...
The figure shows, in cross section, several conductors that
carry currents through the plane of the figure. The currents have
the magnitudes I1 = 3.7A , I2 = 5.5A , and I3 = 1.5A , and the
directions shown. Four paths, labeled a through d, are shown.
(A) What is the line integral
?B?
?dl?
for the path a? The integral involves going around
the path in the counterclockwise direction.
(B) What is the line
integral
?B?
?dl?
for the...
The figure shoWS, in cross section, several conductors that carry currents through the plane of the...
The figure shoWS, in cross section, several conductors that carry currents through the plane of the figure. The currents have the magnitudes 11 -3.6 A, 12-6.4 A and 13 = 1.5 A , and the directions shown. Four paths. labeled a through d, are shown. (Figure 1) Figure 1 of 1 120 What is the line integral or the path a? The integral involves going around the path in the counterclockwise direction. Express your answer using two significant figures. Request...
The fiqure shows, in cross section several conductors that carry Orrents through the plane of the...
The fiqure shows, in cross section several conductors that carry Orrents through the plane of the figure. The currents have the magnitudes l. = 4.3 A. l. = 6.4A and 25 A. and the directions shown. Four paths, labeled a through are shown (Figure 1) Part A What is the line integral B. dl for the path 87 The integral involves going around the path in the counterclockwise direction Express your answer using two signifiant figures. T.m Submit Lewat Awwar...
Two insulated wires perpendicular to each other in the same plane carry currents as shown in...
Two insulated wires perpendicular to each other in the same plane
carry currents as shown in the figure
(Figure
1)
. Assume that I
= 13A
and d
= 16cm
.
A)
Find the magnitude of the net magnetic field these wires produce at
points
P and Q if the 10
Acurrent is to the right.
B)
Find the magnitude of the net magnetic field these wires produce at
points
P
and Q
if the 10
Acurrent
is to the...
Four long straight parallel wires are oriented perpendicular to the x-y plane and carry currents I1,...
Four long straight parallel wires are oriented perpendicular to
the x-y plane and carry currents I1, I2,
I3 and I4. The magnitudes of the currents are
all identical and equal to 8.475 A. Current I4 is into
the x-y plane (i.e. into the screen), whereas each of the other
three currents are all out of the x-y plane(i.e. out of the screen)
as shown below. Each of the wires is a distance of 6.105 cm from
the origin as measured...
Cultiple Choice (6 pts each) The closed circuit shown at right carries a current: 154, where...
Cultiple Choice (6 pts each) The closed circuit shown at right carries a current: 154, where a=0.10 m and b=0.20 What is the magnitude and direction of the magnetic field at point P? Magnitude a) 7.07 x 10-51 b) 2.36 x 10-5T c) 7.07 x 10-5T d) 2.36 Tx 10-5 Direction Into the page Into the page Out of the page Out of the page 2. The figure shows, in cross section, three conductors that carry currents perpendicular to the...
Two insulated wires perpendicular to each other in the same plane carry currents as shown in...
Two insulated wires perpendicular to each other in the same plane
carry currents as shown in the figure.
1. Find the magnitude of the net magnetic field these wires produce
at points Pand
Qif
the 10.0 A
current is to the right.
2. Findthe
magnitude of the net magnetic field these wires produce at points
Pand
Qif
the 10.0 A
current is to the left.
Multiple Choice (6 pts each) The closed circuit shown at right earries a current 154, where...
Multiple Choice (6 pts each) The closed circuit shown at right earries a current 154, where t=000 mand o = 0.20 m What is the magnitude and direction of the magnetic field at point! Magnitude D 2.36 x 10-5T c) 707:10-31 a) 236 T: 10-3 Direction Into the page Into the page Out of the page Out of the page 2 The figure shows, in cross section, three conductors that carry currents perpendicular to the plane of the figure. If...
2 The figure shows in creste, three conductors that carry ens perpendicular to the plame of the figure. If the Is and all have the same magnitude, for which puthi re the line integral of the magnetic field equal to ha banda e handd dged her the integral goes clockwise or counterclockwise around the path
The figure below shows, in cross section, several conductors
that carry currents through the plane of the figure. The currents
have the magnitudes I1 = 2.0 A,
I2 = 5.0 A, and I3 = 2.6 A.
and the directions shown. Four paths, labeled a through
d, are shown. What is the line integral
·dl for each paths? Each
integral involves going around the path in the counterclockwise
direction.
The figure shows, in cross section, several conductors that
carry currents through the plane of the figure. The currents have
the magnitudes I1 = 3.7A , I2 = 5.5A , and I3 = 1.5A , and the
directions shown. Four paths, labeled a through d, are shown.
(A) What is the line integral
?B?
?dl?
for the path a? The integral involves going around
the path in the counterclockwise direction.
(B) What is the line
integral
?B?
?dl?
for the...
The figure shoWS, in cross section, several conductors that carry currents through the plane of the figure. The currents have the magnitudes 11 -3.6 A, 12-6.4 A and 13 = 1.5 A , and the directions shown. Four paths. labeled a through d, are shown. (Figure 1) Figure 1 of 1 120 What is the line integral or the path a? The integral involves going around the path in the counterclockwise direction. Express your answer using two significant figures. Request...
The fiqure shows, in cross section several conductors that carry Orrents through the plane of the figure. The currents have the magnitudes l. = 4.3 A. l. = 6.4A and 25 A. and the directions shown. Four paths, labeled a through are shown (Figure 1) Part A What is the line integral B. dl for the path 87 The integral involves going around the path in the counterclockwise direction Express your answer using two signifiant figures. T.m Submit Lewat Awwar...
Two insulated wires perpendicular to each other in the same plane
carry currents as shown in the figure
(Figure
1)
. Assume that I
= 13A
and d
= 16cm
.
A)
Find the magnitude of the net magnetic field these wires produce at
points
P and Q if the 10
Acurrent is to the right.
B)
Find the magnitude of the net magnetic field these wires produce at
points
P
and Q
if the 10
Acurrent
is to the...
Four long straight parallel wires are oriented perpendicular to
the x-y plane and carry currents I1, I2,
I3 and I4. The magnitudes of the currents are
all identical and equal to 8.475 A. Current I4 is into
the x-y plane (i.e. into the screen), whereas each of the other
three currents are all out of the x-y plane(i.e. out of the screen)
as shown below. Each of the wires is a distance of 6.105 cm from
the origin as measured...
Cultiple Choice (6 pts each) The closed circuit shown at right carries a current: 154, where a=0.10 m and b=0.20 What is the magnitude and direction of the magnetic field at point P? Magnitude a) 7.07 x 10-51 b) 2.36 x 10-5T c) 7.07 x 10-5T d) 2.36 Tx 10-5 Direction Into the page Into the page Out of the page Out of the page 2. The figure shows, in cross section, three conductors that carry currents perpendicular to the...
Two insulated wires perpendicular to each other in the same plane
carry currents as shown in the figure.
1. Find the magnitude of the net magnetic field these wires produce
at points Pand
Qif
the 10.0 A
current is to the right.
2. Findthe
magnitude of the net magnetic field these wires produce at points
Pand
Qif
the 10.0 A
current is to the left.
Multiple Choice (6 pts each) The closed circuit shown at right earries a current 154, where t=000 mand o = 0.20 m What is the magnitude and direction of the magnetic field at point! Magnitude D 2.36 x 10-5T c) 707:10-31 a) 236 T: 10-3 Direction Into the page Into the page Out of the page Out of the page 2 The figure shows, in cross section, three conductors that carry currents perpendicular to the plane of the figure. If...
