As shown in the figure, a reversible power cycle receives energy QH by heat transfer from...
As shown in the figure, a reversible power cycle receives energy
QH by heat transfer from a hot reservoir at TH and rejects energy
QC by heat transfer to a cold reservoir at TC.
a) If TH = 1600 K, TC = 400 K, what is the thermal
efficiency?
b) If TH = 500oC, TC = 20oC, and Wcycle = 1000 kJ, what are QH and
QC, each in kJ?
c) If ? = 60% and TC = 40oF, what is TH, in oF?
d) If ? = 40% and TH = 727oC, what is TC, in oC?

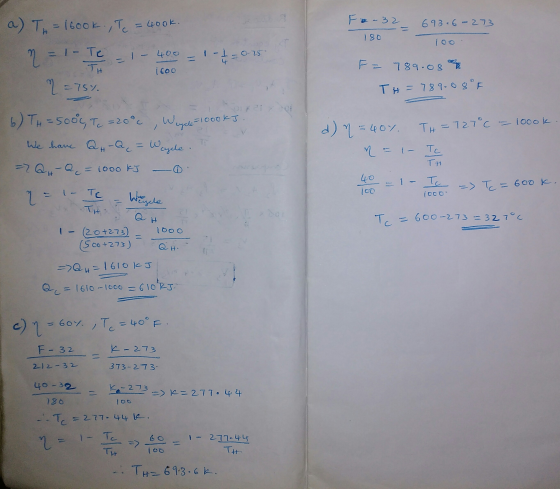

Homework Answers
Add Answer to:
As shown in the figure, a reversible power cycle receives energy
QH by heat transfer from...
A power cycle operating between two thermal reservoirs receives energy QH by heat transfer from a...
A power cycle operating between two thermal reservoirs receives energy QH by heat transfer from a hot reservoir at TH = 2000 K and rejects energy QC by heat transfer to a cold reservoir at TC = 400 K. For each of the following cases determine whether the cycle operates reversibly, operates irreversibly, or is impossible. (a) QH = 1000 kJ, ƞ = 60% (b) QH = 1000 kJ, Wcycle = 850 kJ (c) QH = 1000 kJ, QC =...
A reversible power cycle whose thermal efficiency is 39% receives 50 kJ by heat transfer from a hot reservoir at 310oC...
A reversible power cycle whose thermal efficiency is 39% receives 50 kJ by heat transfer from a hot reservoir at 310oC and rejects energy by heat transfer to a cold reservoir at temperature TC. Determine the energy rejected, in kJ, and TC, in oC. Determine the entropy production for the cycle, σcycle, in kJ/K.
A reversible power cycle whose thermal efficiency is 40% receives 50 kJ by heat transfer from a...
A reversible power cycle whose thermal efficiency is 40% receives 50 kJ by heat transfer from a hot reservoir at 600 K and rejects energy by heat transfer to a coldreservoir at temperature Tc. Determine the energy rejected in KJ
5.43 A refrigeration cycle operating between two reservoirs receives energy QC from a cold reservoir TC = 275 K and re...
5.43
A refrigeration cycle operating between two reservoirs receives energy QC from a cold reservoir TC = 275 K and rejects energy QH to a hot reservoir at TH = 315 K, For each of the following cases, determine whether the cycle operates reversibly, operates irreversibly, or is impossible: QC = 1000 kJ, Wcycle = 80 kJ. QC = 1200 kJ. QH = 2000 kJ. QH = 1575 kJ. Wcycle = 200 kJ. beta = 6.
I only need C and D please! As shown in the figure below, a reversible power...
I only need C and D please!
As shown in the figure below, a reversible power cycle receives energy OH by heat transfer from a hot reservoir at TH and rejects energy a) If T 600 K and Tc-400 K, what is the thermal efficiency (b) If TH -500°C, Tc-20°C, and Wcydle 1800 kJ, what are Qn and Qc, each in k? (c) If η-50% and Te-40.-F, what is T., in of? (d) In-40% and TH-727"C, what is To in°C?
A power cycle receives energy QH from a high temperature energy source at TH and rejects...
A power cycle receives energy QH from a high temperature energy source at TH and rejects energy QL by heat transfer to a low temperature energy sink at TL = 400 K. For each of the following cases determine whether the cycle operate reversibly, irreversibly, or is impossible. (a) QH = 1200 kJ, Wcycle = 1020 kJ. (b) QH = 1200 kJ, QL = 240 kJ. (c) Wcycle = 1400 kJ, QL = 600 kJ. (d) ?=40%.
Problem 1: Two reversible refrigeration cycles are arranged in series. The first cycle receives energy by...
Problem 1: Two reversible refrigeration cycles are arranged in series. The first cycle receives energy by heat transfer from a cold reservoir at temperature Tc and rejects energy by heat transfer to a reservoir at an intermediate temperature T greater than Te. The second cycle receives energy by heat transfer from the reservoir at temperature T and rejects energy by heat transfer to a higher-temperature reservoir at TH. Obtain an expression for the coefficient of performance of a single reversible...
Operating in series are two reversible heat pumps. Heat transfer gives energy to the first cycle...
Operating in series are two reversible heat pumps. Heat transfer
gives energy to the first cycle from a cold reservoir at 105 K and
rejects energy by heat transfer to a reservoir at an intermediate
temperature T greater than 105 K. The second cycle receives energy
by heat transfer from the reservoir at T and rejects energy by heat
transfer to a higher-temperature reservoir at 1200 K. If the heat
pump cycles have the same co-efficient of performance, calculate:
Low...
The input heat of a Carnot engine is 3,000 J. The temperature of a hot reservoir...
The input heat of a Carnot engine is 3,000 J. The temperature of a hot reservoir is 600 K and that of a cold reservoir is 300 K. What is the work done? Hint: The efficiency e of a Carnot engine is defined as the ratio of the work done, W, by the engine to the input heat QH : e=W/QH. W=QH – QC, where Qc is the output heat. That is, e=1-Qc/QH =1-Tc/TH, where Tc for a temperature of...
two reversible cycles arranged in series each produce the same net work As shown in Fig. P5.26, two reversible...
two
reversible cycles arranged in series each produce the same net work
As shown in Fig. P5.26, two reversible cycles arranged in series each produce the same net work. W The first cycle receives energy QB by heat transfer from a hot reservoir at 1000 degree R and rejects energy Q by heat transfer to a reservoir at an intermediate temperature, T. The second cycle receives energy Q by heat transfer from the reservoir at temperature T and rejects energy...
5.43
A refrigeration cycle operating between two reservoirs receives energy QC from a cold reservoir TC = 275 K and rejects energy QH to a hot reservoir at TH = 315 K, For each of the following cases, determine whether the cycle operates reversibly, operates irreversibly, or is impossible: QC = 1000 kJ, Wcycle = 80 kJ. QC = 1200 kJ. QH = 2000 kJ. QH = 1575 kJ. Wcycle = 200 kJ. beta = 6.
I only need C and D please!
As shown in the figure below, a reversible power cycle receives energy OH by heat transfer from a hot reservoir at TH and rejects energy a) If T 600 K and Tc-400 K, what is the thermal efficiency (b) If TH -500°C, Tc-20°C, and Wcydle 1800 kJ, what are Qn and Qc, each in k? (c) If η-50% and Te-40.-F, what is T., in of? (d) In-40% and TH-727"C, what is To in°C?
Problem 1: Two reversible refrigeration cycles are arranged in series. The first cycle receives energy by heat transfer from a cold reservoir at temperature Tc and rejects energy by heat transfer to a reservoir at an intermediate temperature T greater than Te. The second cycle receives energy by heat transfer from the reservoir at temperature T and rejects energy by heat transfer to a higher-temperature reservoir at TH. Obtain an expression for the coefficient of performance of a single reversible...
Operating in series are two reversible heat pumps. Heat transfer
gives energy to the first cycle from a cold reservoir at 105 K and
rejects energy by heat transfer to a reservoir at an intermediate
temperature T greater than 105 K. The second cycle receives energy
by heat transfer from the reservoir at T and rejects energy by heat
transfer to a higher-temperature reservoir at 1200 K. If the heat
pump cycles have the same co-efficient of performance, calculate:
Low...
two
reversible cycles arranged in series each produce the same net work
As shown in Fig. P5.26, two reversible cycles arranged in series each produce the same net work. W The first cycle receives energy QB by heat transfer from a hot reservoir at 1000 degree R and rejects energy Q by heat transfer to a reservoir at an intermediate temperature, T. The second cycle receives energy Q by heat transfer from the reservoir at temperature T and rejects energy...
