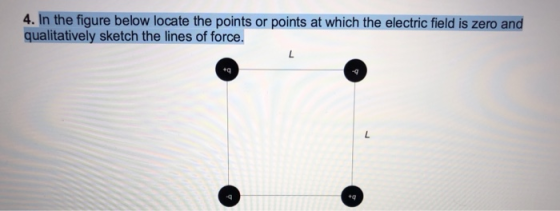

4. In the figure below locate the points or points at which the electric field is...
1. What is the magnitude of a point charge if the electric field it produces at...
1. What is the magnitude of a point charge if the electric field it produces at a distance of 50 cm is 1.0 N/m? 2. Two point charges, one of +2.0 x 10" C and the other of +8.0 x 10-8 C, are separated by a distance of 10 cm. (a) What electric field does each produce at the position of the other? (b) What forces acts on each charge? 3. A charge Q is divided into two parts, q...
Sketch qualitatively the electric field lines in a plane which has three charges forming an equilateral...
Sketch qualitatively the electric field lines in a plane which has three charges forming an equilateral triangle. Find (roughly) equilibrium points indicating whether they are stable or unstable: a) +q, +q, +q, b) +q, +q, -q, c)+2q, +2q, +q, d) +2q, -2q, +q
Problem 3 - Electric force and Electric field I. [8 points) In the figure below the...
Problem 3 - Electric force and Electric field I. [8 points) In the figure below the charge in the middle is Q = -3.0 nC. For what charge qı will the force on a positive charge qz be zero? (Indicate whether qıhas to be positive or negative charge.) 1nC = 10-°C, Coulomb's constant k = 9.0 x 10°N·m2/c2 0 42 10 cm 10 cm II. [12 points] A +5.0-uC point charge is placed at the 0 cm mark of a...
Problem 3 - Electric force and Electric field I. [8 points) In the figure below the...
Problem 3 - Electric force and Electric field I. [8 points) In the figure below the charge in the middle is Q = -3.0 nC. For what charge qı will the force on a positive charge qz be zero? (Indicate whether qıhas to be positive or negative charge.) 1nC = 10-°C, Coulomb's constant k = 9.0 x 10°N·m2/c2 0 42 10 cm 10 cm II. [12 points] A +5.0-uC point charge is placed at the 0 cm mark of a...
Electric Field Activity By the end of this activity you will be able to do the...
Electric Field Activity By the end of this activity you will be able to do the following: • Recognize correct and incorrect features in electric field lines • Qualitatively sketch field lines for a charge distribution. • Qualitatively sketch the motion of a charge given the field lines. 1. General Features of electric field lines Electric field lines are a way of repre- senting the electric field. There are three rules for drawing these lines: • At each point Ē...
The figure below shows the electric field lines from a charge -q. Select the correct diagram...
The
figure below shows the electric field lines from a charge -q.
Select the correct diagram which represents the electric field
lines near a point charge +q.
9 9
The figure below shows two charges on an xy-plane. a. Calculate the electric potential at points A, B, C, and D. b. Calculate the magnitude and direction of the electric field at the origin (0,0)....
The figure below shows two charges on an xy-plane.
a. Calculate the electric potential at points A, B, C, and
D.
b. Calculate the magnitude and direction of the electric field
at the origin (0,0).
c. On the figure, draw a few equipotential lines as well as
some electric field lines that indicate the direction of the
electric field.
d. Sketch the electric potential as a function of x, with x on
the horizontal axis and V(x) on the vertical...
Problem 4 (25 pts). Without doing any calculation, what is the value of the electric field...

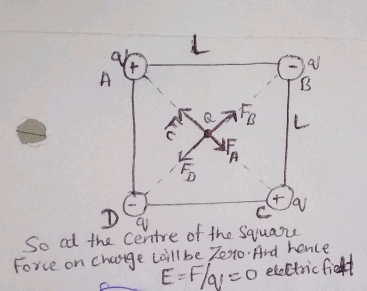

Problem 4 (25 pts). Without doing any calculation, what is the value of the electric field at the origin O due to the configuration of 4 point charges shown in the Figure below? Justify your answer with 1 short sentence. +q +q tq tq
1) Coulomb's Law in 1-D (a) For the charge configuration below, sketch the relevant field lines...
1) Coulomb's Law in 1-D (a) For the charge configuration below, sketch the relevant field lines (or lines of force) that a test charge would experience along the 1-D coordinate system. Note: Choose to either draw the field lines or the lines of force, but not both. (4 pts) (b) For the charge configuration below, identify in which region it is possible for a net zero electric field to exist (Region 1, 2, or 3) and mark the approximate position....
how is the drawing suppose to be like? 3. (4 points) The diagram below shows the equipotential lines around a cluster of positive charge, Q. Draw electric field lines to show the force that a posi...
how is the drawing suppose to be like?
3. (4 points) The diagram below shows the equipotential lines around a cluster of positive charge, Q. Draw electric field lines to show the force that a positivetest charge will experience if placed at points A and S B. Assume that point B is 3x farther from the charge than point A. 98 lenger than at B
3. (4 points) The diagram below shows the equipotential lines around a cluster of positive...
1. What is the magnitude of a point charge if the electric field it produces at a distance of 50 cm is 1.0 N/m? 2. Two point charges, one of +2.0 x 10" C and the other of +8.0 x 10-8 C, are separated by a distance of 10 cm. (a) What electric field does each produce at the position of the other? (b) What forces acts on each charge? 3. A charge Q is divided into two parts, q...
Problem 3 - Electric force and Electric field I. [8 points) In the figure below the charge in the middle is Q = -3.0 nC. For what charge qı will the force on a positive charge qz be zero? (Indicate whether qıhas to be positive or negative charge.) 1nC = 10-°C, Coulomb's constant k = 9.0 x 10°N·m2/c2 0 42 10 cm 10 cm II. [12 points] A +5.0-uC point charge is placed at the 0 cm mark of a...
Problem 3 - Electric force and Electric field I. [8 points) In the figure below the charge in the middle is Q = -3.0 nC. For what charge qı will the force on a positive charge qz be zero? (Indicate whether qıhas to be positive or negative charge.) 1nC = 10-°C, Coulomb's constant k = 9.0 x 10°N·m2/c2 0 42 10 cm 10 cm II. [12 points] A +5.0-uC point charge is placed at the 0 cm mark of a...
Electric Field Activity By the end of this activity you will be able to do the following: • Recognize correct and incorrect features in electric field lines • Qualitatively sketch field lines for a charge distribution. • Qualitatively sketch the motion of a charge given the field lines. 1. General Features of electric field lines Electric field lines are a way of repre- senting the electric field. There are three rules for drawing these lines: • At each point Ē...
The
figure below shows the electric field lines from a charge -q.
Select the correct diagram which represents the electric field
lines near a point charge +q.
9 9
The figure below shows two charges on an xy-plane.
a. Calculate the electric potential at points A, B, C, and
D.
b. Calculate the magnitude and direction of the electric field
at the origin (0,0).
c. On the figure, draw a few equipotential lines as well as
some electric field lines that indicate the direction of the
electric field.
d. Sketch the electric potential as a function of x, with x on
the horizontal axis and V(x) on the vertical...
Problem 4 (25 pts). Without doing any calculation, what is the value of the electric field at the origin O due to the configuration of 4 point charges shown in the Figure below? Justify your answer with 1 short sentence. +q +q tq tq
1) Coulomb's Law in 1-D (a) For the charge configuration below, sketch the relevant field lines (or lines of force) that a test charge would experience along the 1-D coordinate system. Note: Choose to either draw the field lines or the lines of force, but not both. (4 pts) (b) For the charge configuration below, identify in which region it is possible for a net zero electric field to exist (Region 1, 2, or 3) and mark the approximate position....
how is the drawing suppose to be like?
3. (4 points) The diagram below shows the equipotential lines around a cluster of positive charge, Q. Draw electric field lines to show the force that a positivetest charge will experience if placed at points A and S B. Assume that point B is 3x farther from the charge than point A. 98 lenger than at B
3. (4 points) The diagram below shows the equipotential lines around a cluster of positive...
