1) The stepped shaft shown at right has constant bending moment of 40 N.m at the step, transmits 75 N.m constant torque and rotates at constant 500 rpm. The shaft was machined from 1040 cold-rolled steel with D = 22.8 mm, d = 19 mm and r = 1.9 mm. Determine fatigue factor of safety for infinite life with reliability of 99%. Use Case 3) Goodman failure and ignore Neuber notch sensitivity.

2) Check factor of safety for fatigue failure of H02 problem 4) after five years of continuous operation at crank speed 15 rpm with 99% reliability. Use x 1 inch 6061-T6511 (or 6061-T6)
aluminum bar stock available from Online Metals. Do not include stress concentrations for connections at A and B. Use Fah = 2200 Ibf and Fmean= 1800 lbf on each bar and use Case 3) Goodman failure.

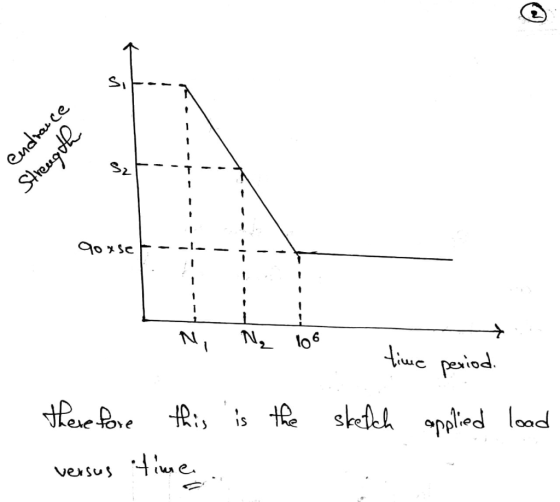

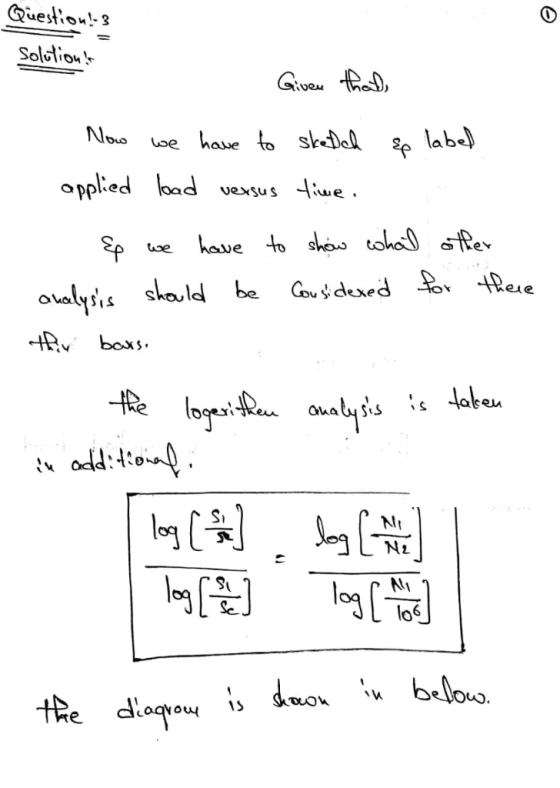

3) Sketch and label applied load versus time for problem 2) above. What other analysis should be considered for these thin bars?
The stepped shaft shown at right has constant bending moment of 40 N.m at the step
The shaft shown in figure is subjected to a reversed bending torque .The moment is distributed along the shaft as iflustra values 2000N.m and 3000 transmitted torque T-4000 N.m .The shaft is made of hardened steel having (Sy-900 MP, Su-1200 MP. ),and all important surfaces are finished by grinding For reliability of 99% and a safety factor of 2.5. (a) Determine the diameter d against static failure (b) Determine the diameter d against fatigue failure using Goodman approach if D-1.1d...
Question 1: A rotating shaft with a diameter of 30 mm is made of 1018 cold-rolled steel. The stress concentration factor is 2.366, and the shear stress concentration factor is 1.75 respectively. The notch sensitivity is 0.78 and for shear it's 0.96 Estimate the factor of safety guarding against fatigue failure using modified-Goodman and Soder- berg for each of the following loading conditions: a) The shaft is subjected to a completely reversed torque of 120 N.m in phase with a...
2.The shaft shown in the figure is driven by a gear at the right keyways, drive a fan at eh left keyways, and supported by two deep grove ball bearings. The shaft is made of AISI 1020 cold- drawn steel. At steady state speed, the gear transmits a radial load of 230 Ibf and a tangential load of 633 Ibf at pitch diameter of 8 inch. Determine fatigue factor of safety at any potentially critical locations using the DE-Gerber failure...
The rotating solid steel shaft is simply supported by bearings at points B and C and is driven by gear (not shown) which meshes with the spur gear at D, which has a 150-mm pitch diameter. The force F from the drive gear acts at a pressure angle of 20". The shaft transmits a torque to point A of TA = 340 N.m. The shaft is machined from steel with Sy= 420 MPa and Sut = 560 MPa. The fatigue...
The shaft shown in the figure is machined from AISI 1040 CD steel and is supported in rolling bearings at A and B. The applied forces F1 = 1500 lbf and F2 = 3000 lbf are coming off of gears located at respective positions. The shaft rotates at 2000 rpm while transmitting 50hp between the gears. Determine the minimum fatigue factor of safety based on achieving infinite life using Modified- Goodman theory. If infinite life is not predicted, estimate the...
Problem 2: A hot-rolled shaft shoulder has a large diameter D is 45 mm, the small diameter d is 30 mm, and the fille (notch) radius is 3 mm. The bending moment, and the steady torsion moments are 100 N.m, and 75 N. respectively. The reliability goal for the endurance limit is 0.90. If the shaft is made of AISI 1030 hot-roll steel, (a) Determine the fatigue stress concentration factors (Ks, and Ks). (b) Determine endurance limit (Se). (c) Determine...
QUESTION 10 The shaft shown in the figure is driven by a gear at the right keyway, drives a fan at the left keyway, and is supported by two deep-groove ball bearings at locations A and B. The shaft is made from AISI 1045 cold-drawn steel. At steady-state speed, the gear transmits a radial load of 300 lbf and a tangential load of 700 lbf at a pitch diameter of 8 in. Assume that the weight and axial load of...
The shaft shown in the figure is driven by a gear at the right keyway, drives a fan at the left keyway, and is supported by two deep-groove ball bearings at locations A and B. The shaft is made from AISI 1045 cold-drawn steel. At steady-state speed, the gear transmits a radial load of 300 lbf and a tangential load of 700 lbf at a pitch diameter of 8 in. Assume that the weight and axial load of the fan...
The shaft shown in the figure is driven by a gear at the right keyway, drives a fan at the left keyway, and is supported by two deep-groove ball bearings at locations A and B. The shaft is made from AISI 1045 cold-drawn steel. At steady-state speed, the gear transmits a radial load of 300 lbf and a tangential load of 700 lbf at a pitch diameter of 8 in. Assume that the weight and axial load of the fan...
ME 117 Final The disk sander shown in the figure has a steel shaft with a yield strength of 600 Mpa and an ultimate strength of 700 Mpa. The most severe loading occurs when an object is held near the periphery of the disk (100 mm radius) with sufficient force to develop a friction torque of 16 N·m. Assume a friction coefficient of 0.6 between the object and the disk. What is the safety factor with respect to eventual fatigue...
