Question

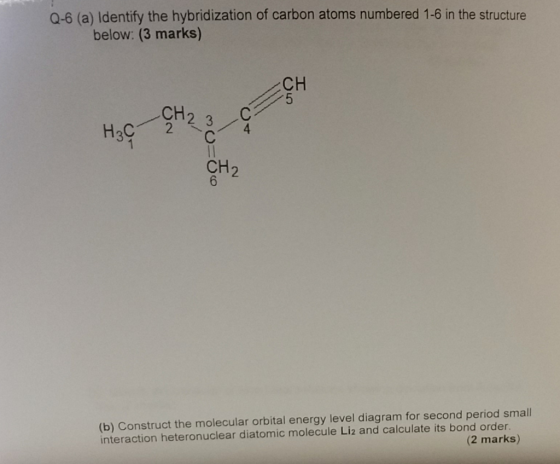

Q-6 (a) Identify the hybridization of carbon atoms numbered 1-6 in the structure below: (3 marks) CH 5 CH2 C 3 H3C 2 4 C CH2 (b) Construct the molecular orbital energy level diagram for second period small interaction heteronuclear diatomic molecule Li2 and calculate its bond order. (2 marks

Answer 1

6a)

To check the hybridisation of the C atoms, count the number of atoms the Carbon is attached to.

If it is attached to 4 other atoms , then the hybridisation is sp³. (to remember :1s + 3p = 4 total atoms bonded to Carbon)

Similarly, it is sp² , then it will be attached to 3 other atoms, and for sp, Carbon will be attached to 2 more atoms.

Alternatively, if a carbon has a triple bond then it will be sp hybridised, if it has a double bond, it is sp2 hybridised, and if it has only single bonds, then it will be sp3 hybridised.

However, if an allene is given : CH₂=C=CH₂ , then the two terminal carbons are sp2 hybridised (as expected) while the central carbon is sp hybridised.

In the given question :

C1 = sp3

C2 = sp3,

C3 = sp2

C4 = sp

C5 = sp

C6 = sp2

(b)

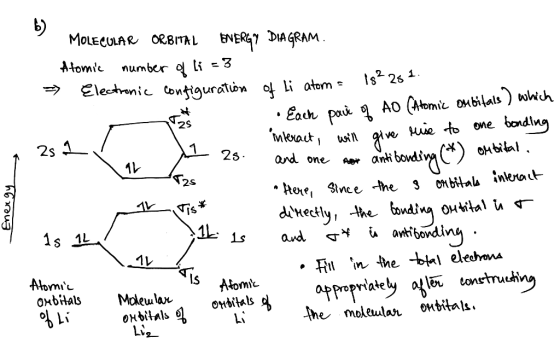

MOLECULAR ORBITAL NER7 DIAGRAM Atomic number ol Li =3 1. Electranic Contiguration of Li atom Each pa* AO (Atomic oMbilals) whch qive He to one bending 2S Mlexact, uin 2s A ibonsya C*) okit оЖ Бtalb ineratt 2s Ond one anti Apr T2s tere, Slnce he Vis Фnding oнtital ug avifanding dнetly, the and 1V Albmi'e онбнas 0pprpriately omnetruding the moleular onbitalu. Atomi onditals g Moleu lax OHbitals _Enexgy

Bond order = (No. of bonding electrons - No. of antibonding electrons)/2

For calculating this, we can either consider all the electrons, or we can consider only the valence MOs. They both will give same result.

If we consider all electrons : No. of bonding electrons = 4 (from σ1s and 2s) , No. of antibonding electrons = 2 (from σ*1s)

So, bond order = (4-2)/2 = 1

If we consider only valence MO (here, it is σ2s and σ*2s) then bonding electrons = 2(σ2s) and antibonding electrons = 0, which gives bond order = (2-0)/2 = 1
