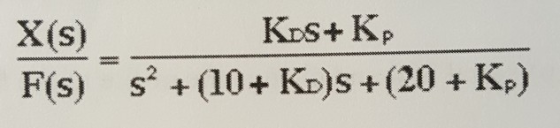

This is transfer function for simple mass, spring, and damper system with proportional- Derivative control. Could some one show me the derive for this equation

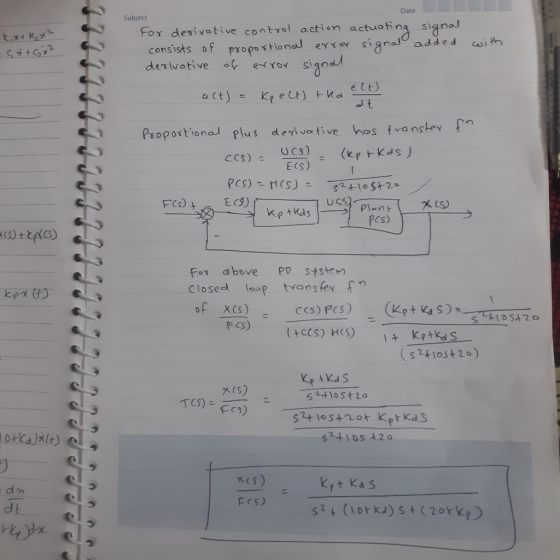

Homework Answers
Add Answer to:
This is transfer function for simple mass, spring, and
damper system with proportional- Derivative control. Could...
This is transfer function for simple mass, spring, and damper system with proportional-integral-derivative control. Could some...
This is transfer function for simple mass, spring, and
damper system with proportional-integral-derivative control. Could
some one show me the derive for this equation
Krs2Ks+ K s3 +(10+ Kn)s2 +(20 + Kp)S+ Kr X(s) F(s)
Krs2Ks+ K s3 +(10+ Kn)s2 +(20 + Kp)S+ Kr X(s) F(s)
On a ECP Rectilinear Plant (1 DOF system) mass-spring-damper system, I am given the transfer function...
On a ECP Rectilinear Plant (1 DOF system) mass-spring-damper system, I am given the transfer function as: 1/(M*s^2 + B*s + K). With values mass M = 0.67538 kg, friction coefficient B = 1.8951 Ns/M, spring constant K = 322.278 N/M, and Damping coefficient d=2.54821 Ns/m. I know the Open loop system model is: (1/(0.6738s^2 + 1.89515s + 322.278)) = (1.481/(s^2+2.806s+4.772)) Implement a simple controller using only one mass (+spring + damper) so the control is critically damped
3. Consider the following mass-spring-damper system. Let m= 1 kg, b = 10 Ns/m, and k...
3. Consider the following mass-spring-damper system. Let m= 1 kg, b = 10 Ns/m, and k = 20 N/m. b m F k a) Derive the open-loop transfer function X(S) F(s) Plot the step response using matlab. b) Derive the closed-loop transfer function with P-controller with Kp = 300. Plot the step response using matlab. c) Derive the closed-loop transfer function with PD-controller with Ky and Ka = 10. Plot the step response using matlab. d) Derive the closed-loop transfer...
Required Plant Transfer Function! 사, (H183) 3. Design the proportional (Kp) and derivative (Ka) ...
I need help with the following:
Required Plant Transfer Function! 사, (H183) 3. Design the proportional (Kp) and derivative (Ka) coefficients for a controller in Propotional- Derivative with Derivative on Output Only (PD-DOO) form. (Fig. 4). T(t) Gp(s) Figure 4: Proportional-Derivative closed loop control with Derivative-on-Output-Only Derive the closed loop transfer function, G2(s). Let the desired specifications of the compensated, closed loop system be wn 12 and-0.6 -In this configuration the known parameters are J, c, wn and Ç. Determine...
On a ECP Rectilinear Plant (1 DOF system) mass-spring-damper system, I am given the transfer func...
On a ECP Rectilinear Plant (1 DOF system) mass-spring-damper system, I am given the transfer function as: 1/(M*s^2 + B*s + K). With values mass M = 0.67538 kg, friction coefficient B = 1.8951 Ns/M, spring constant K = 322.278 N/M, and Damping coefficient d=2.54821 Ns/m. I know the Open loop system model is: (1/(0.6738s^2 + 1.89515s + 322.278)) = (1.481/(s^2+2.806s+4.772)) Implement a simple controller using only one mass (+spring + damper) so the control is critically damped
This feedback control system represents Integral Control of a Mass-Spring-Damper system: Controller Mass-Spring-Damper R(S) + Y(s)...
This feedback control system represents Integral Control of a Mass-Spring-Damper system: Controller Mass-Spring-Damper R(S) + Y(s) 17 S2 + 2s +6 NOTE: 1) Integral control is being used here (i.e. C(s) = Determine the values of gain "K,” for which the closed-loop system (i.e. RS ) remains stable.
Problem 1 (Harmonic Oscillators) A mass-damper-spring system is a simple harmonic oscillator whose dynamics is governed...
Problem 1 (Harmonic Oscillators) A mass-damper-spring system is a simple harmonic oscillator whose dynamics is governed by the equation of motion where m is the mass, c is the damping coefficient of the damper, k is the stiffness of the spring, F is the net force applied on the mass, and x is the displacement of the mass from its equilibrium point. In this problem, we focus on a mass-damper-spring system with m = 1 kg, c-4 kg/s, k-3 N/m,...
Problem 1. Consider the following mass, spring, and damper system. Let the force F be the...
Problem 1. Consider the following mass, spring, and damper system. Let the force F be the input and the position x be the output. M-1 kg b- 10 N s/m k 20 N/nm F = 1 N when t>=0 PART UNIT FEEDBACK CONTROL SYSTEM 5) Construct a unit feedback control for the mass-spring-damper system 6) Draw the block diagram of the unit feedback control system 7) Find the Transfer Function of the closed-loop (CL) system 8) Find and plot the...
Consider the mass-spring-damper system depicted in the figure below, where the input of the system is...
Consider the mass-spring-damper system depicted in the figure below, where the input of the system is the applied force F(t) and the output of the system is xít) that is the displacement of the mass according to the coordinate system defined in that figure. Assume that force F(t) is applied for t> 0 and the system is in static equilibrium before t=0 and z(t) is measured from the static equilibrium. b m F Also, the mass of the block, the...
PLEASE DO IN MATLAB Problem 8 (PID feedback control). This problem is about Proportional-Integral-Derivative feedback control...
PLEASE DO IN MATLAB
Problem 8 (PID feedback control). This problem is about Proportional-Integral-Derivative feedback control systems. The general setup of the system we are going to look at is given below: e(t) u(t) |C(s) y(t) P(s) r(t) Here the various signals are: signal/system r(t) y(t) e(t) P(s) C(s) и(t) meaning desired output signal actual output signal error signal r(t) y(t) Laplace transform of the (unstable) plant controller to be designed control signal Our goal is to design a controller...
This is transfer function for simple mass, spring, and
damper system with proportional-integral-derivative control. Could
some one show me the derive for this equation
Krs2Ks+ K s3 +(10+ Kn)s2 +(20 + Kp)S+ Kr X(s) F(s)
Krs2Ks+ K s3 +(10+ Kn)s2 +(20 + Kp)S+ Kr X(s) F(s)
3. Consider the following mass-spring-damper system. Let m= 1 kg, b = 10 Ns/m, and k = 20 N/m. b m F k a) Derive the open-loop transfer function X(S) F(s) Plot the step response using matlab. b) Derive the closed-loop transfer function with P-controller with Kp = 300. Plot the step response using matlab. c) Derive the closed-loop transfer function with PD-controller with Ky and Ka = 10. Plot the step response using matlab. d) Derive the closed-loop transfer...
I need help with the following:
Required Plant Transfer Function! 사, (H183) 3. Design the proportional (Kp) and derivative (Ka) coefficients for a controller in Propotional- Derivative with Derivative on Output Only (PD-DOO) form. (Fig. 4). T(t) Gp(s) Figure 4: Proportional-Derivative closed loop control with Derivative-on-Output-Only Derive the closed loop transfer function, G2(s). Let the desired specifications of the compensated, closed loop system be wn 12 and-0.6 -In this configuration the known parameters are J, c, wn and Ç. Determine...
This feedback control system represents Integral Control of a Mass-Spring-Damper system: Controller Mass-Spring-Damper R(S) + Y(s) 17 S2 + 2s +6 NOTE: 1) Integral control is being used here (i.e. C(s) = Determine the values of gain "K,” for which the closed-loop system (i.e. RS ) remains stable.
Problem 1 (Harmonic Oscillators) A mass-damper-spring system is a simple harmonic oscillator whose dynamics is governed by the equation of motion where m is the mass, c is the damping coefficient of the damper, k is the stiffness of the spring, F is the net force applied on the mass, and x is the displacement of the mass from its equilibrium point. In this problem, we focus on a mass-damper-spring system with m = 1 kg, c-4 kg/s, k-3 N/m,...
Problem 1. Consider the following mass, spring, and damper system. Let the force F be the input and the position x be the output. M-1 kg b- 10 N s/m k 20 N/nm F = 1 N when t>=0 PART UNIT FEEDBACK CONTROL SYSTEM 5) Construct a unit feedback control for the mass-spring-damper system 6) Draw the block diagram of the unit feedback control system 7) Find the Transfer Function of the closed-loop (CL) system 8) Find and plot the...
Consider the mass-spring-damper system depicted in the figure below, where the input of the system is the applied force F(t) and the output of the system is xít) that is the displacement of the mass according to the coordinate system defined in that figure. Assume that force F(t) is applied for t> 0 and the system is in static equilibrium before t=0 and z(t) is measured from the static equilibrium. b m F Also, the mass of the block, the...
PLEASE DO IN MATLAB
Problem 8 (PID feedback control). This problem is about Proportional-Integral-Derivative feedback control systems. The general setup of the system we are going to look at is given below: e(t) u(t) |C(s) y(t) P(s) r(t) Here the various signals are: signal/system r(t) y(t) e(t) P(s) C(s) и(t) meaning desired output signal actual output signal error signal r(t) y(t) Laplace transform of the (unstable) plant controller to be designed control signal Our goal is to design a controller...
