Moments of the frame
Add Answer to:

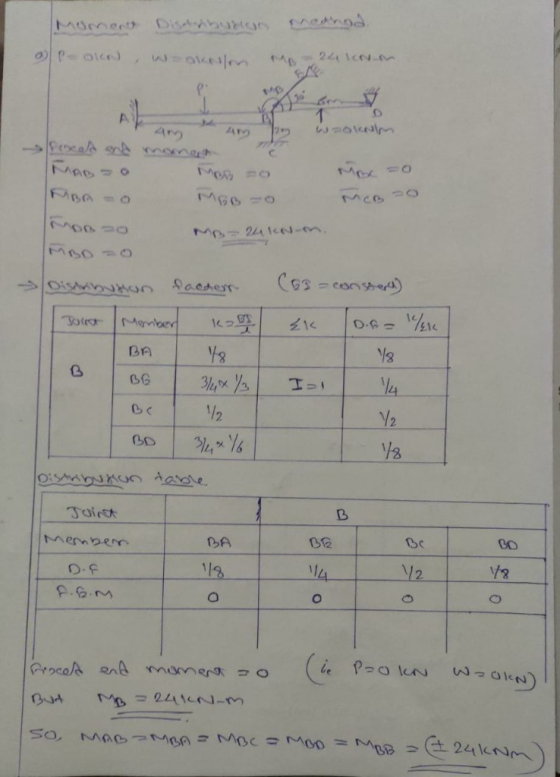

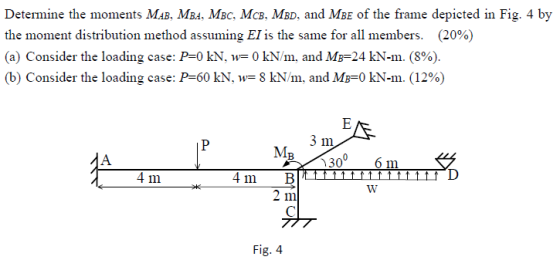

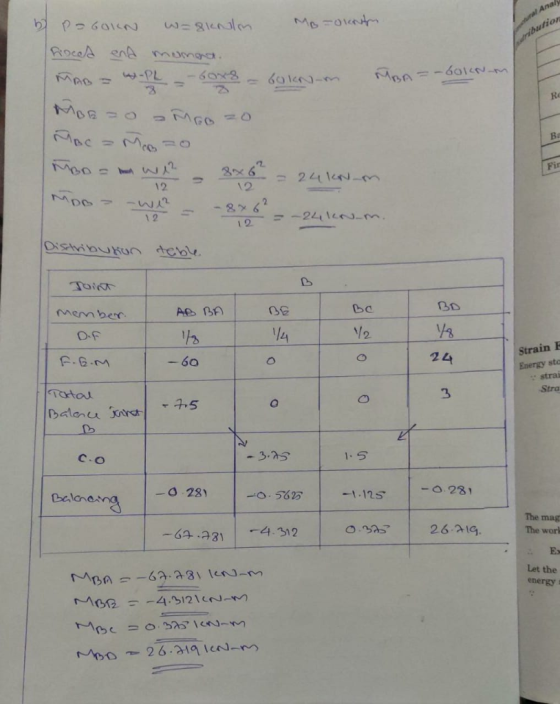

Determine the moments MAB, MBa. MBc. McB, MBD, and MBe of the frame depicted in Fig....
PLEASE USE MOMENT DISTRIBUTION METHOD A.)MAB B.)MBA C.)MBC D.)MCB E.) Draw the moment diagram for the...
PLEASE USE MOMENT DISTRIBUTION METHOD
A.)MAB
B.)MBA
C.)MBC
D.)MCB
E.) Draw the moment diagram for the beam. Follow the sign
convention given in Chapter 4 of the textbook.
Problem 11.7 Consider the beam shown in (Figure 1). Assume the support at B is a roller and A and C are fixed. EI is constant. Figure < 1 of 1 > 900 lb 900 16 400 lb |-6 ft--6 ft--6 ft + 10 ft-+-10 ft —
Use moment distribution method or slope deflection method. The frame shown if Fig. 2.1 is supporting...
Use moment distribution method or slope deflection
method.
The frame shown if Fig. 2.1 is supporting a lateral load of 60 kN and a gravity load of 50 kNIm. Neglect the weight of the members (a) Determine th reaction forces. (b) Draw the axial, shear, and bending moment and qualitative deflected shape diagrams of the frame. Specify values at a change of loading positions and at all points of zero shear and moment. Use slope-deflection method 2m Fig. 2.1 w...
What is the reaction Ax to the nearest 0.01 kN for the following frame? El are...
What is the reaction Ax to the nearest 0.01 kN for the following frame? El are constant and the same for all members. Consider only bending energy. W = 67 kN/m w -5 m-+ 10 m ---5 m 5 m А B 422 CHAPTER 10 ANALYSIS OF STATICALLY INDETERMINATE STRUCTURES BY THE FORCE METHOD 10.5 Force Method of Analysis: Frames The force method is very useful for solving problems involving statically indeterminate frames that have a single story and unusual...
Moment Distribution Method Determine the moments and the reactions for the continuous beam and frame using...
Moment Distribution Method
Determine the moments and the reactions for the continuous beam and
frame using the moment
distribution method.
Thank you.
-60 kN/m B с 0 4m A D 3 m
C2 Done session.masteringengine AA <HW11 - Attempt 1 Problem 4 < 4 of 4 The frame...
C2 Done session.masteringengine AA <HW11 - Attempt 1 Problem 4 < 4 of 4 The frame is subjected to the loading shown in. 1sc = 800 in -12 ft 8 ft P 10=550 in 8 ft Assume the joint at B is fixed, C is pinned, and A is fixed. The moment of inertia of each member is listed in the figure. Suppose that E = 29(103) ksi, P=6 k, w = 2.2 k/ft. Part A C2 Done session.masteringengine AA...
Use the Moment Distribution Method to analyse the frame when subjected to the loading shown. Dimensions and load values...
Use the Moment Distribution Method to analyse the frame when subjected to the loading shown. Dimensions and load values, which depend on your student ID, are given in the table below Determine the member forces and support reactions required in the table below Enter your answers in the space provided. Dimensions 5.4 m 2.6 m 6.8 m 3.4 m 280 kN lied actions 285 kN 13 kN/m Provide Answer for the followings to an accuracy of 2.5% sult required Absol...
C2 Done session.masteringengine AA <HW11 - Attempt 1 Problem 4 < 4 of 4 The frame...
C2 Done session.masteringengine AA <HW11 - Attempt 1 Problem 4 < 4 of 4 The frame is subjected to the loading shown in. 1sc = 800 in -12 ft 8 ft P 10=550 in 8 ft Assume the joint at B is fixed, C is pinned, and A is fixed. The moment of inertia of each member is listed in the figure. Suppose that E = 29(103) ksi, P=6 k, w = 2.2 k/ft. Part A C2 Done session.masteringengine AA...
03: Given the statically indeterminate frame as shown in Fig. Q3 below, determine the member end...
03: Given the statically indeterminate frame as shown in Fig. Q3 below, determine the member end moments and the support reactions of the frame using moment distribution method. Moment distribution to be done for 3 iterations of locking and unlocking cycle. A point load of 100KN is acting on span BC at 1/4 point of the span as shown. Support A and D are fixed supports. There is a roller support at joint C to prevent the frame from going...
determine the moments at all supports using moment distribution method. EI is constant.Perform unit distribution 5...
determine the moments at all supports using moment
distribution method. EI is constant.Perform unit distribution 5
only
3. Determine the moments at all supports using Moment Distribution Method. El is constant. Perform until Distribution 5 only. All lengths are expressed in meters. The 20 KN acts 3 meters from the fixed support. Set w = 2 kN/m. (20 points) 20 KN w 오 오 오 4 5 5 t
Part B) For the frame (no sidesway) below, determine the reactions and draw the shear and moment ...
Part B) For the frame (no sidesway) below, determine the reactions and draw the shear and moment diagrams using the moment-distribution method of analysis. Joints A, B and E are fixed and all members are rigidly connected at C and D. You may perform the moment distribution by hand. E is constant, but I is as shown on the frame 50 kN 50 kN 4 m 6 kN/m 21 1.51 1.51 6 m 8 Part 3) Reanalyze the frame of...
PLEASE USE MOMENT DISTRIBUTION METHOD
A.)MAB
B.)MBA
C.)MBC
D.)MCB
E.) Draw the moment diagram for the beam. Follow the sign
convention given in Chapter 4 of the textbook.
Problem 11.7 Consider the beam shown in (Figure 1). Assume the support at B is a roller and A and C are fixed. EI is constant. Figure < 1 of 1 > 900 lb 900 16 400 lb |-6 ft--6 ft--6 ft + 10 ft-+-10 ft —
Use moment distribution method or slope deflection
method.
The frame shown if Fig. 2.1 is supporting a lateral load of 60 kN and a gravity load of 50 kNIm. Neglect the weight of the members (a) Determine th reaction forces. (b) Draw the axial, shear, and bending moment and qualitative deflected shape diagrams of the frame. Specify values at a change of loading positions and at all points of zero shear and moment. Use slope-deflection method 2m Fig. 2.1 w...
What is the reaction Ax to the nearest 0.01 kN for the following frame? El are constant and the same for all members. Consider only bending energy. W = 67 kN/m w -5 m-+ 10 m ---5 m 5 m А B 422 CHAPTER 10 ANALYSIS OF STATICALLY INDETERMINATE STRUCTURES BY THE FORCE METHOD 10.5 Force Method of Analysis: Frames The force method is very useful for solving problems involving statically indeterminate frames that have a single story and unusual...
Moment Distribution Method
Determine the moments and the reactions for the continuous beam and
frame using the moment
distribution method.
Thank you.
-60 kN/m B с 0 4m A D 3 m
C2 Done session.masteringengine AA <HW11 - Attempt 1 Problem 4 < 4 of 4 The frame is subjected to the loading shown in. 1sc = 800 in -12 ft 8 ft P 10=550 in 8 ft Assume the joint at B is fixed, C is pinned, and A is fixed. The moment of inertia of each member is listed in the figure. Suppose that E = 29(103) ksi, P=6 k, w = 2.2 k/ft. Part A C2 Done session.masteringengine AA...
Use the Moment Distribution Method to analyse the frame when subjected to the loading shown. Dimensions and load values, which depend on your student ID, are given in the table below Determine the member forces and support reactions required in the table below Enter your answers in the space provided. Dimensions 5.4 m 2.6 m 6.8 m 3.4 m 280 kN lied actions 285 kN 13 kN/m Provide Answer for the followings to an accuracy of 2.5% sult required Absol...
C2 Done session.masteringengine AA <HW11 - Attempt 1 Problem 4 < 4 of 4 The frame is subjected to the loading shown in. 1sc = 800 in -12 ft 8 ft P 10=550 in 8 ft Assume the joint at B is fixed, C is pinned, and A is fixed. The moment of inertia of each member is listed in the figure. Suppose that E = 29(103) ksi, P=6 k, w = 2.2 k/ft. Part A C2 Done session.masteringengine AA...
03: Given the statically indeterminate frame as shown in Fig. Q3 below, determine the member end moments and the support reactions of the frame using moment distribution method. Moment distribution to be done for 3 iterations of locking and unlocking cycle. A point load of 100KN is acting on span BC at 1/4 point of the span as shown. Support A and D are fixed supports. There is a roller support at joint C to prevent the frame from going...
determine the moments at all supports using moment
distribution method. EI is constant.Perform unit distribution 5
only
3. Determine the moments at all supports using Moment Distribution Method. El is constant. Perform until Distribution 5 only. All lengths are expressed in meters. The 20 KN acts 3 meters from the fixed support. Set w = 2 kN/m. (20 points) 20 KN w 오 오 오 4 5 5 t
Part B) For the frame (no sidesway) below, determine the reactions and draw the shear and moment diagrams using the moment-distribution method of analysis. Joints A, B and E are fixed and all members are rigidly connected at C and D. You may perform the moment distribution by hand. E is constant, but I is as shown on the frame 50 kN 50 kN 4 m 6 kN/m 21 1.51 1.51 6 m 8 Part 3) Reanalyze the frame of...
