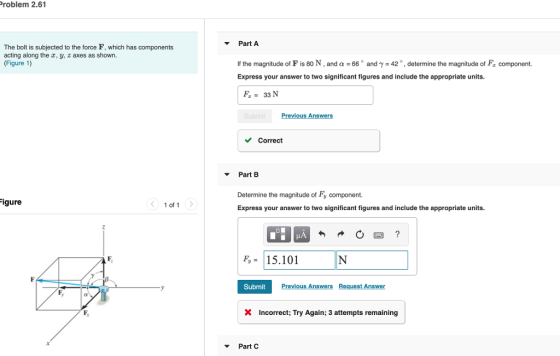

roblem 2.61 Part A The bolt is subjected to the force F, which has components acting along the a, y, z axes as shown. (Figure 1) If the magnitude of F is 80 N and α-66 and γ-42°, determine the magnitude of F, component. Express your answer to two significant figures and include the appropriate units F33 N Answer Correct Part B Determine the magnitude of Fy component. igure 1 of Express your answer to two significant figures and include the appropriate units. F 15.101 Submit us Answers Request Answer Incorrect. Try Again; 3 attempts remaining Part C only part b

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

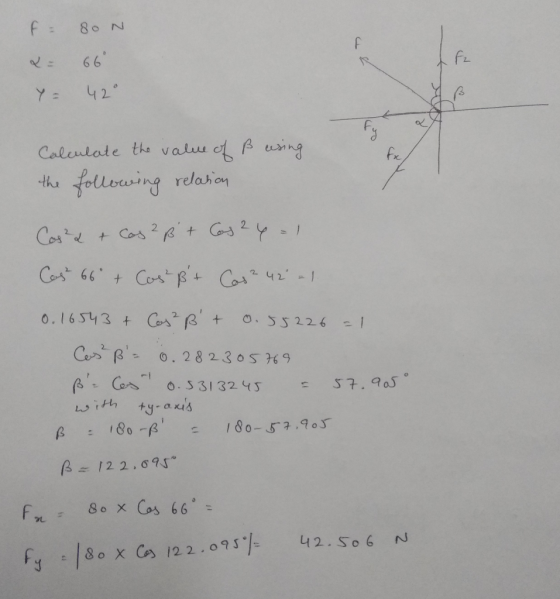

:66 Y42 CS β= 0.282805749 80 x Cos 66. oL

0 0
Add a comment
Know the answer?
Add Answer to:
only part b roblem 2.61 Part A The bolt is subjected to the force F, which...
