Homework Answers

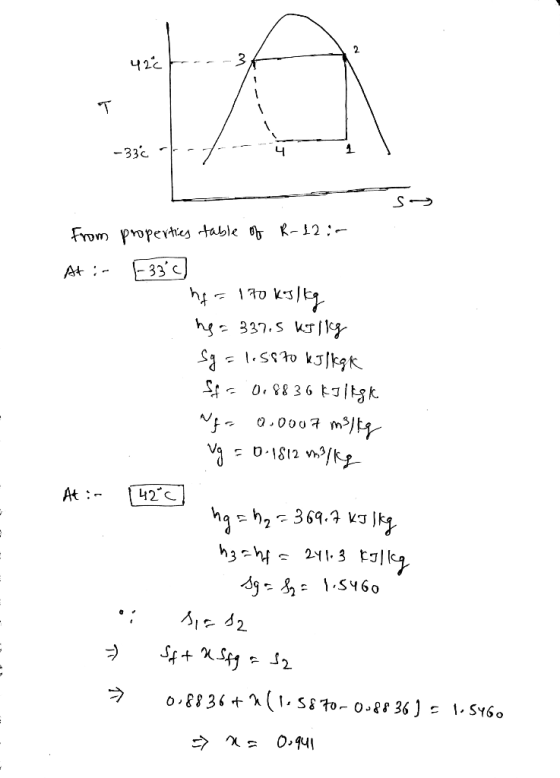

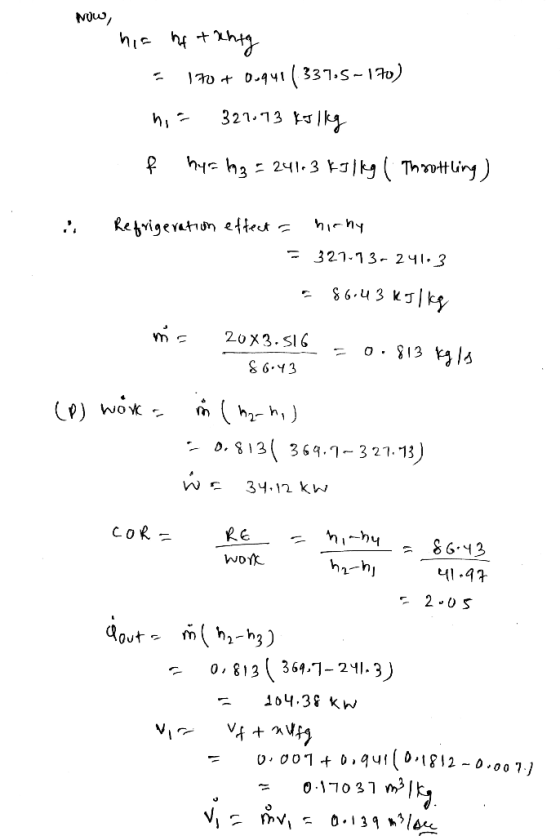

There are differences in the
answer calculated and answer provided due to certain differences in
the values of properties from the data book.
Add Answer to:

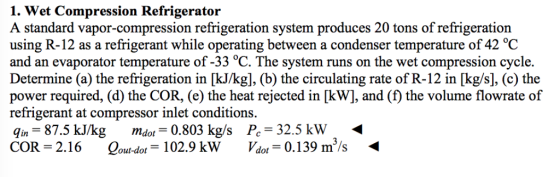

1. Wet Compression Refrigerator A standard vapor-compression refrigeration system produces 20 tons of refrigeration using R-12...
EXAMPLE 6 A household refrigeration system works with a vapor compression refrigeration system with two evaporators...
EXAMPLE 6 A household refrigeration system works with a vapor compression refrigeration system with two evaporators using Refrigerant 134a as the working fluid. This arrangement is used to achieve refrigeration at two different temperatures with a single compressor and a single condenser. The low temperature evaporator operates at -18°C with saturated vapor at its exit and has a refrigerating capacity of 10.5 kW (3 tons). The higher- temperature evaporator produces saturated vapor at 3.2 bar at its exit and has...
(12 points) A refrigerator using refrigerant-134a as the working fluid operates on the vapor compression cycle....
(12 points) A refrigerator using refrigerant-134a as the working fluid operates on the vapor compression cycle. The cycle operates between 200 kPa and 1.2 MPa. The refrigerant flows through the cycle at a rate of 0.019 kg/s. The (actual) refrigerator has a compressor with an isentropic efficiency of 85%. The refrigerant enters the compressor slightly superheated by 56 C hint add this to the saturation temperature). The refrigerant leaves the condenser slightly subcooled by 1.9°C. What is the rate of...
Tt (12 points) A refrigerator using refrigerant-134a as the working fluid operates on the vapor compression...
Tt
(12 points) A refrigerator using refrigerant-134a as the working fluid operates on the vapor compression cycle. The cycle operates between 200 kPa and 1.2 MPa. The refrigerant flows through the cycle at a rate of 0.015 kg/s. The actual) refrigerator has a compressor with an isentropic efficiency of 82%. The refrigerant enters the compressor slightly superheated by 6.2°C (hint: add this to the saturation temperature). The refrigerant leaves the condenser slightly subcooled by 1.8°C. What is the rate of...
A freezer is designed, based on vapor-compression refrigeration cycle. The designed conditions are: R-134a as refrigerant,...
A freezer is designed, based on vapor-compression refrigeration cycle. The designed conditions are: R-134a as refrigerant, with a cooling capacity of 500 kW; compressor of 70% efficiency, with a superheat of 10°C before compressor inlet; operation temperature of -10°C inside the refrigerator, with the environment temperature of 25°C outside the refrigerator; Determine the pressure range of refrigeration cycle if a 10°C difference is required to ensure effective heat transfer of evaporator and condenser; Plot the refrigeration cycle on P-h diagram;...
Problem #1 [30 Points] Vapor Compression Refrigeration Cycle An ideal vapor compression refrigeration system cycle, with...
Problem #1 [30 Points] Vapor Compression Refrigeration Cycle An ideal vapor compression refrigeration system cycle, with ammonia as the working fluid, has an evaporator temperature of -20°C and a condenser pressure of 12 bar. Saturated vapor enters the compressor, and saturated liquid exits the condenser. The mass flow rate of refrigerant is 3 kg/minute. Determine the coefficient of performance and the refrigerating capacity in tons. Given: Find: T-s Process Diagram: Schematic Assume:
In a simple vapor compression refrigeration cycle: - Ammonia exits the evaporator as saturated· vapor at...
In a simple vapor compression refrigeration cycle: - Ammonia exits the evaporator as saturated· vapor at -22°C (State 1 ) .. - Ammonia enters the condenser at 16 Bar and 160°C (State 2; h2 = 1798.45 kJ/kg) - Ammonia exits the condenser as saturated l1quid at 16 Bar (State 3; h3 = 376.46 kJ/kg) - The refrigeration capacity is 150 kW. Draw the system schematic and the T-s diagram and determine: i) the mass flow rate· of refrigerant, ii) the...
A 100-ton refrigeration system operates on the simple vapor compression refrigeration system with R-22 as the...
A 100-ton refrigeration system operates on the simple vapor compression refrigeration system with R-22 as the working fluid. The evaporator pressure is 2 bar and the condenser pressure is 30 bar. The refrigerant leaves the compressor at 160oC. 1 ton of refrigeration = 3.517 kW Determine the cooling load, in kW. Plot all five points (1, 2s, 2a, 3, 4) on the P-h diagram. Determine the power consumed by the refrigeration system, in kW. Determine the COP of the system. Isentropic efficiency...
A refrigerator operates on an ideal vapor compression refrigeration cycle with R-134a as the working fluid....
A refrigerator operates on an ideal vapor compression refrigeration cycle with R-134a as the working fluid. The evaporator pressure is 0.12 MPa and the condenser pressure is 0.8 MPa. If the rate of heat removal from the refrigerated space is 32 kJ/s, the mass flow rate of refrigerant is
4. (10 points) An ideal vapor-compression refrigeration cycle is modified to include a counter- f...
4. (10 points) An ideal vapor-compression refrigeration cycle is modified to include a counter- flow heat exchanger, as shown below.Ammonia leaves the evaporator as saturated vapor at 1.0 bar and is heated at constant pressure to S "C before entering the compressor. Following isentropic compression to 18 bar, the refrigerant passes through the condenser, exiting at 40 18 bar. The liquid then passes through the heat exchanger, entering the expansion valve at 18 bar. If the mass flow rate of...
EXAMPLE 6 A household refrigeration system works with a vapor compression refrigeration system with two evaporators using Refrigerant 134a as the working fluid. This arrangement is used to achieve refrigeration at two different temperatures with a single compressor and a single condenser. The low temperature evaporator operates at -18°C with saturated vapor at its exit and has a refrigerating capacity of 10.5 kW (3 tons). The higher- temperature evaporator produces saturated vapor at 3.2 bar at its exit and has...
(12 points) A refrigerator using refrigerant-134a as the working fluid operates on the vapor compression cycle. The cycle operates between 200 kPa and 1.2 MPa. The refrigerant flows through the cycle at a rate of 0.019 kg/s. The (actual) refrigerator has a compressor with an isentropic efficiency of 85%. The refrigerant enters the compressor slightly superheated by 56 C hint add this to the saturation temperature). The refrigerant leaves the condenser slightly subcooled by 1.9°C. What is the rate of...
Tt
(12 points) A refrigerator using refrigerant-134a as the working fluid operates on the vapor compression cycle. The cycle operates between 200 kPa and 1.2 MPa. The refrigerant flows through the cycle at a rate of 0.015 kg/s. The actual) refrigerator has a compressor with an isentropic efficiency of 82%. The refrigerant enters the compressor slightly superheated by 6.2°C (hint: add this to the saturation temperature). The refrigerant leaves the condenser slightly subcooled by 1.8°C. What is the rate of...
Problem #1 [30 Points] Vapor Compression Refrigeration Cycle An ideal vapor compression refrigeration system cycle, with ammonia as the working fluid, has an evaporator temperature of -20°C and a condenser pressure of 12 bar. Saturated vapor enters the compressor, and saturated liquid exits the condenser. The mass flow rate of refrigerant is 3 kg/minute. Determine the coefficient of performance and the refrigerating capacity in tons. Given: Find: T-s Process Diagram: Schematic Assume:
4. (10 points) An ideal vapor-compression refrigeration cycle is modified to include a counter- flow heat exchanger, as shown below.Ammonia leaves the evaporator as saturated vapor at 1.0 bar and is heated at constant pressure to S "C before entering the compressor. Following isentropic compression to 18 bar, the refrigerant passes through the condenser, exiting at 40 18 bar. The liquid then passes through the heat exchanger, entering the expansion valve at 18 bar. If the mass flow rate of...
