MA digital filter. Using Example 16.39 as a guide, compose a Matlab script to implement a...

MA digital filter. Using Example 16.39 as a guide, compose a Matlab script to implement a general MA digital filter. Verify your program by computing 10 samples of the unit-sample response (recall xi = di) of a five-sample averager defined by

Example 16.39

MA digital filter

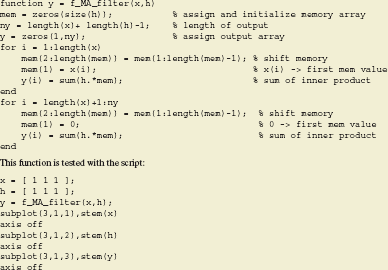

Figure 16.37 shows the Matlab function that implements an MA digital filter, and a simple program that tests the function.

Figure 16.37

Matlab script that generates the output of an MA digital filter when input x and h are specified.
