The wheel is rigidly attached to gear A, which is in mesh with gear racks D and E. If the...

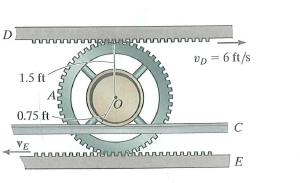

The wheel is rigidly attached to gear A, which is in mesh with gear racks D and E. If the racks have a velocity of υD = 6 ft/s and υE = 10 ft/s, show that it is necessary for the wheel to slip on the fixed track C. Also find the angular velocity of the gear and the velocity of its center O.
