(Financial: the Tax class) Programming Exercise 7.12 writes a program for computing taxe...

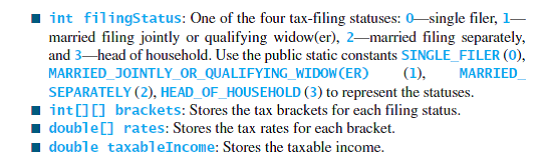

(Financial: the Tax class) Programming Exercise 7.12 writes a program for computing taxes using arrays. Design a class named Tax to contain the following instance data fields:

Provide the get and set methods for each data field and the getTax() method that returns the tax. Also provide a no-arg constructor and the constructor

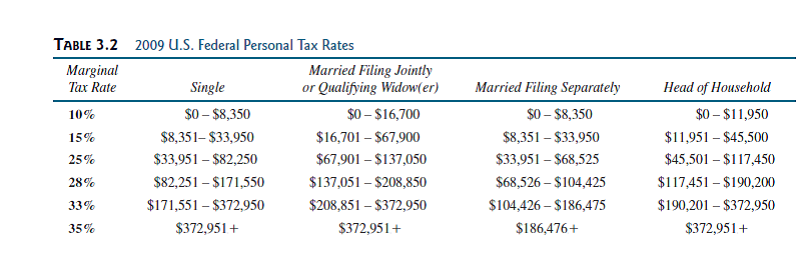

Draw the UML diagram for the class and then implement the class. Write a test program that uses the Tax class to print the 2001 and 2009 tax tables for taxable income from $50,000 to $60,000 with intervals of $1,000 for all four statuses. The tax rates for the year 2009 were given in Table 3.2. The tax rates for 2001 are shown in Table 10.1.

Ref prb:

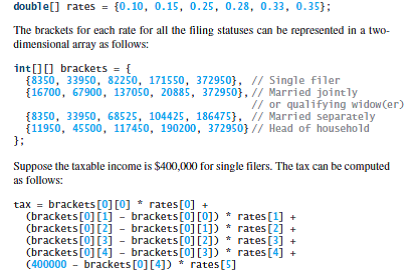

(Financial application: compute tax) Rewrite Listing 3.6, ComputeTax.java, using arrays. For each filing status, there are six tax rates. Each rate is applied to a certain amount of taxable income. For example, from the taxable income of $400,000 for a single filer, $8,350 is taxed at 10%, (33,950 – 8,350) at 15%, (82,250 – 33,950) at 25%, (171,550 – 82,550) at 28%, (372,550 – 82,250) at 33%, and (400,000 – 372,950) at 36%. The six rates are the same for all filing statuses, which can be represented in the following array:
