BOX CONSTRUCTION

Rectangular objects are easily drawn using box construction, in which you imagine the object to be enclosed in a rectangular box whose sides coincide with the main faces of the object.

Sketch the object shown in two views by imagining it is enclosed in a construction box.

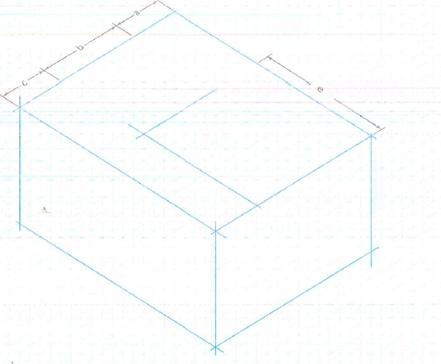

• A construction box and distancesa, h, c, d, e, and/have been blocked in for you.

---

• Refer to the given views and finish constructing the features of the object.

---

• Darken your final lines.
