Problem

a. Determine the Thevénin equivalent circuit for the network external to the resistor R in...

a. Determine the Thevénin equivalent circuit for the network external to the resistor R in Fig. 1.
b. Find the current through the resistor R if its value is 20 Ω, 50 Ω, and 100 Ω.
c. Without having the Thévenin equivalent circuit, what would you have to do to find the current through the resistor R for all the values of part (b)?

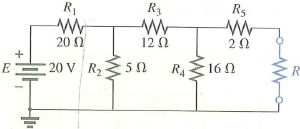

FIG. 1
