Tic-Tac-Toe Simulator

Create a JavaFX application that simulates a game of tic-tac-toe. Figure 14-54 shows an example of the application’s GUI. The window shown in the figure uses nine ImageView components to display the Xs and Os. (You will find images for the X and the O in the book’s Student Sample Files.)

The application should use a two-dimensional int array to simulate the game board in memory. When the user clicks the New Game button, the application should step through the array, storing a random number in the range of 0 through 1 in each element. The number 0 represents the letter O, and the number 1 represents the letter X. The application’s window should then be updated to display the game board. The application should display a message indicating whether player X won, player Y won, or the game was a tie.

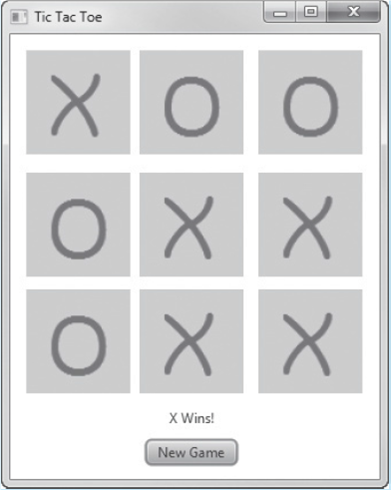

Figure 14-54 The Tic-Tac-Toe application
