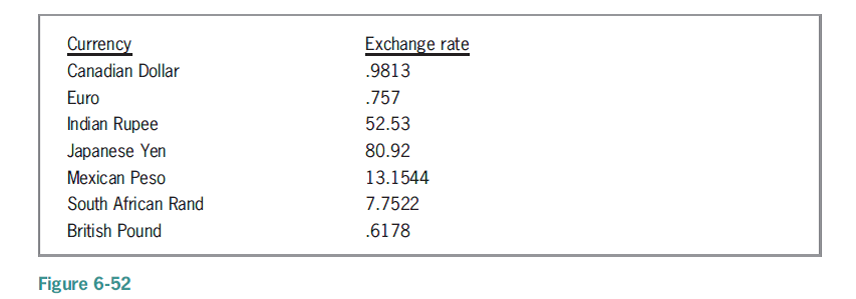

In this exercise, you will create a program that converts U.S. dollars to a different currency. The number of American dollars should always be an integer that is greater than or equal to zero. The currencies and exchange rates are listed in Figure 6-52. The user should be allowed to choose the currency. Hint: Designate a code for each currency and use cout statements to display a menu that lists each code and its corresponding currency.

a. Create an IPO chart for the problem, and then desk-check the algorithm nine times. For the first seven desk-checks, convert 10 American dollars to each of the seven different currencies. For the eighth desk-check, test the algorithm using –3 as the number of American dollars. For the last desk-check, test the algorithm using an invalid currency code.

b. List the input, processing, and output items, as well as the algorithm, in a chart similar to the one shown earlier in Figure 6-47. Then code the algorithm into a program.

c. Desk-check the program using the same data used to desk-check the algorithm.

d. If necessary, create a new project named Advanced17 Project and save it in the Cpp7\ Chap06 folder. Enter your C++ instructions into a source file named Advanced17.cpp. Also enter appropriate comments and any additional instructions required by the compiler. Display the results in fixed-point notation with two decimal places.

e. Save and run the program. Test the program using the same data used to desk-check the program.

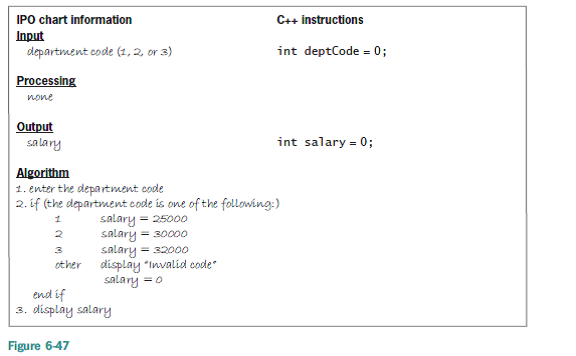

REFERENCE: FIGURE 6-47
