Solutions For Digital Design Chapter 6 Problem 28P

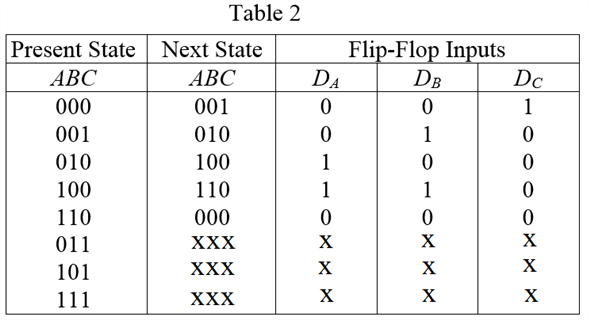

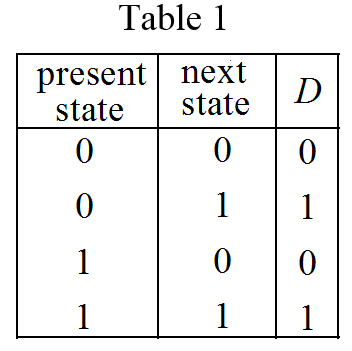

The following is the state transition table for required counter.

From Table 2, the expressions for flip-flop inputs are,

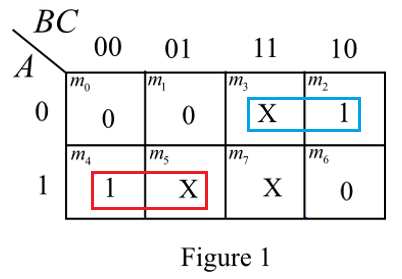

Draw the Karnaugh map for flip-flop input.

From Figure 1, the flip-flop input equation for is,

Draw the Karnaugh map for flip-flop input.

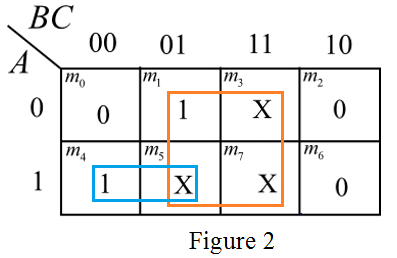

From Figure 2, the flip-flop input equation for is,

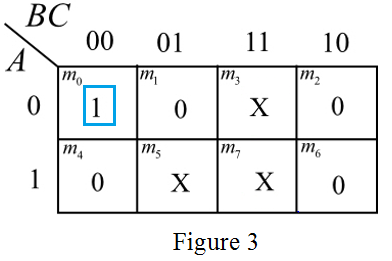

Draw the Karnaugh map for flip-flop input.

From Figure 3, the flip-flop input equation for is,

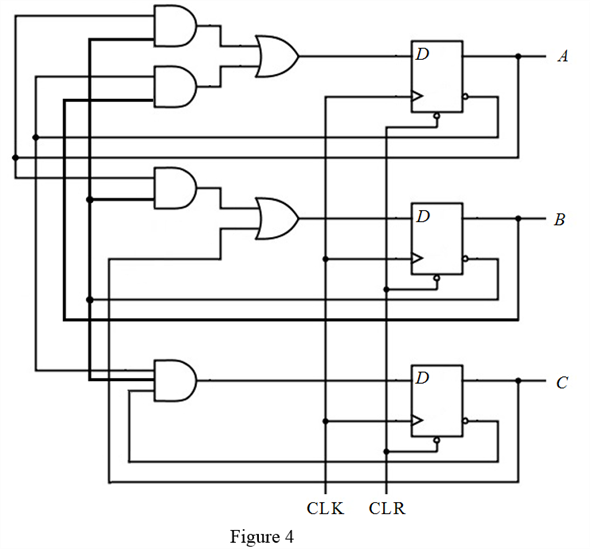

Draw the logic diagram for the required counter.

Thus, the required logic diagram of the counter is drawn as shown in Figure 4.

(c)

Design a counter with the repeated binary sequence of 0,2,4,6,8.

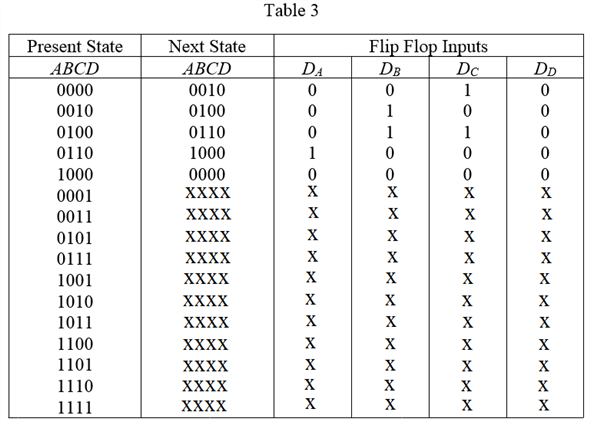

The following is the state transition table for required counter.

From Table 3, the expressions for flip-flop inputs are,

Draw the Karnaugh map for flip-flop input.

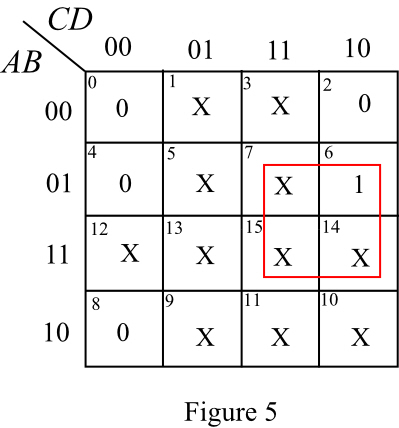

From Figure 5, the flip-flop input equation for is,

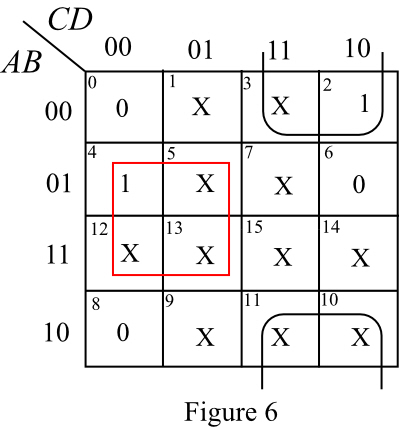

From Figure 6, the flip-flop input equation for is,

Draw the Karnaugh map for flip-flop input.

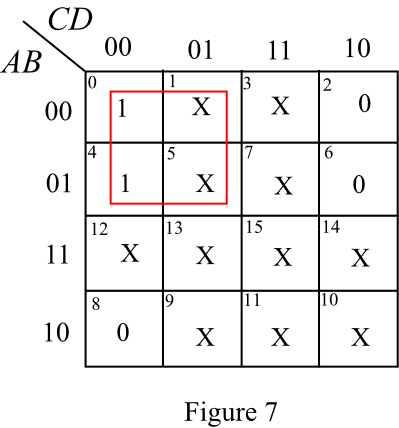

From Figure 7, the flip-flop input equation for is,

Draw the Karnaugh map for flip-flop input.

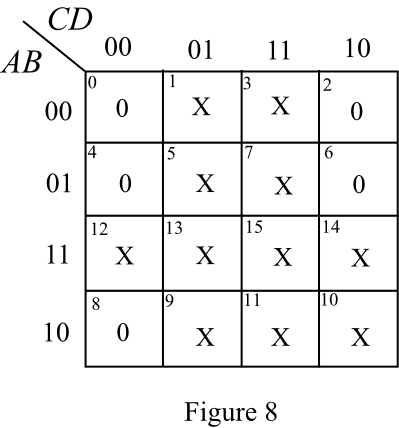

From Figure 8, the flip-flop input equation for is,

(d)

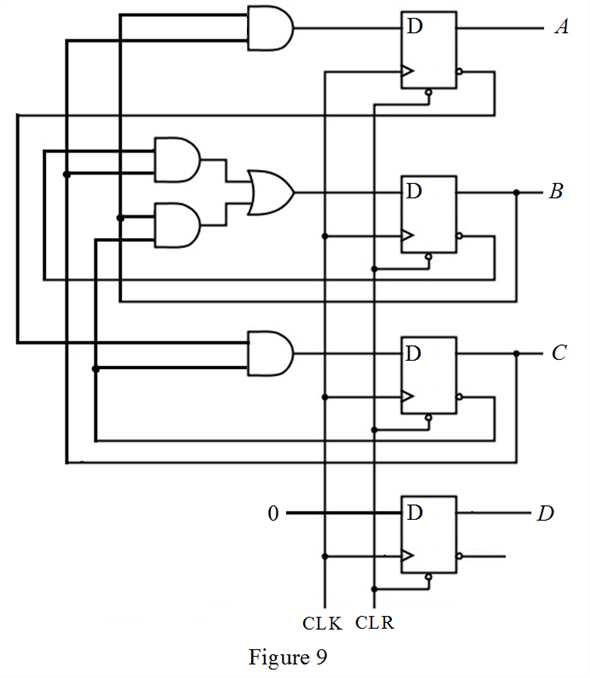

Draw the logic diagram for the required counter.

Thus, the logic diagram for the required counter is drawn as shown in Figure 9.
